Stone line

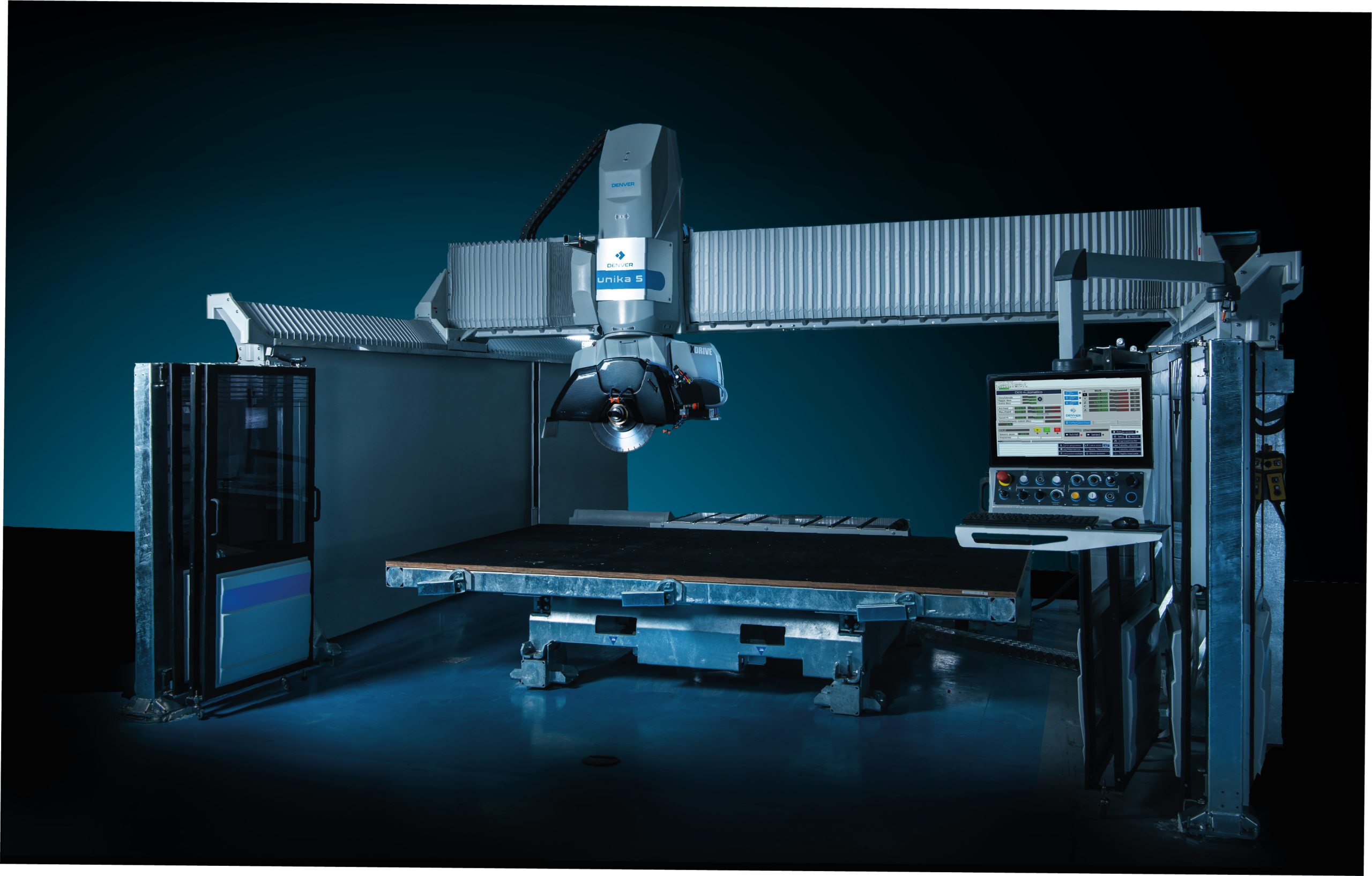

Unika 5 Solid

5 AXES X:370 Y:3800 Z:700

Interested? Let’s talk

THE STATS

Unika 5 Solidmain data of the machine

Work Area

X 3700 mm – 145"
Y 3800 mm – 149"
Z 700 mm – 27"

A axis

0° – 90°

Motor power

Kw 13 ÷ 34,5 – Hp 17,5 ÷ 46,5
800 ÷ 5000 rpm

Disc diameter

625 ÷ 1000 mm
24 ÷ 39"

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

Read all the news

Touch Probes

For auto measuring the slab thickness and auto detection of blade diameter / lenght of the tool, to allow continuos…

Single Table Fab-Center Configuration

Triple benefit from a powerful blend of CNC bridge saw and working center designed to deliver value at its best,…

Logitouch Parametric Interface powered by DDX

To run semi and fully automatic cut cycles and profiling, including DXF importability.

Laser Point

Laser point to ease the location and storage of the origin position and of the work piece dimensions and position,…

Cutting Shaping and Polishing

Control Panel

Control panel with 21” colored touch screen and ergonomic keyboard design offering max efficiency and intuitive controls.

SKEMA

Processing

What you can do with this machine

Ask for more

Working with Lathe

Tilted cuts up to 90

Solid Blocks Processing

Surface Processing for Leathering and Honing

Multidirectional and Curved Cuts

Combo processing with disc and mills drills

5-Axis Disc Mill Carving

3D Shaping with Disc

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

Vacuum System

With 2 independent cups, for cut cycle optimization through automatic placement of the pieces.

Rodding Unit for Undercut at Required Depth

For carrying out cut reinforcements and drip cuts in fully automatic mode.

Lathe

Standard module or Interpolated unit for advanced profiling of columns, statues and capitals.

Disc Motor with Front Tool Attachment

Suitable for complex cutting and milling with disc and bit tools.

Auto Tool Changer System

ISO40 electrospindle and tools magazine to carry out fully automatic management of working cycles.

SKEMA

Technologies

What you can do with this machine

Ask for more

On Board Photo Software Package with Camera

For auto workpiece contouring, measuring and vein matching.

Cad-Cam software package for tridimensional processings

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Dove posso trovare le schede tecniche complete dei prodotti?

Le schede tecniche di tutti i modelli sono disponibili nella sezione Prodotti del sito. Per documentazione dettagliata o disegni tecnici puoi anche contattare il nostro ufficio commerciale.


I software CAD-CAM sono inclusi nella fornitura della macchina?

Sì, le macchine Denver sono fornite con il software CAD-CAM dedicato già configurato. La licenza, la formazione all’uso e gli aggiornamenti sono inclusi nel pacchetto di fornitura standard.

Get in touch

Tell us what you need to process and we will help you configure the right Skema solution.
