Stone line

Quota Pro Stone 3350

3 AXES X:3350 Y:1650 Z:520

Interested? Let’s talk

THE STATS

Quota Pro Stone 3350main data of the machine

Work Area

X 3350 mm – 132"
Y 1650 mm – 65"
Z 520 mm – 20,4"

C axis

360°

Motor power

Kw 11 – Hp 15 (S6)
0 ÷ 12000 rpm

Weight

4200 kg
9500 lbs

Automatic Tool Change

11 pos.
(opt. 11 pos.)

T axis

0.3°

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

Read all the news

Self Adjusting Aluminum Table

(PATENTED) To ensure planarity longevity and working perfection. Solid surface to ease and freely positioning the suction cups and backstops.

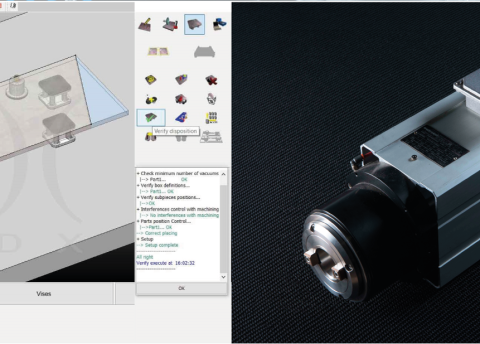

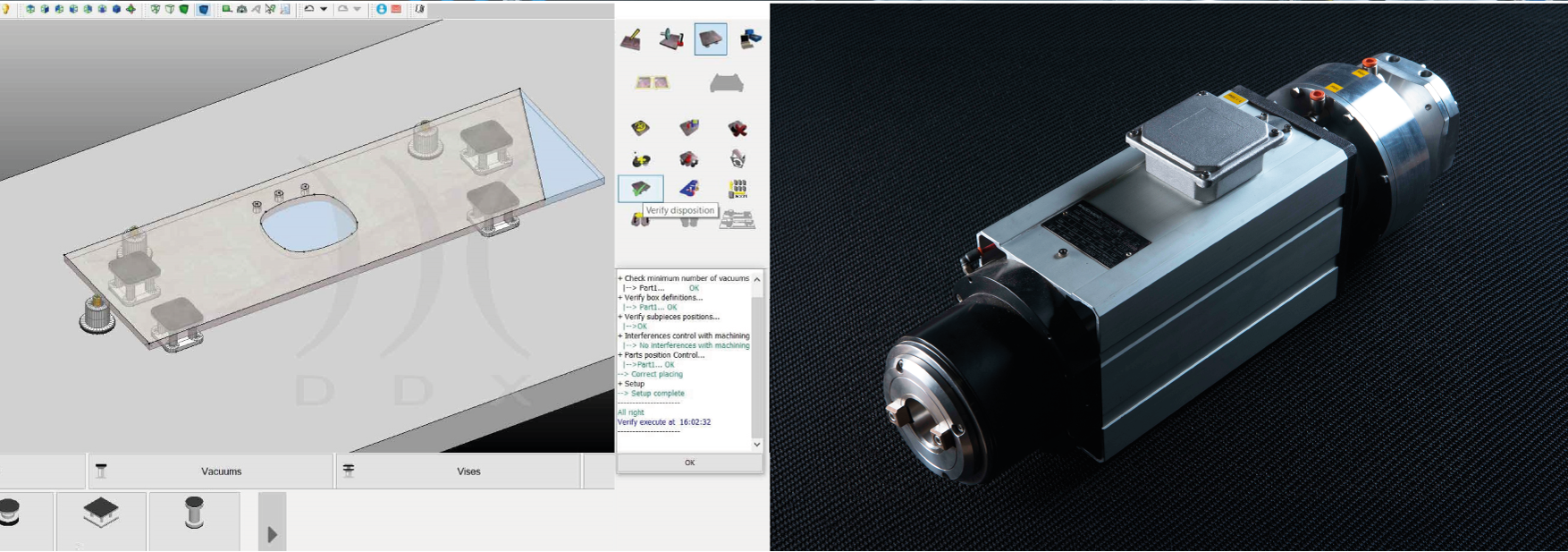

Proven Reliability

Hundreds of references all over the world. The full auto machine processings and parameters are programmable by PROTECH, an advanced…

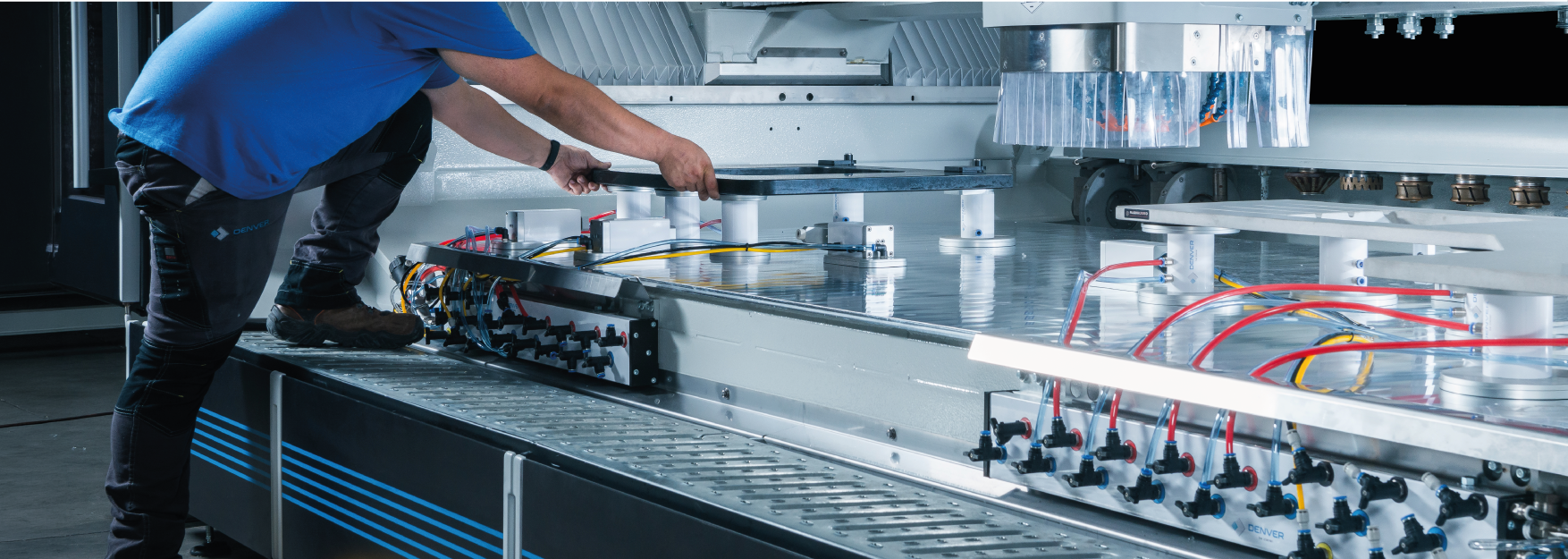

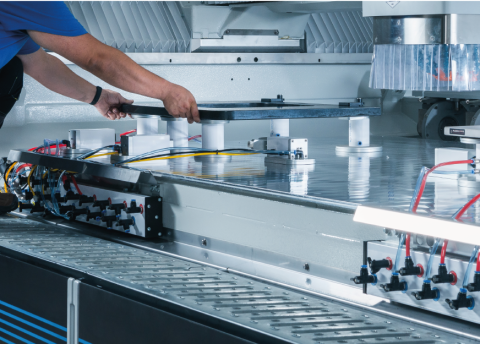

Integrated Walk On Platform

Designed to ensure a safe and comfortable position for the operator during loading, positioning and unloading operations of the workpieces.

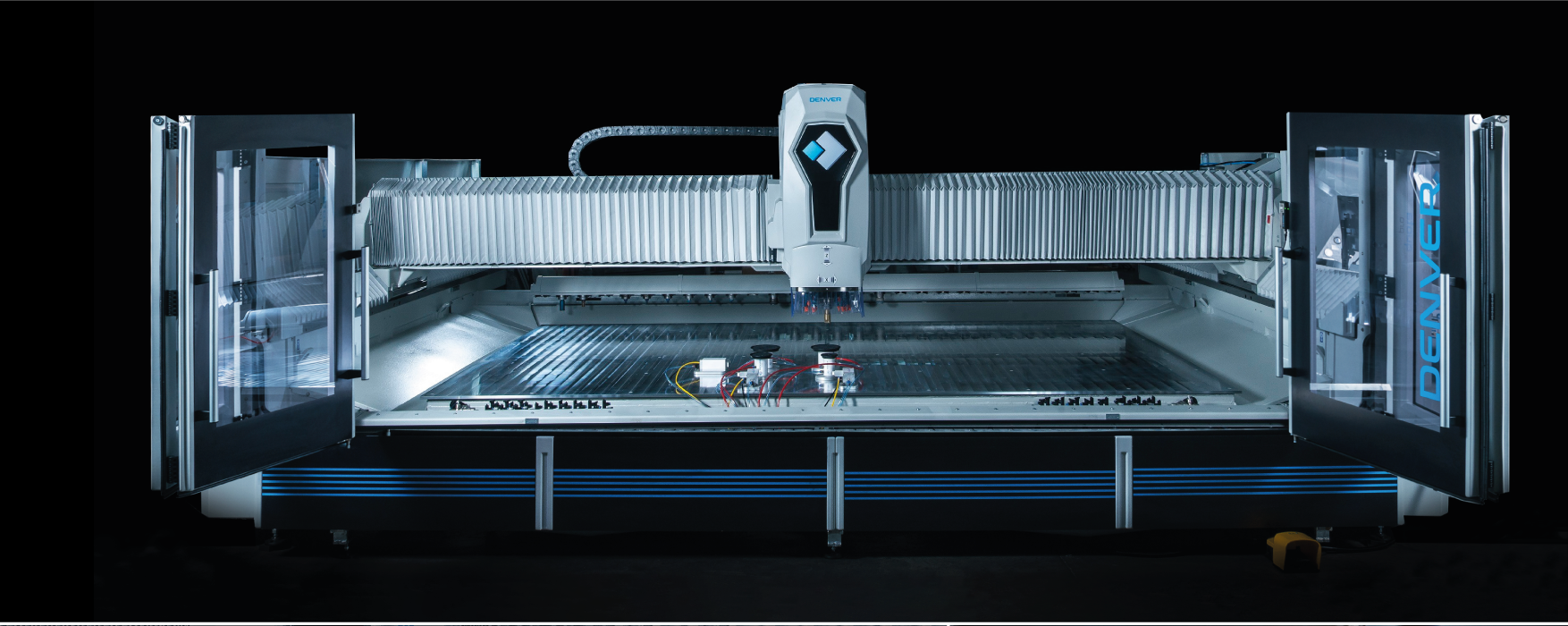

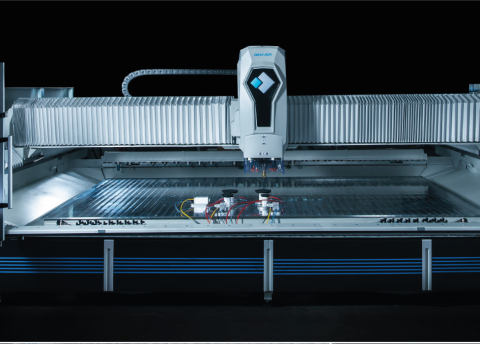

Excellence in Compactness

The various model sizes excellently combine reduced space needs and productivity performance.

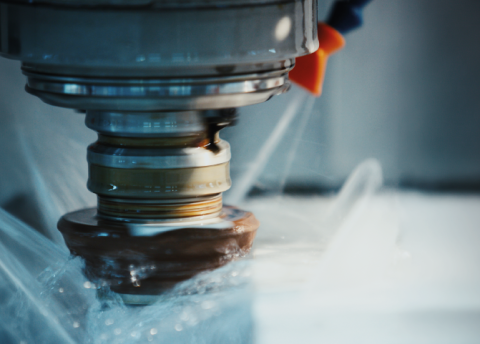

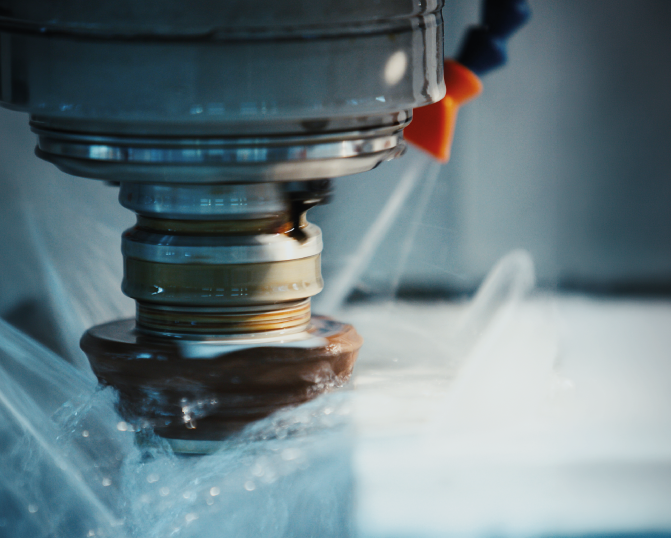

Dynamic and Statistic Tool Wear Control

For the best polishing results.

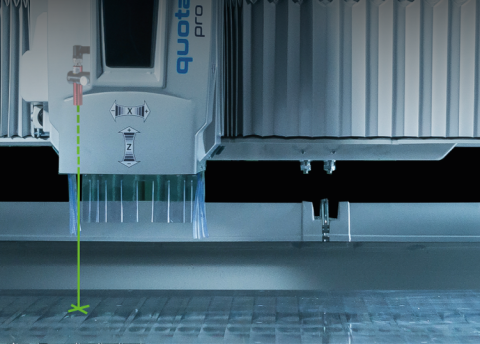

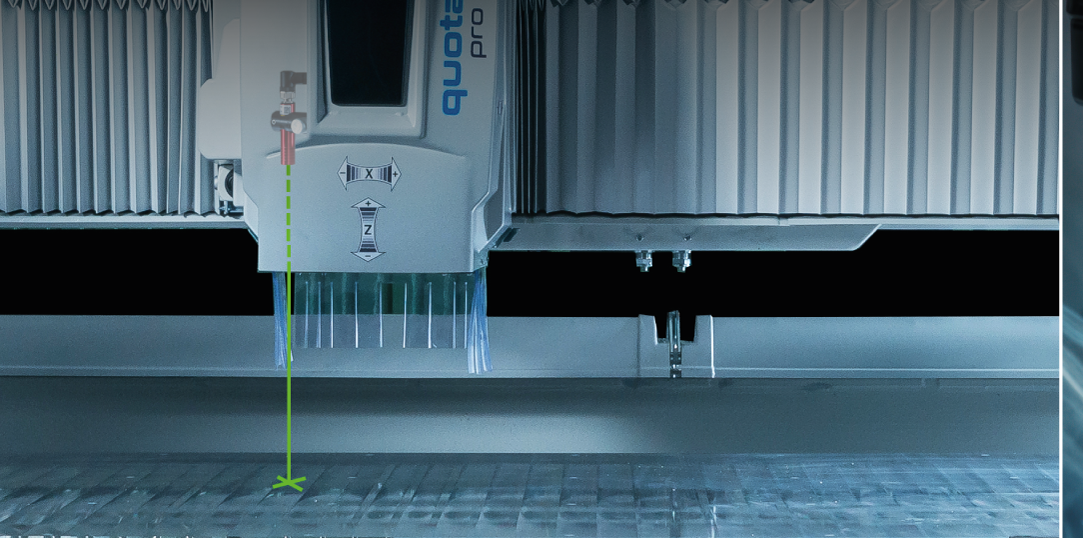

Cross Laser

For origin detection and template digitalizer.

SKEMA

Processing

What you can do with this machine

Ask for more

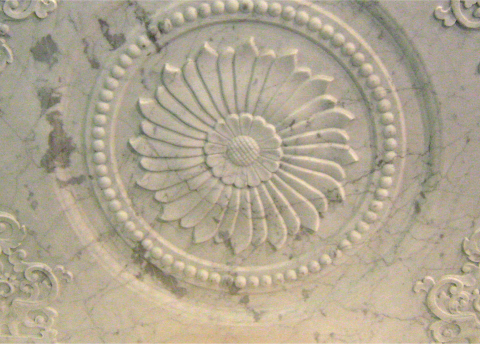

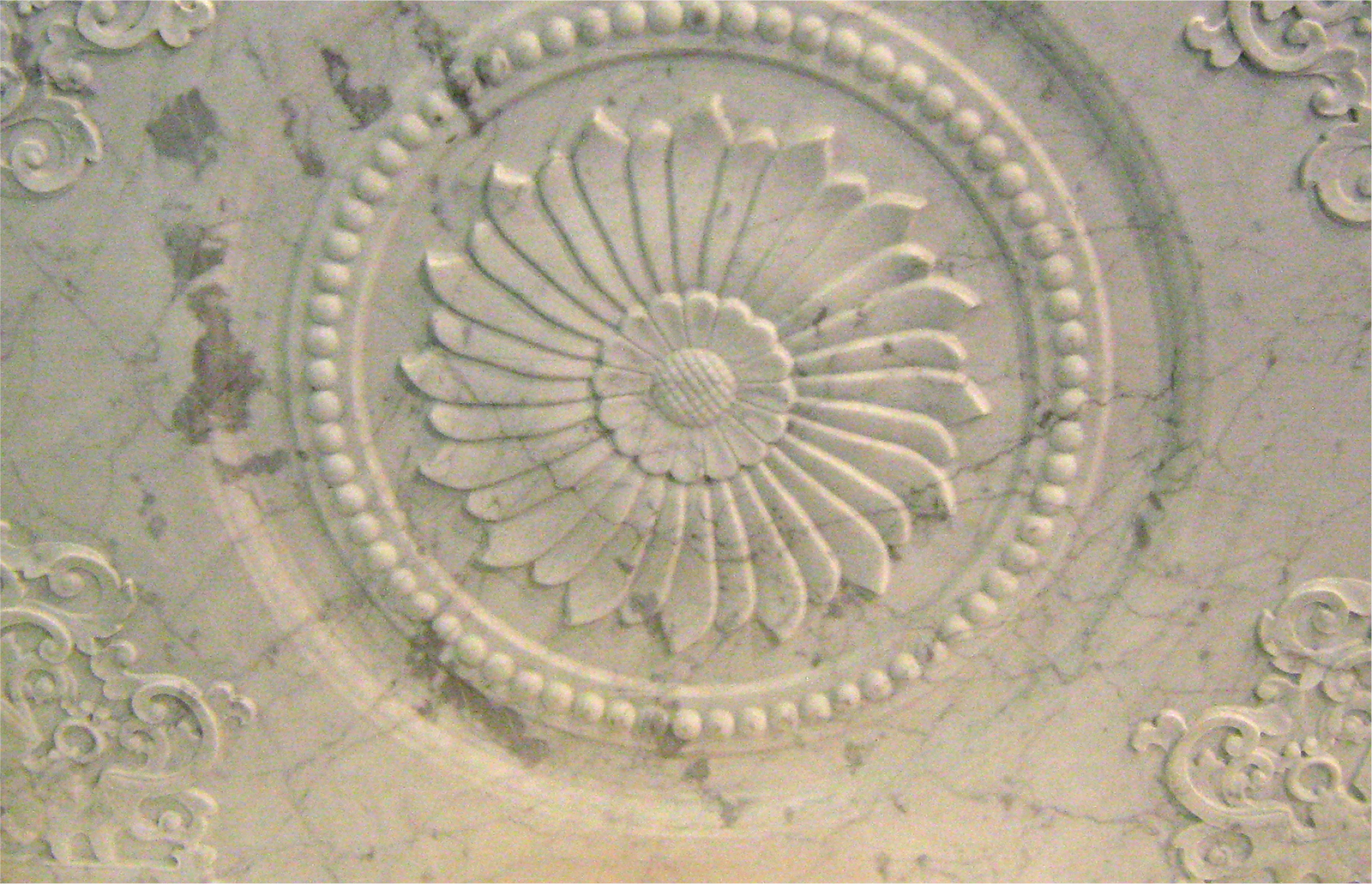

Low High Reliefs

Profiling Polishing

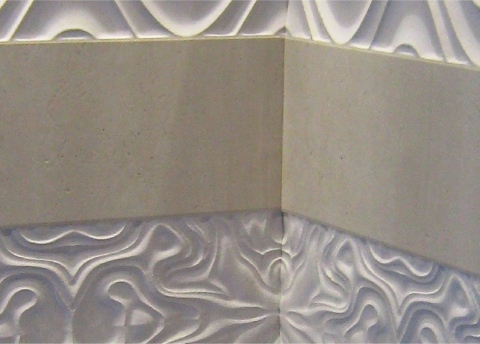

Textures

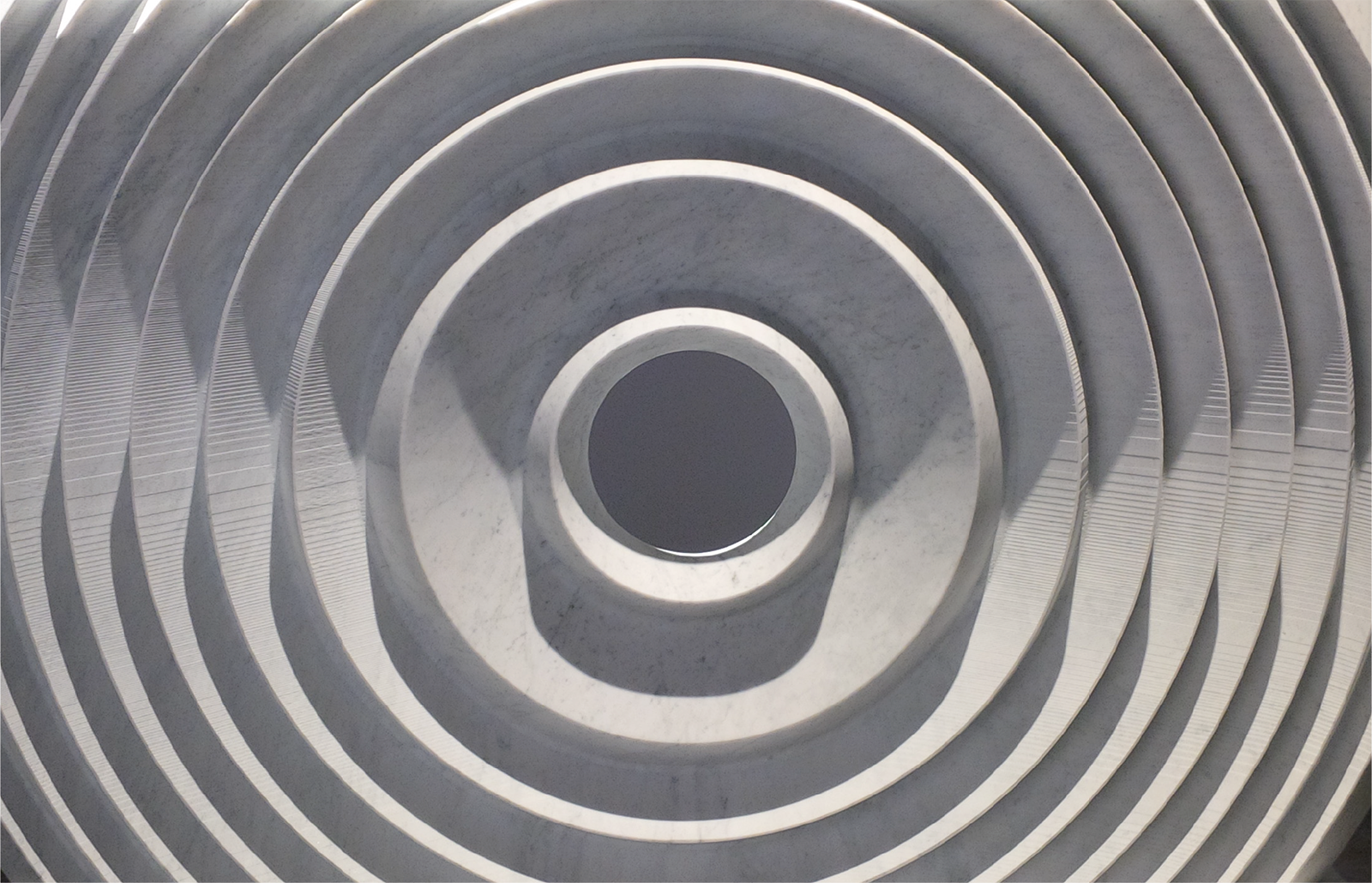

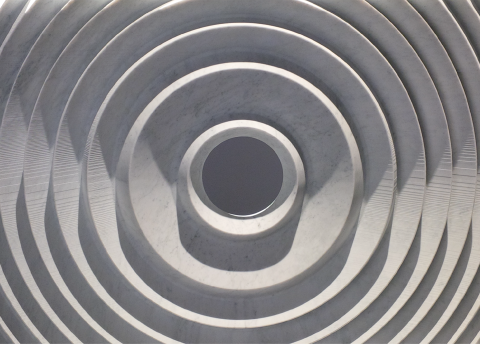

Shaping

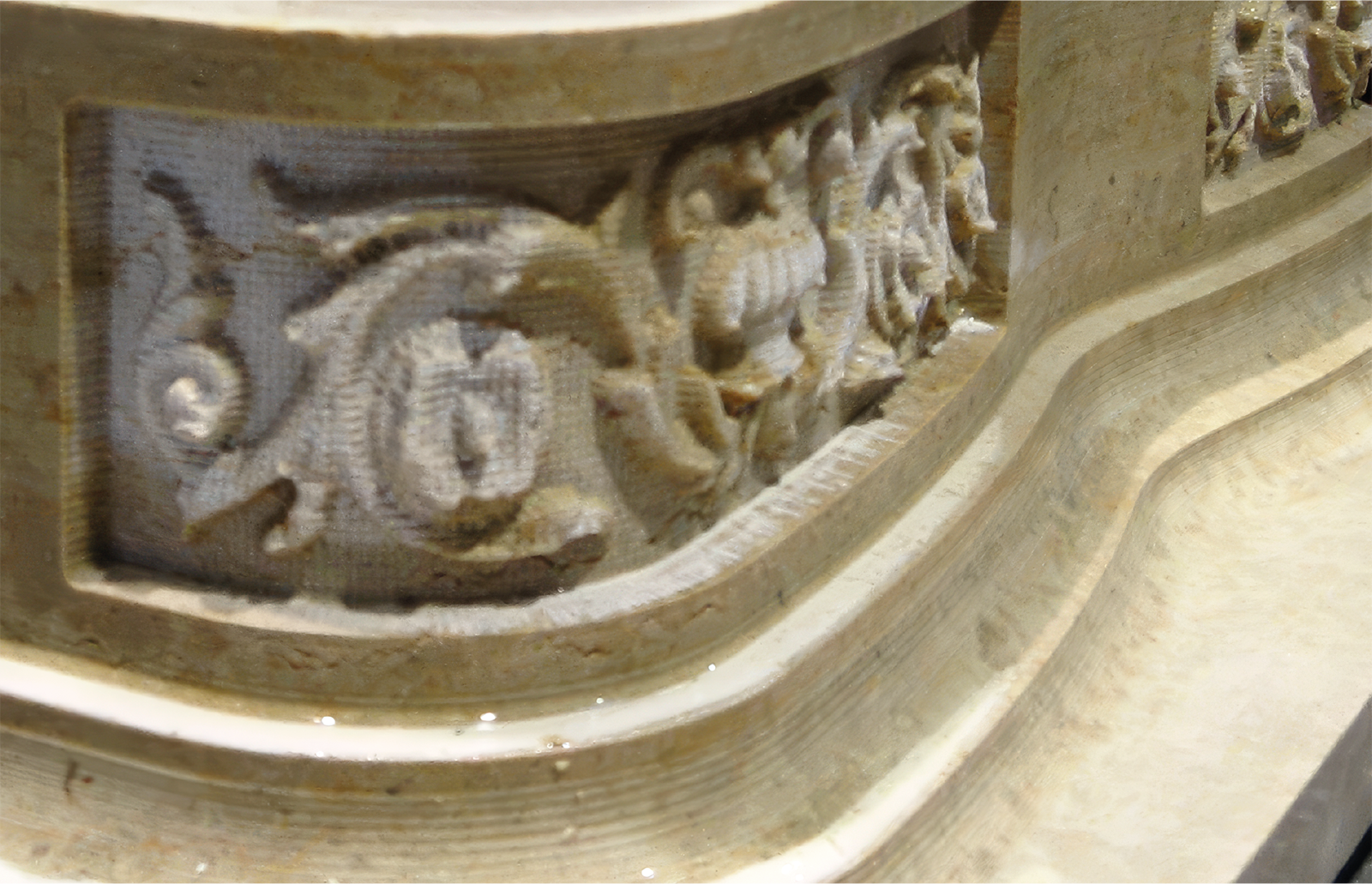

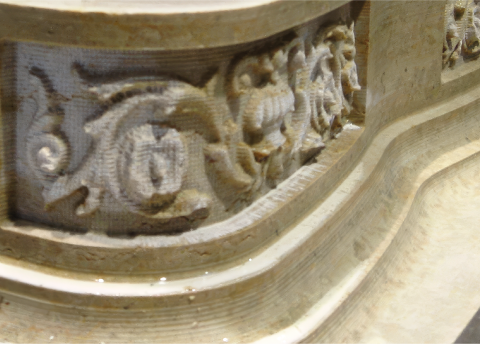

Side Engraving and Writing

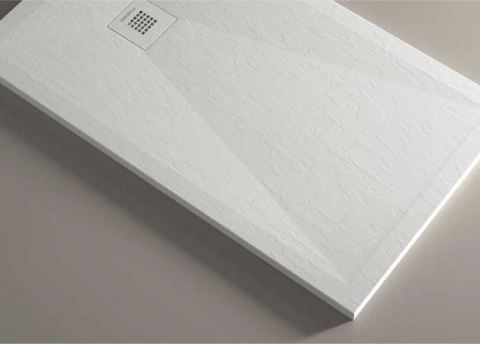

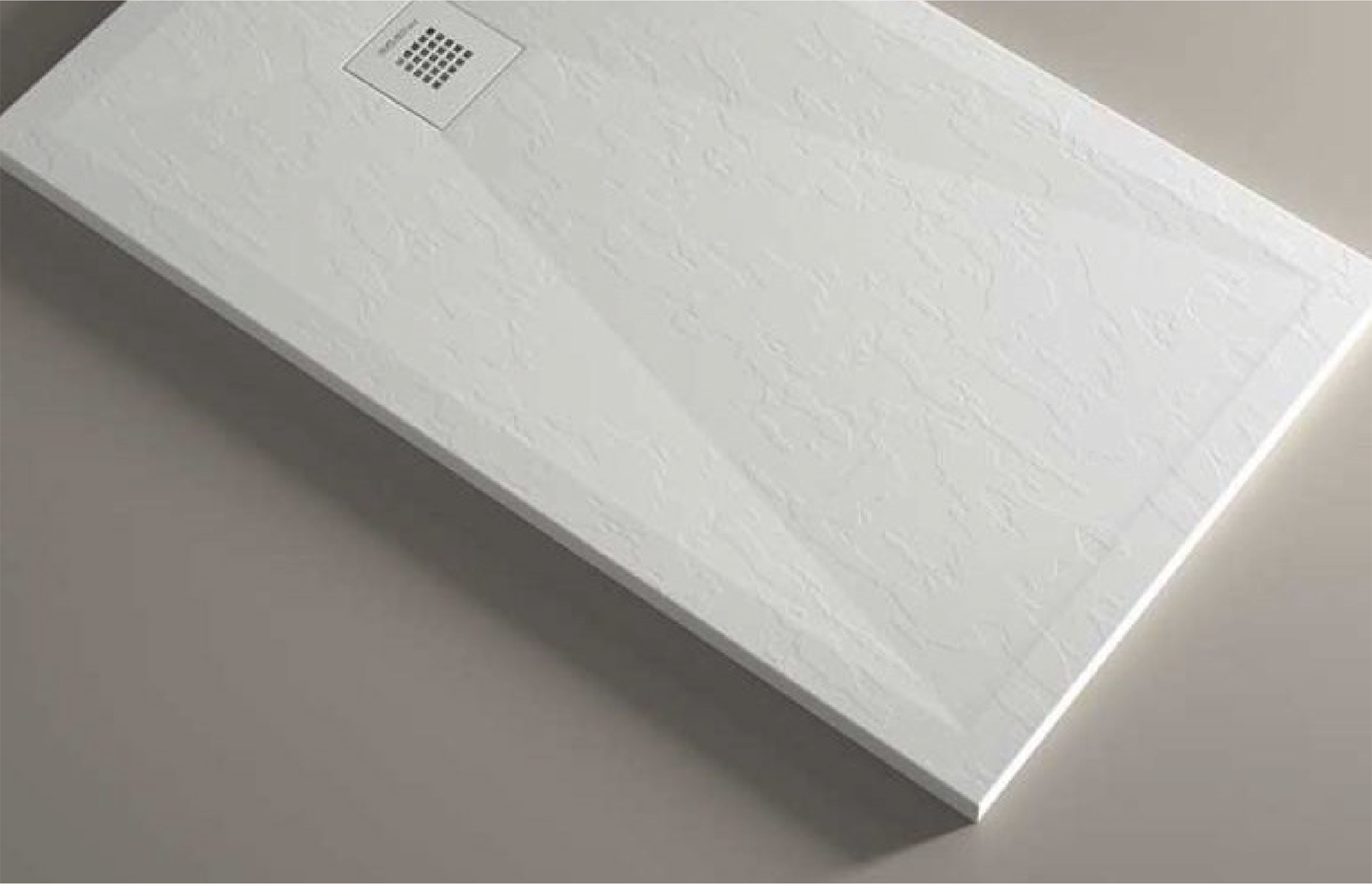

Tapering

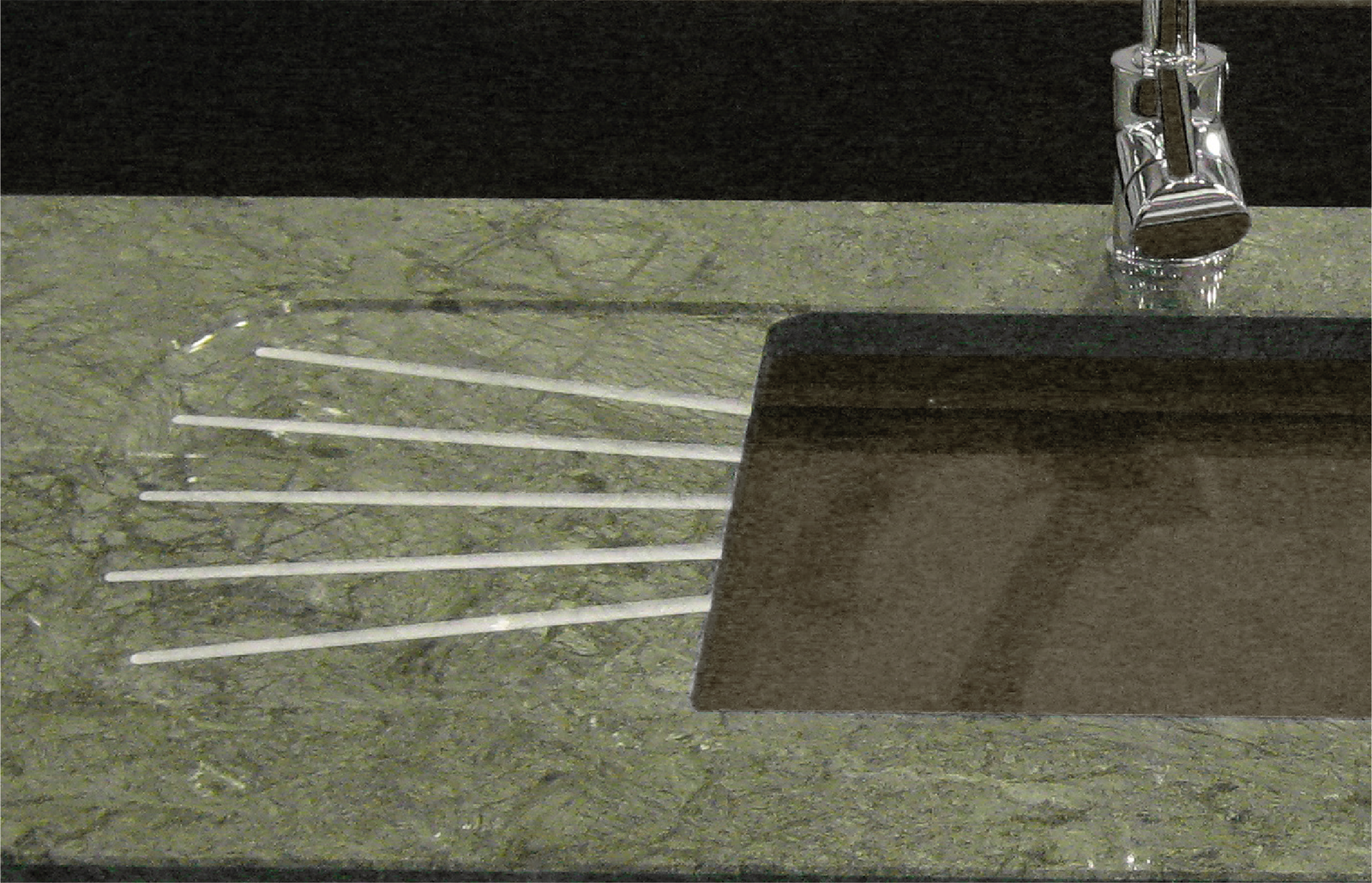

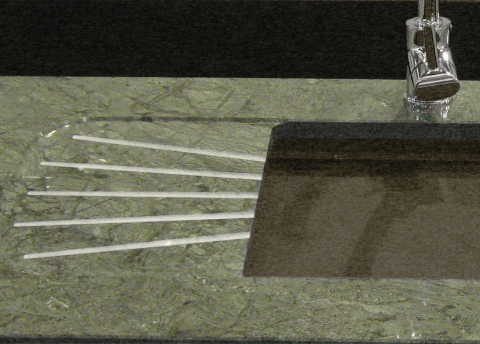

Drain Boards

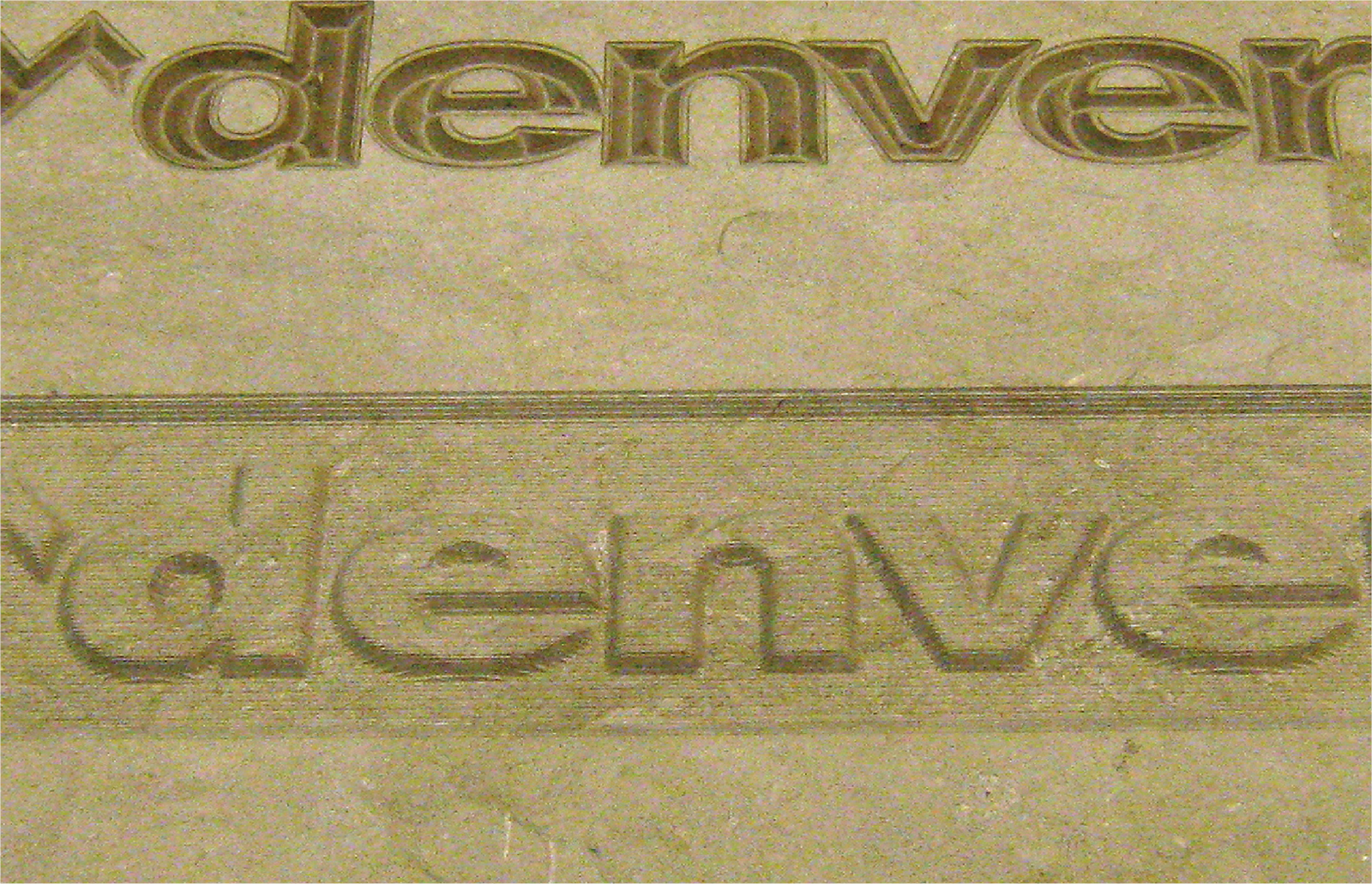

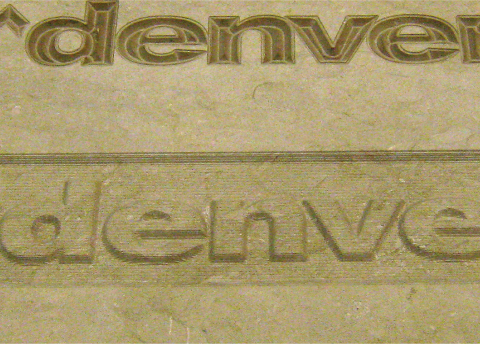

Embossed Writing

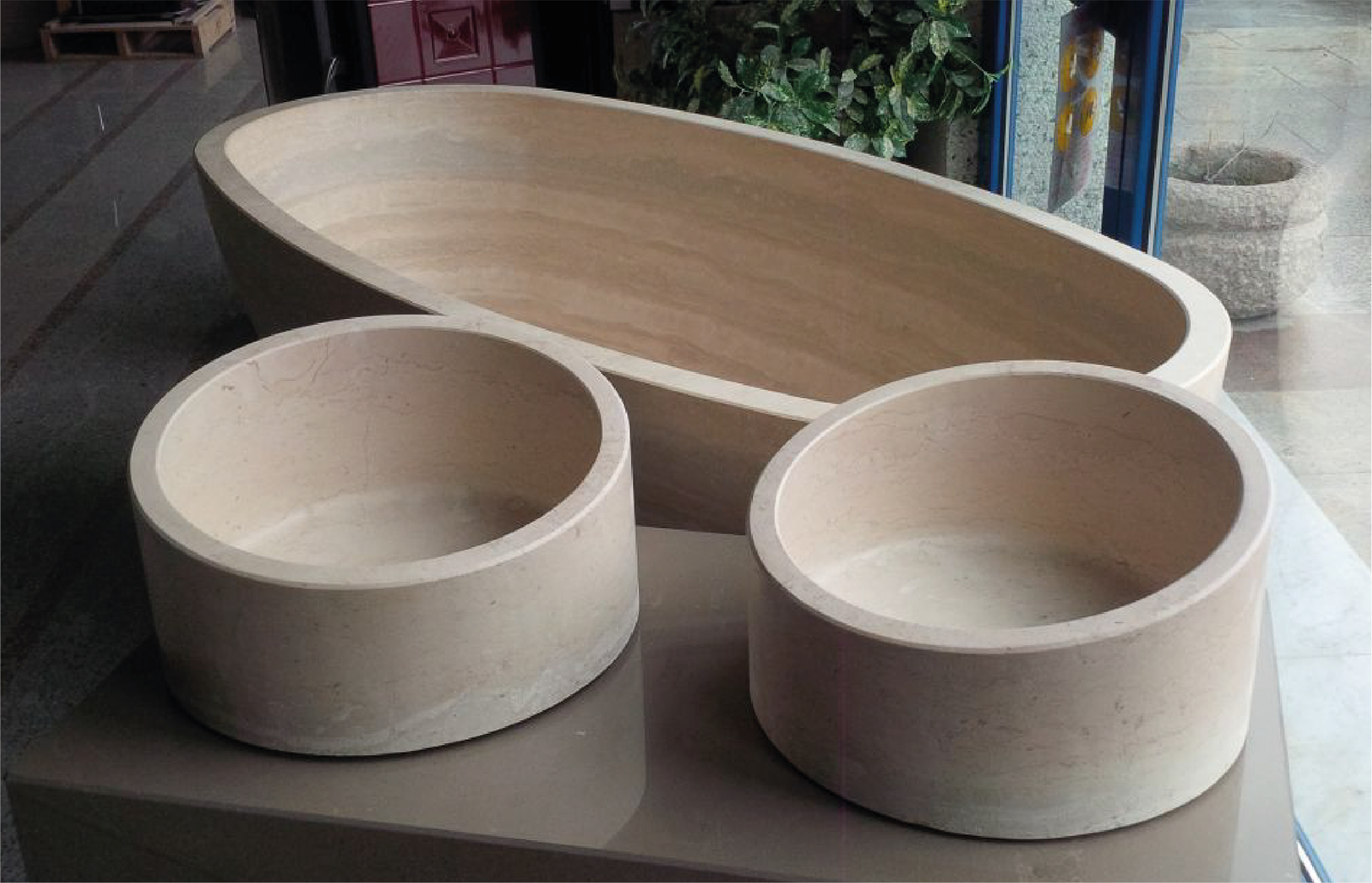

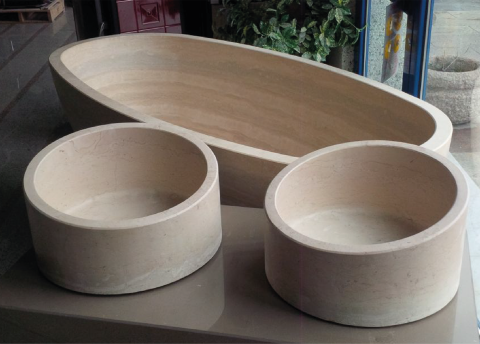

Hollowing

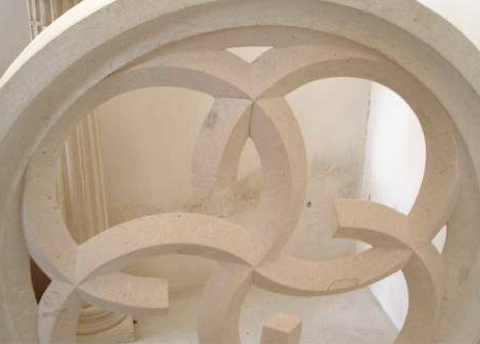

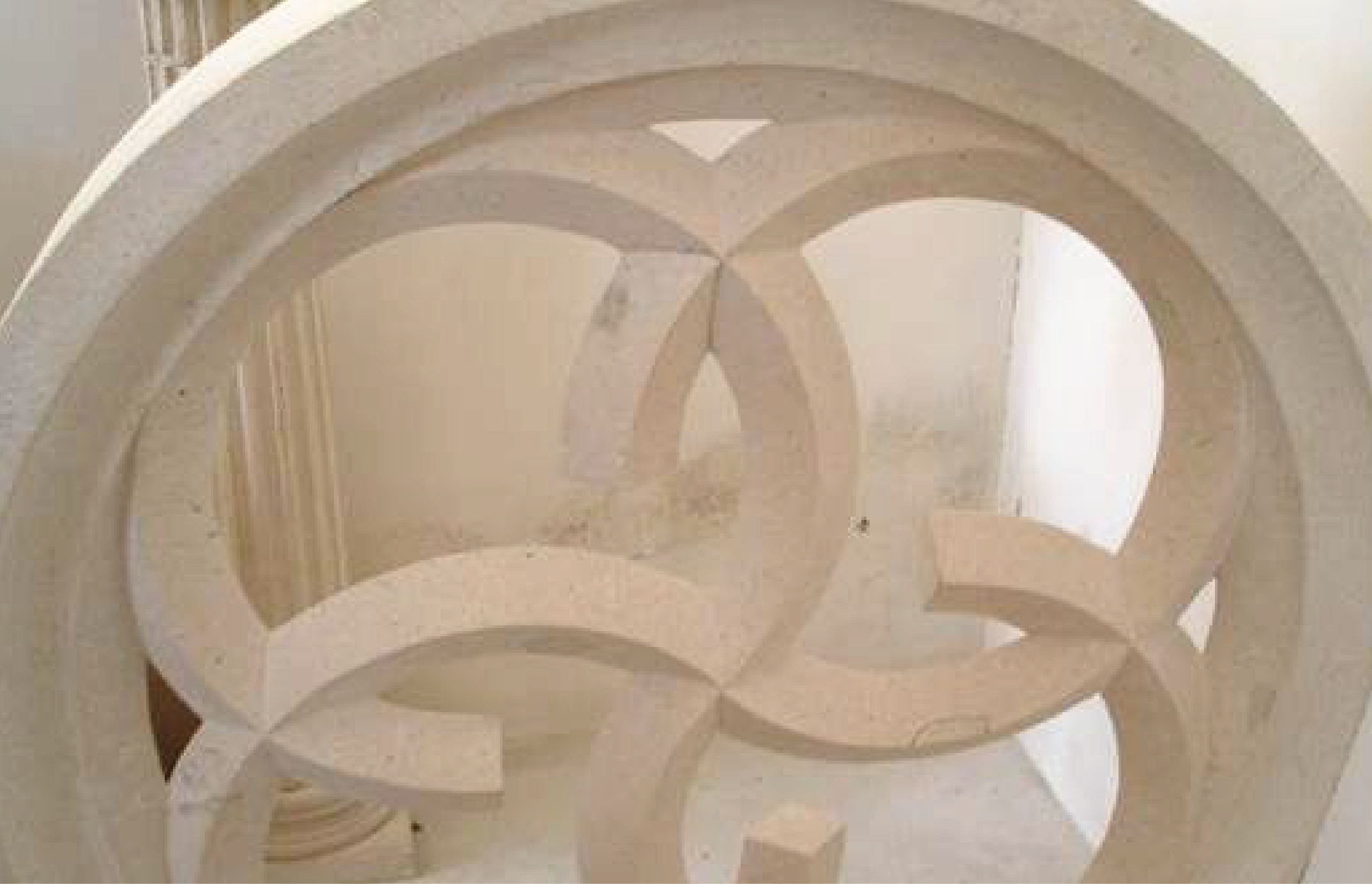

Routing

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

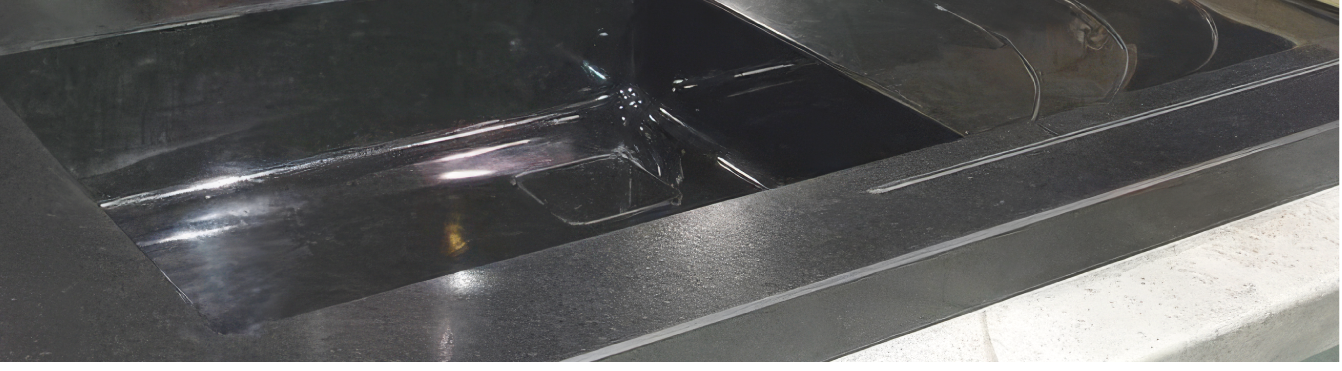

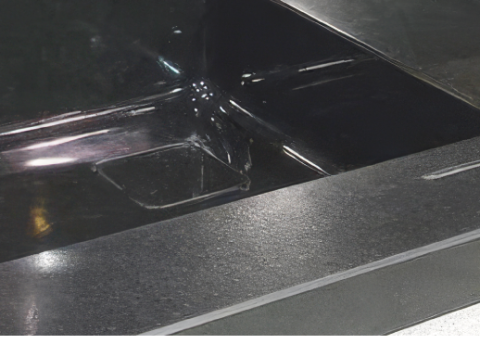

T Axis for Inclined Drain Board

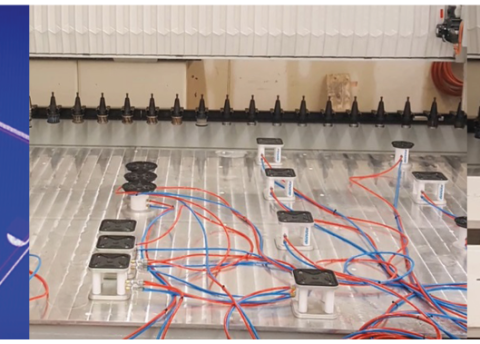

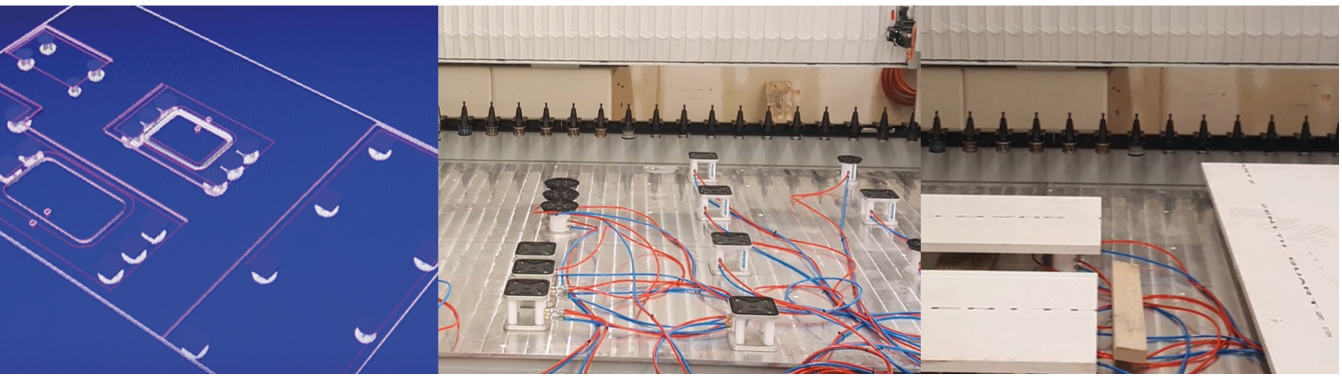

Laser Projector

For worktable set-up.

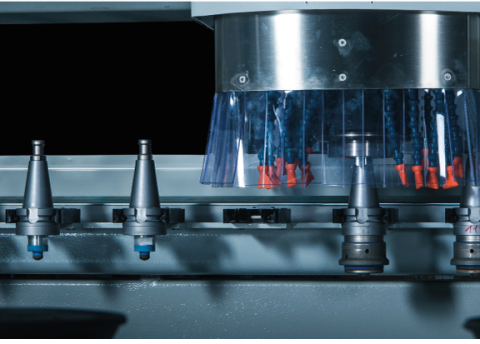

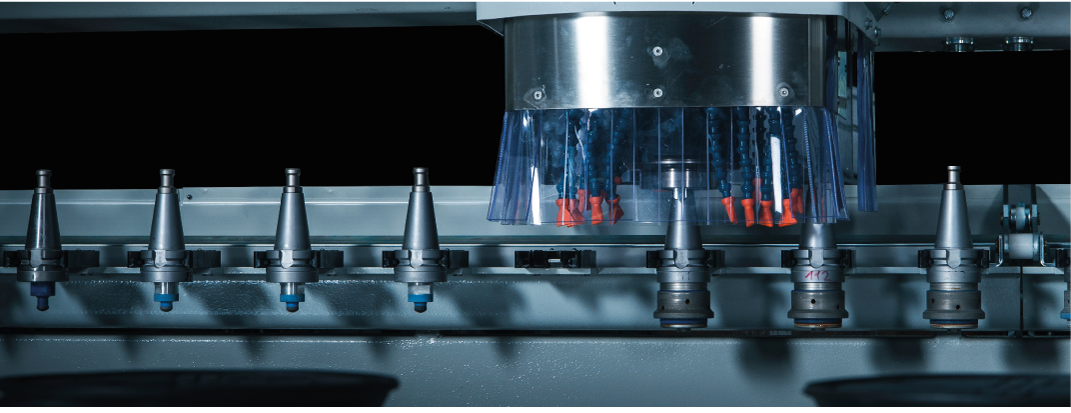

Drill Bit Auto Redressing Station Touch Probes

For auto gauging the piece thickness and diameter / height of the tool.

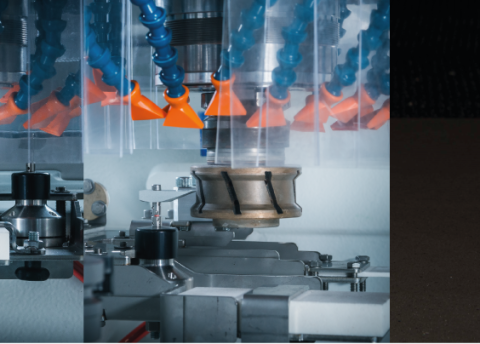

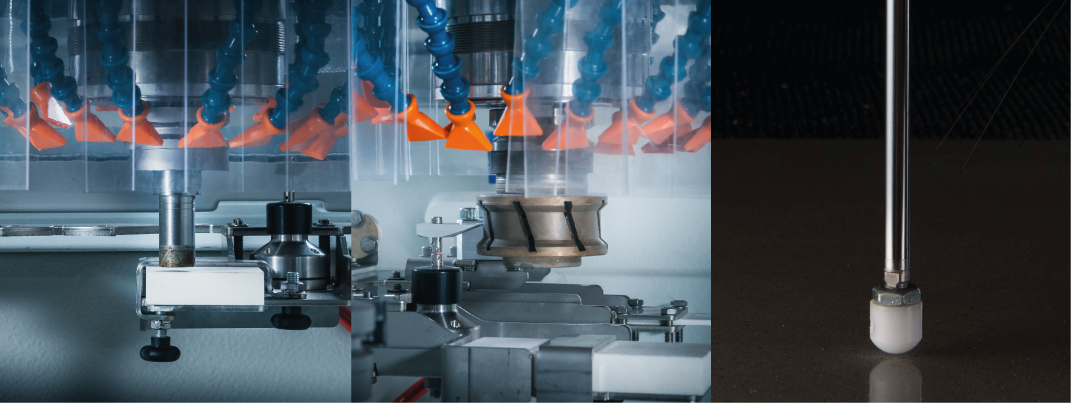

High Density Tool Rack

On the Quota 4200 it is possible to increase the number of tool holders up to a maximum of 40…

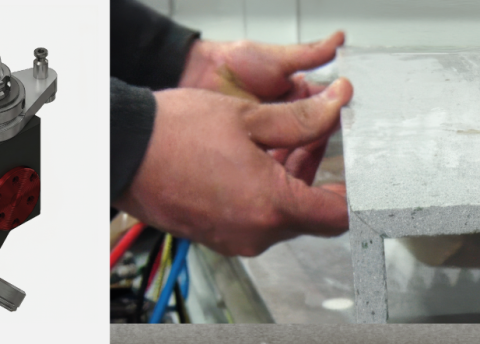

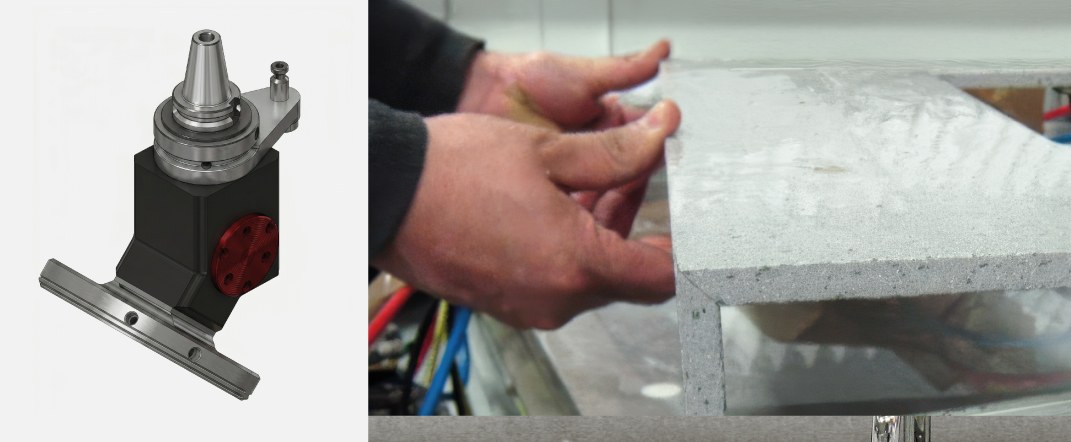

90 Angled Gearbox for Disc

For cutting and grooving.

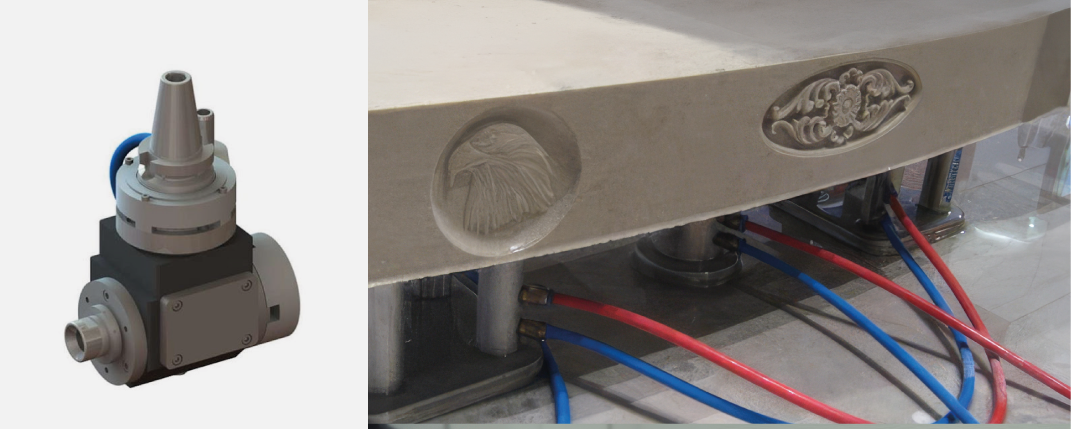

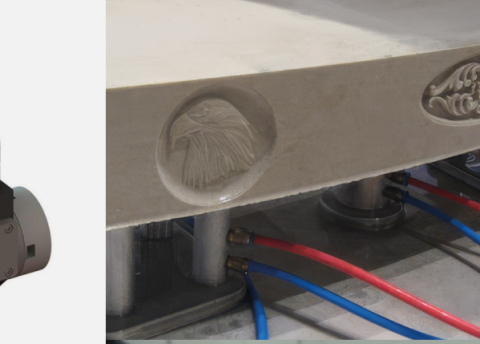

90 Angled Gearbox for Bit Tools

For side engraving, lettering and texturing.

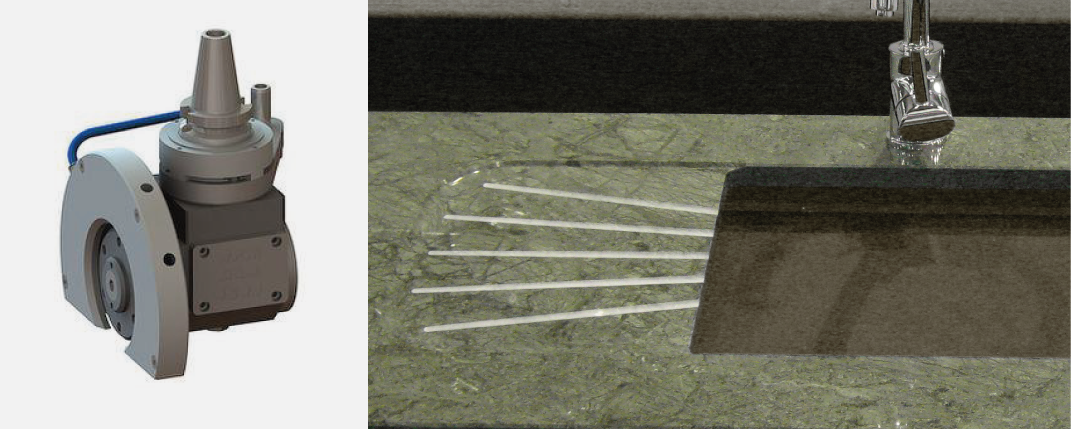

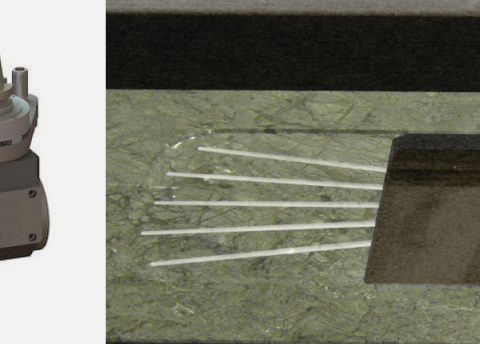

45 Angled Gearbox for Disc

For tilted cuts 45° with disc.

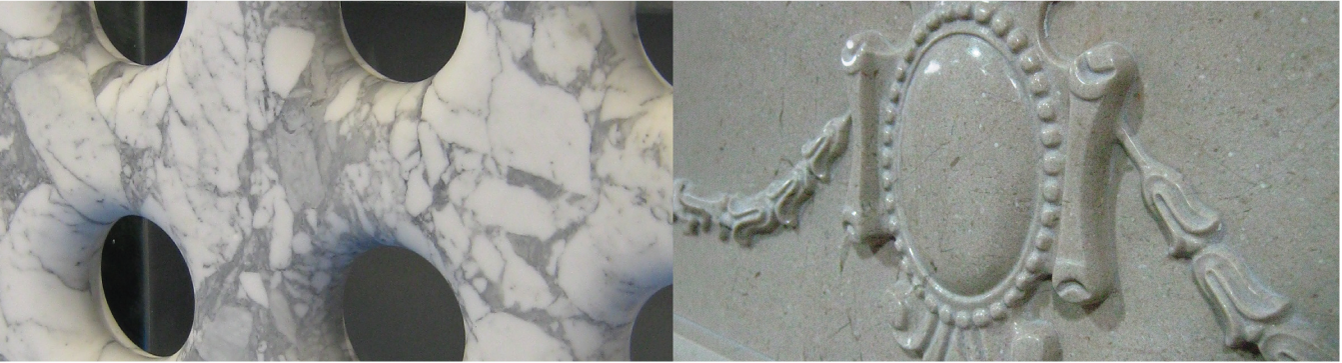

3D Software Package

Set your imagination free!
