Glass line

Quota Pro Glass 3350

3 AXES X:3350 Y:1650 Z:520

Interested? Let’s talk

THE STATS

Quota Pro Glass 3350main data of the machine

Work Area

X 3350 mm – 132"
Y 1650 mm – 65"
Z 520 mm – 20,4"

C axis

360°

Motor power

Kw 11 – Hp 15 (S6)
0 ÷ 12000 rpm

Weight

4200 kg
9500 lbs

Automatic Tool Change

N° 11 – ISO40
+ 11 opt.

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

Read all the news

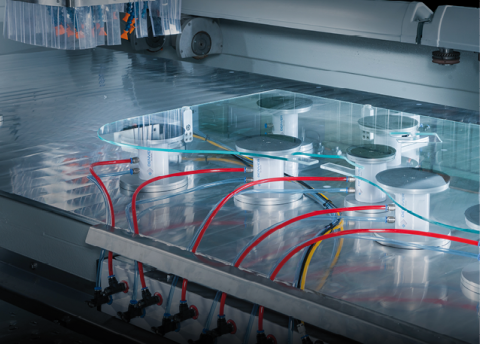

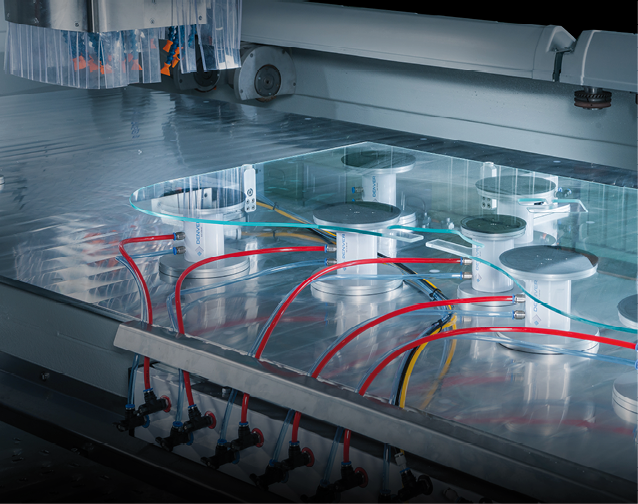

Self-adjusting Aluminum Table

To ensure planarity longevity and working accuracy

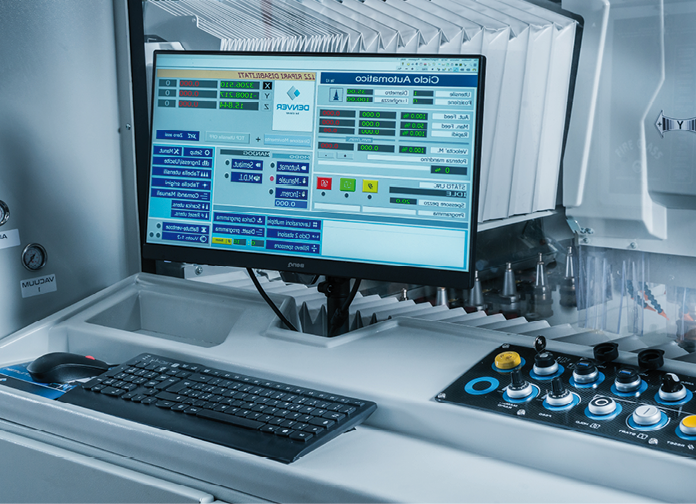

Hardware & Software

The CNC Osai digital Numerical Control and the user-friendly CAD-CAM Protech software powered by DDX (also programmable from remote PC…

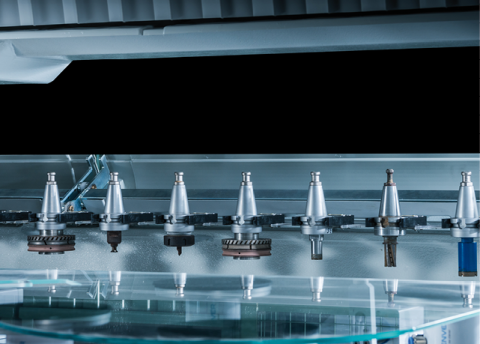

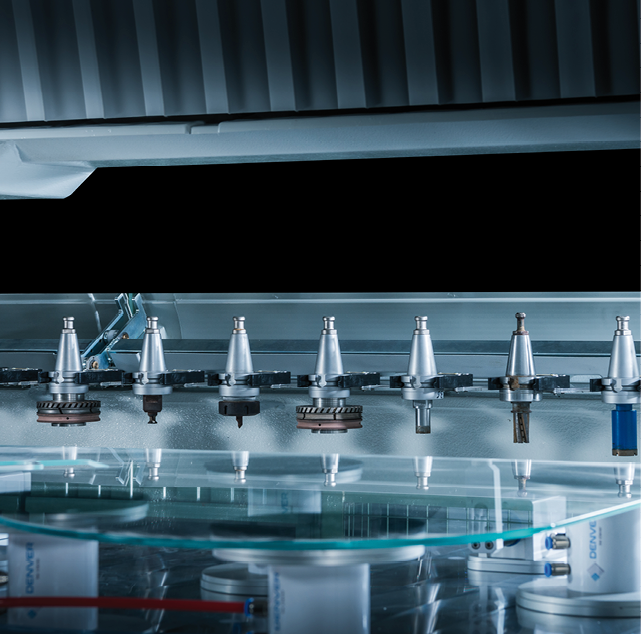

Linear Tool Magazine

– Better accessibility and dependability – Larger working area – Faster tool change – Up to 22 positions on Quota…

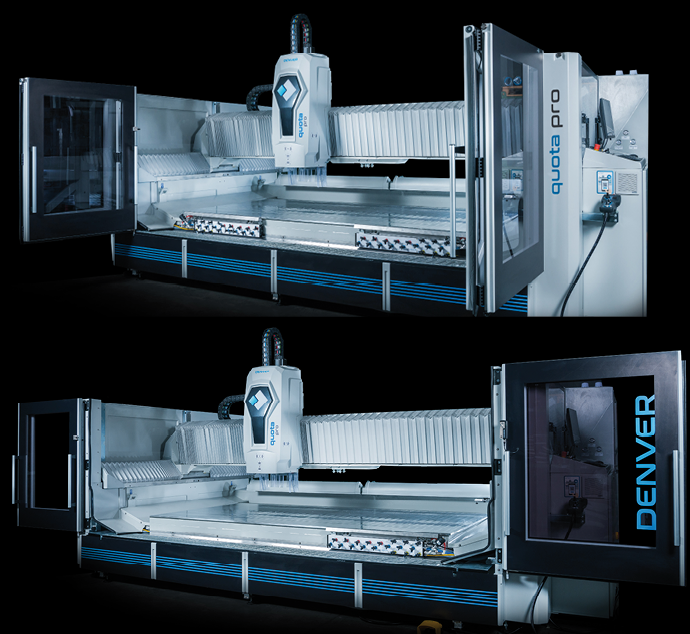

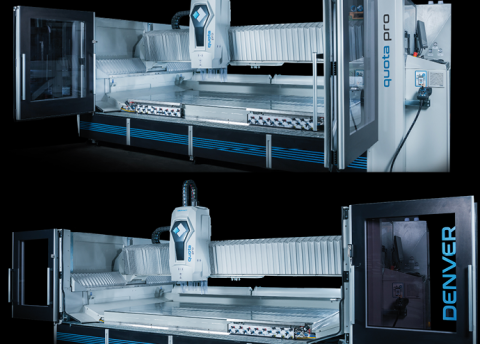

Excellence in Compactness

The various model sizes excellently combine reduced space needs and productivity performance

SKEMA

Processing

What you can do with this machine

Ask for more

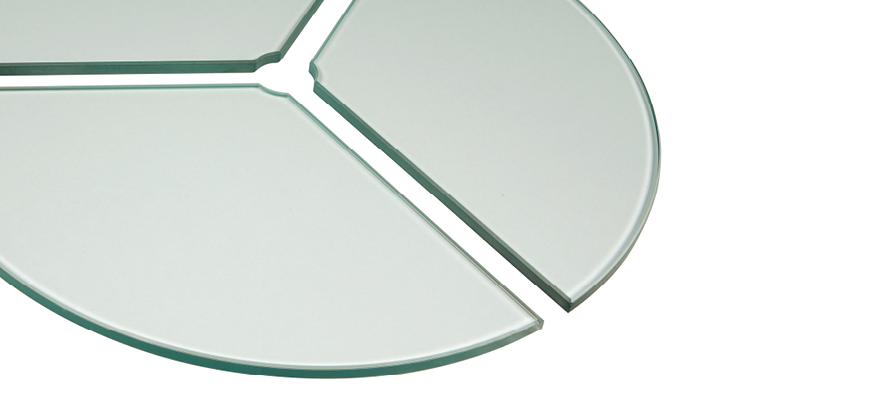

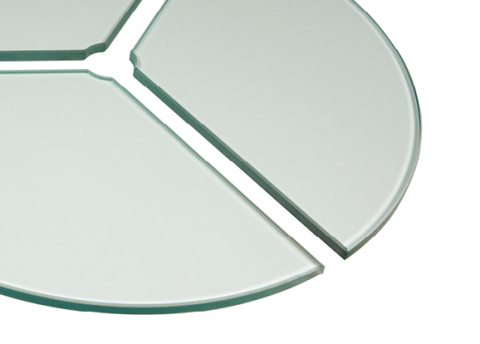

Routing

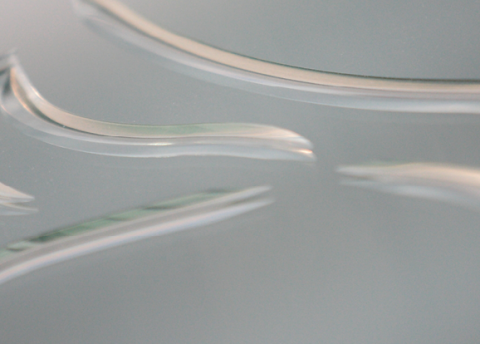

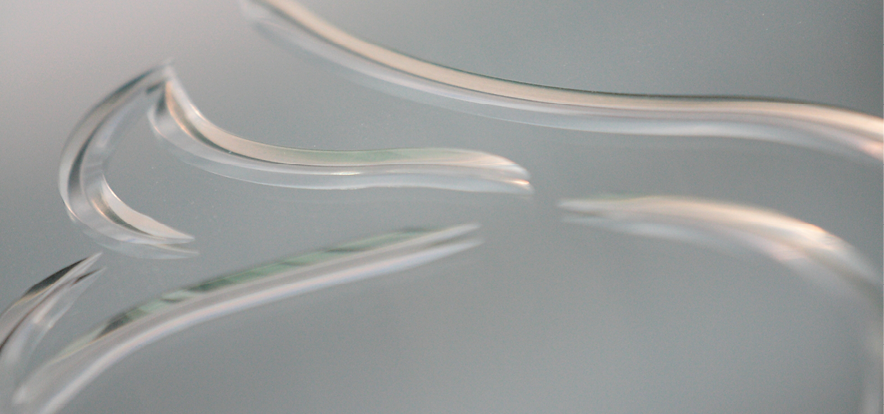

Grooving

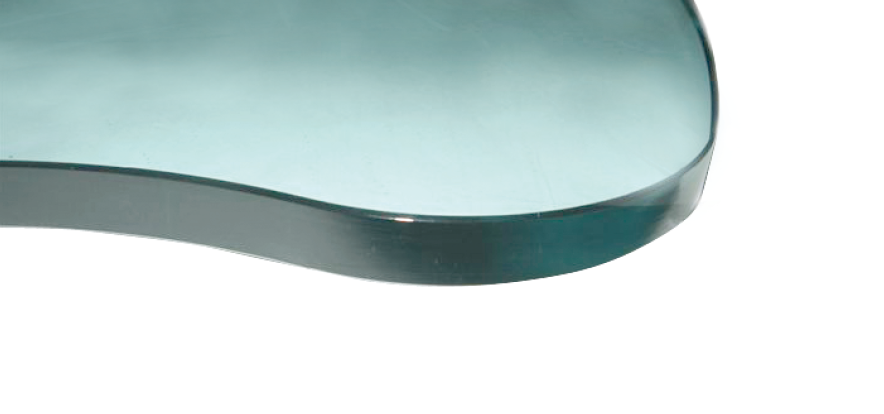

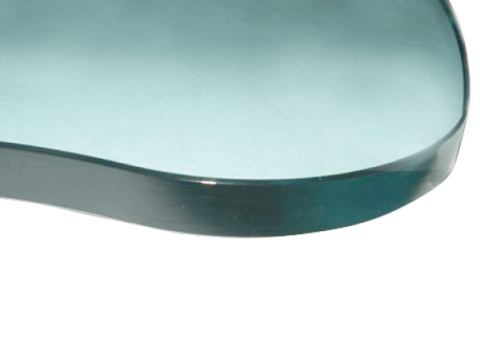

Polishing

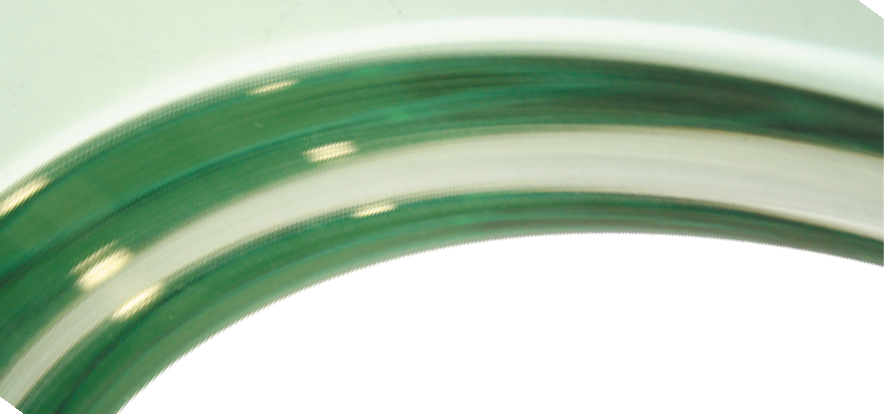

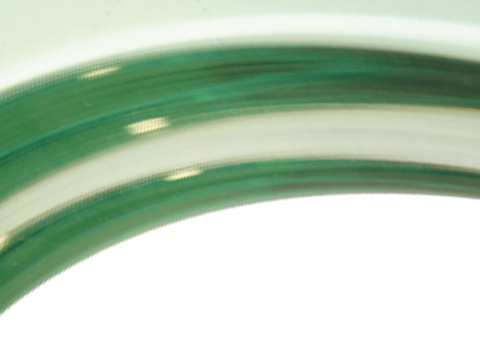

Grinding

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

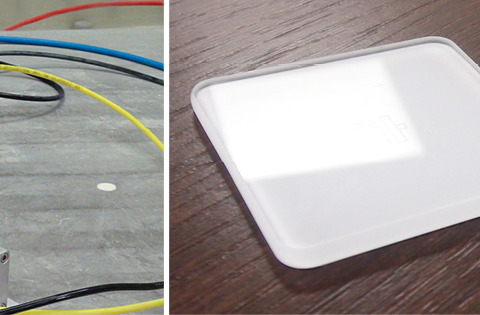

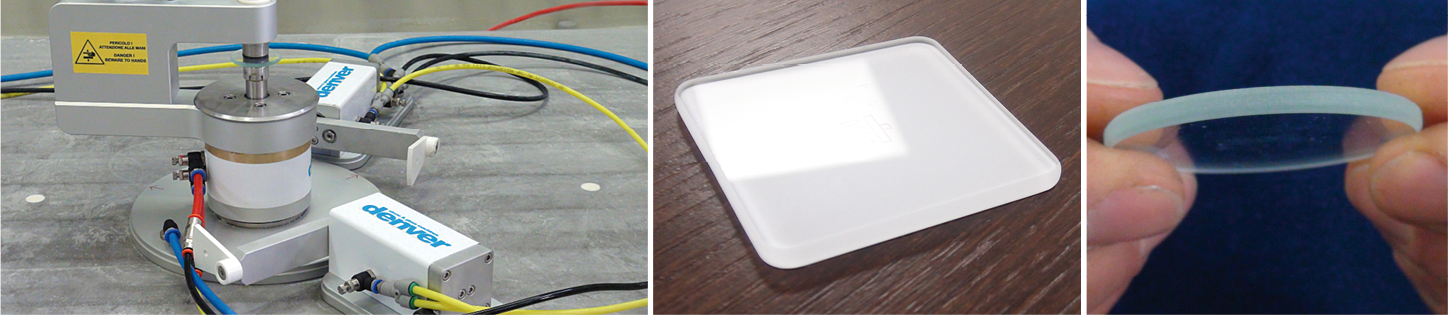

Rotating Suction Cup

Innovative device for grinding glass of small size with different shape (square, rectangular and round) for furniture, lighting and interior…

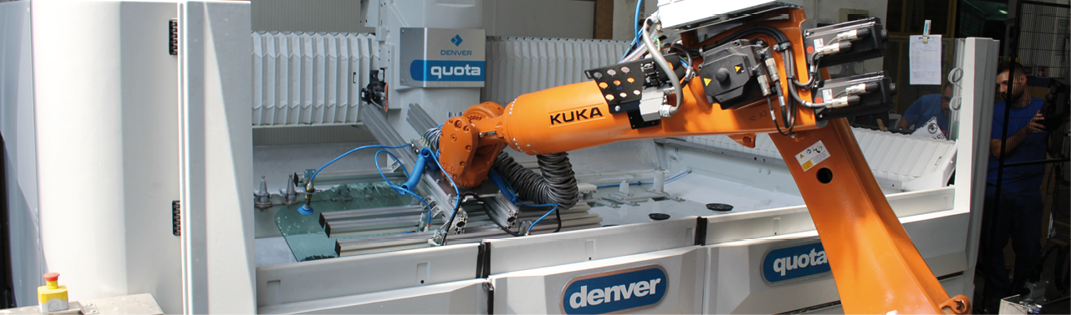

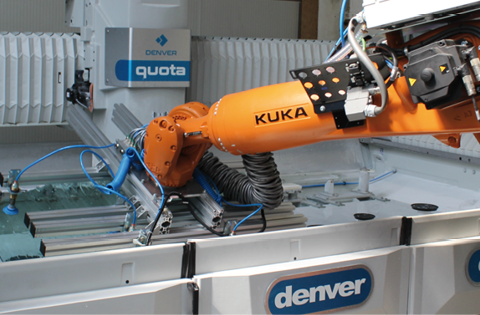

Robot Working Cell

Flexible, high productivity working cells specifically designed for electroappliance, automotive, and technical glass components.

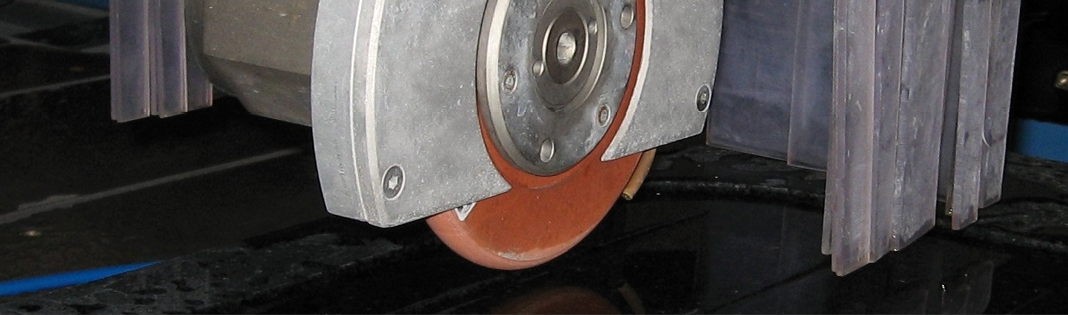

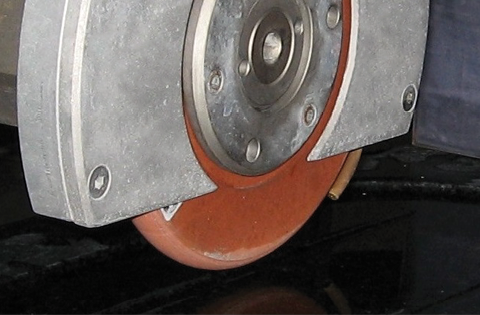

4th C Axis

For grooving wheels, discs and bits on 90° gearboxes

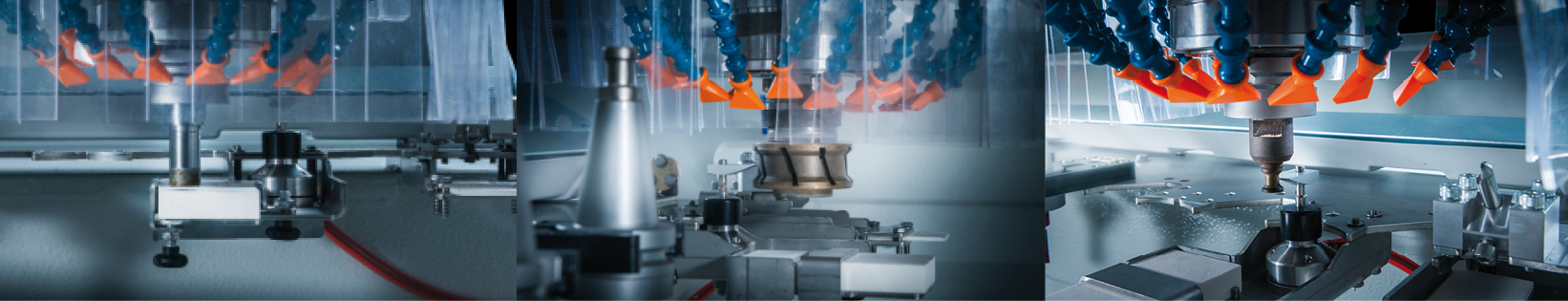

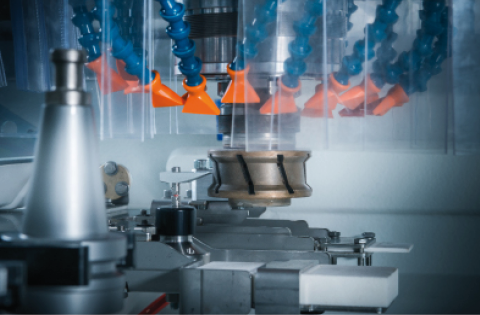

On-board Devices for Automatic Tooling Management

• Redresser for diamond wheels • Redresser for polishing wheels • Redresser for core drills • Tools presetter to micrometrically…

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Dove posso trovare le schede tecniche complete dei prodotti?

Le schede tecniche di tutti i modelli sono disponibili nella sezione Prodotti del sito. Per documentazione dettagliata o disegni tecnici puoi anche contattare il nostro ufficio commerciale.


I software CAD-CAM sono inclusi nella fornitura della macchina?

Sì, le macchine Denver sono fornite con il software CAD-CAM dedicato già configurato. La licenza, la formazione all’uso e gli aggiornamenti sono inclusi nel pacchetto di fornitura standard.
