Glass line

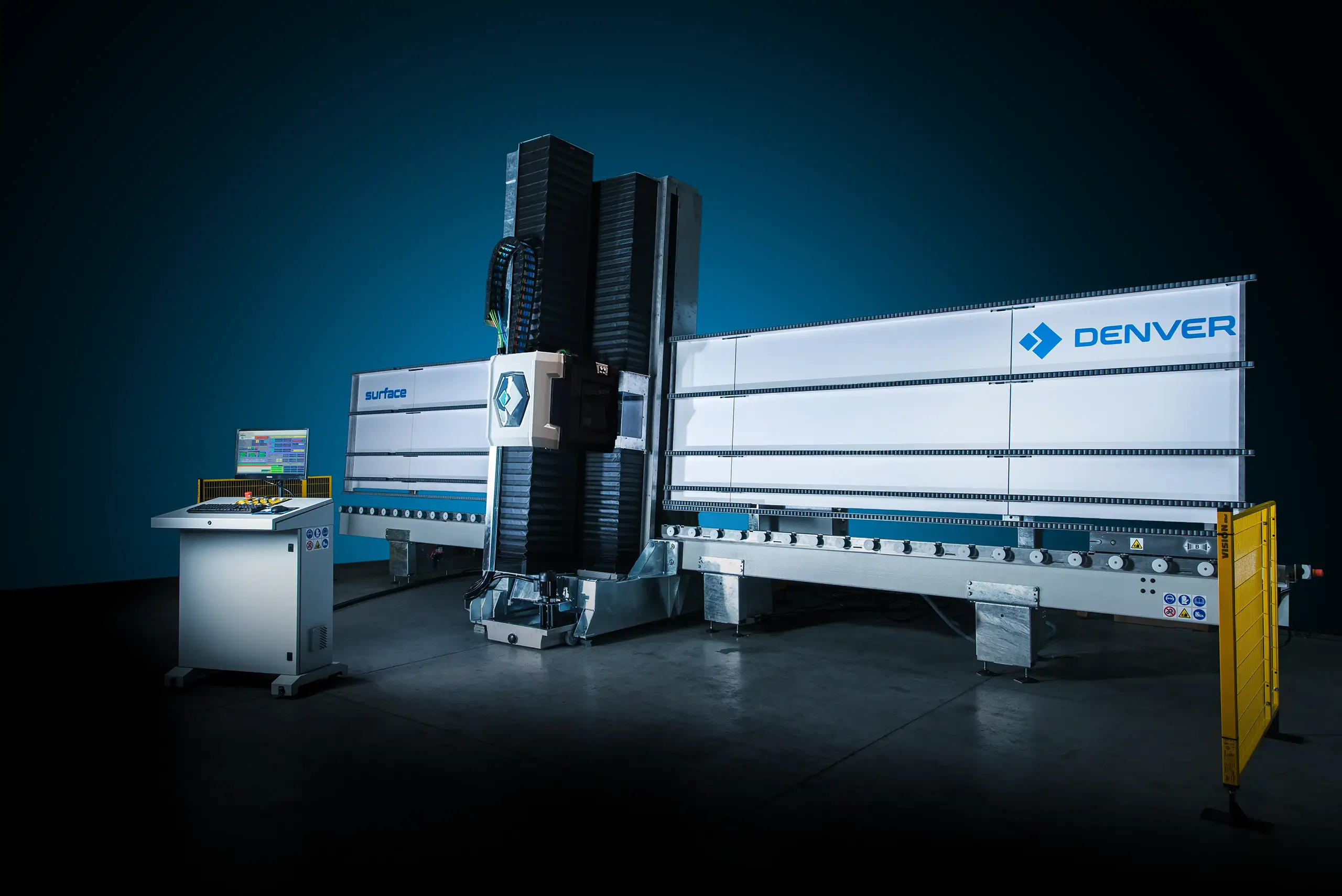

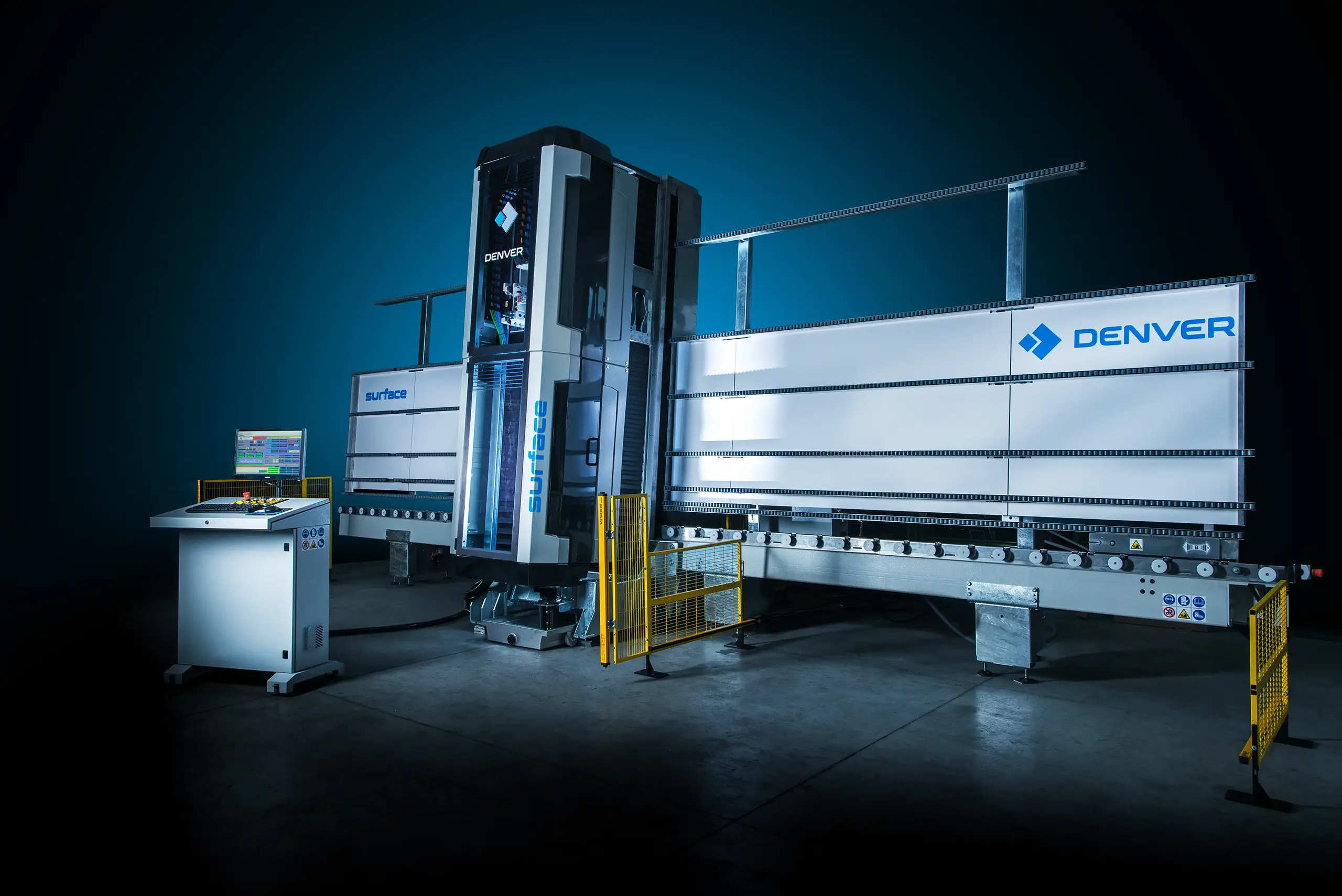

Surface

X:525/3300 Y:150/1600 Z:4/21

Interested? Let’s talk

THE STATS

Surfacemain data of the machine

Motor power

Kw 7.8 – Hp 10.6 (S6)
0 ÷ 10000 rpm

Weight

4050 kg
9000 lbs

Automatic Tool Change

N° 12 + 10 pos. ISO40 cones
double automatic tool changer magazines

Max Lavorabile / Max Working

X 3000/3300 mm – 118/130"
Y 1600/2200 mm – 63/87"

Min Lavorabile / Min Working

X 525 mm – 21"
Y 150 mm – 5.9"

Operating groups

2X

Max – Min

75 mm – 4 mm
3 – 0,1"

Max Caricabile / Max Sheet

3000/3300 x 2500 mm | 130 kg/m
118/130 x 98" | 90 lbs per linear foot

Workable thickness

4 ÷ 21 mm

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

Read all the news

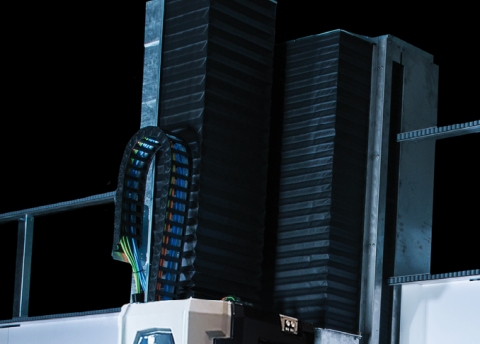

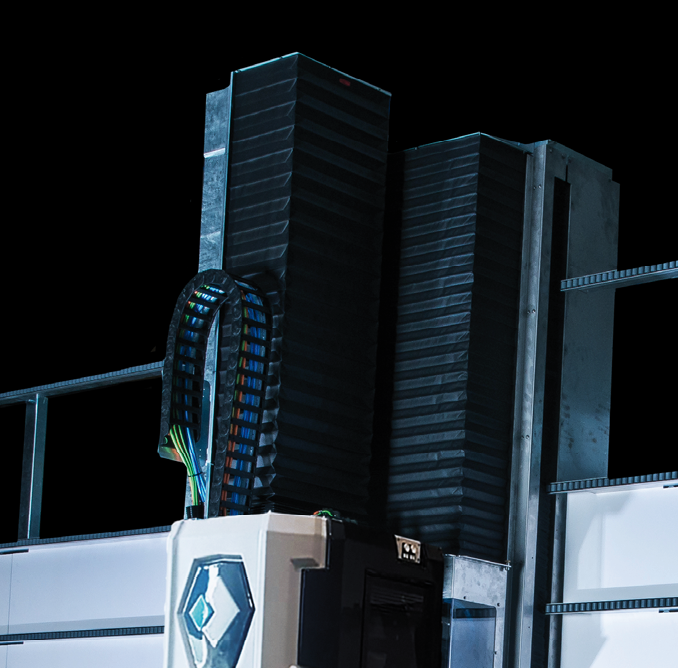

Standard Version with Bellows

Hot Zinc-Coated Vertical Structure, base with special corrosion-proof treatment. Guideways and mechanical parts protected by covers.

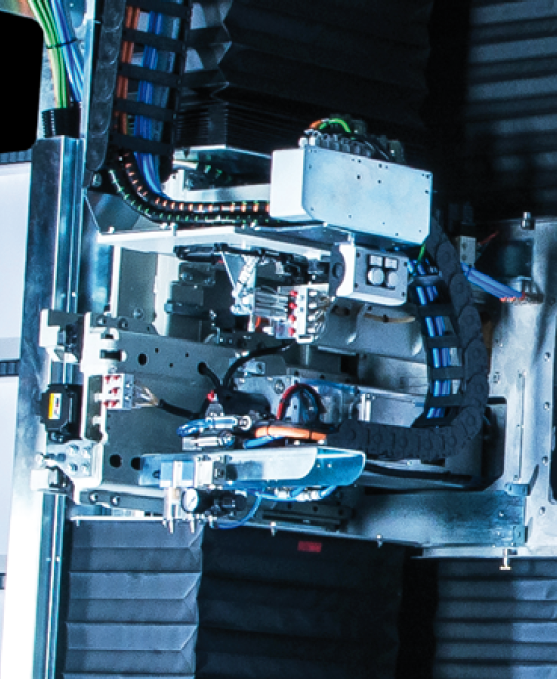

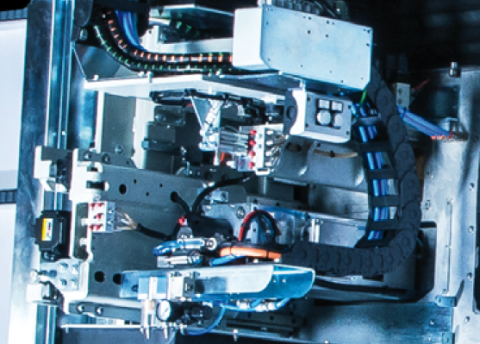

Operating Groups

Double powered servo-ventilated electrospindle with ISO 40 MAS-ARC connection Kw7.8 (S6) RPM 10.000. Tool change without sensors, fast orientation, reliable…

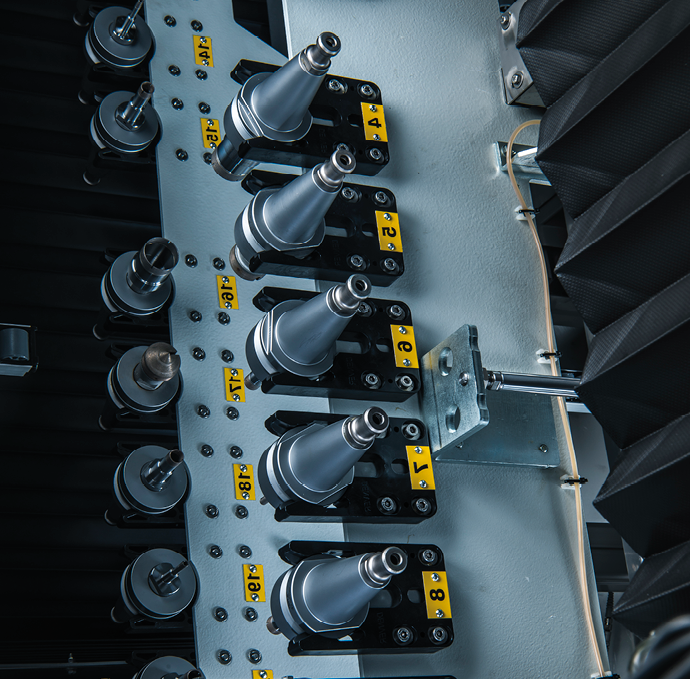

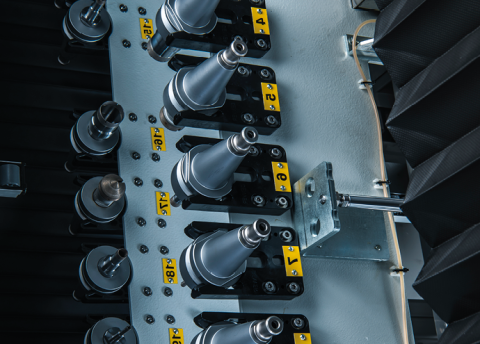

Double Linear Automatic Tool Magazine

– front rack 12 positions – rear rack 10 positions – SYNCHRONIZED FRONT AND REAR TOOL CHANGE FOR QUICK GLASS-TO-GLASS…

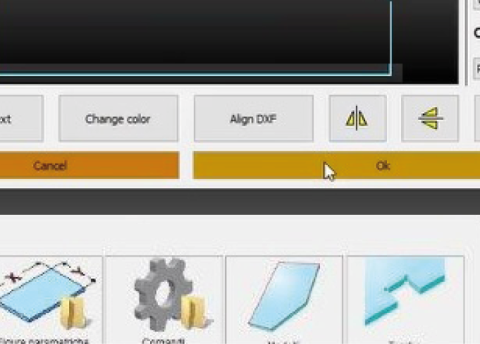

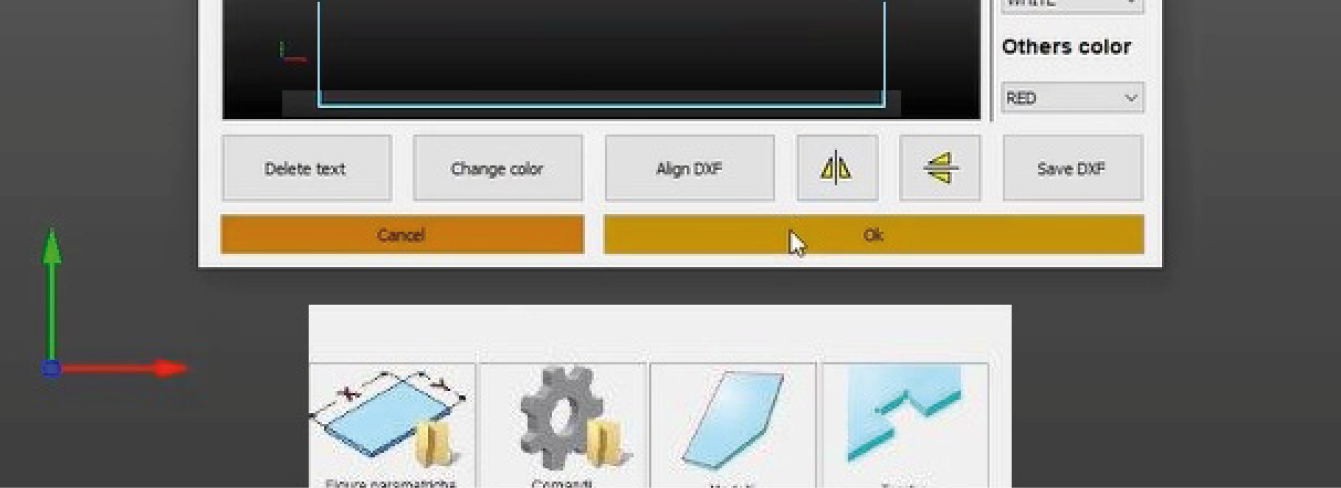

Denver PILOT Software Powered by DDX

Advanced programming assistance software. Dxf import, programming is extremely easy, quick, intuitive and flexible. Only few steps before processing: 1.…

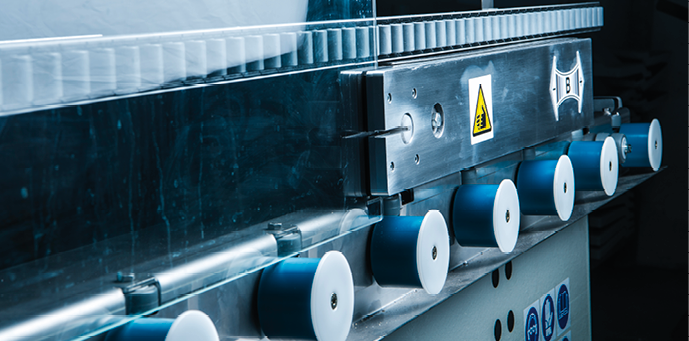

Clamp Handling

For glass pieces with lower right hand-side corner with angle from 45° to 135°.

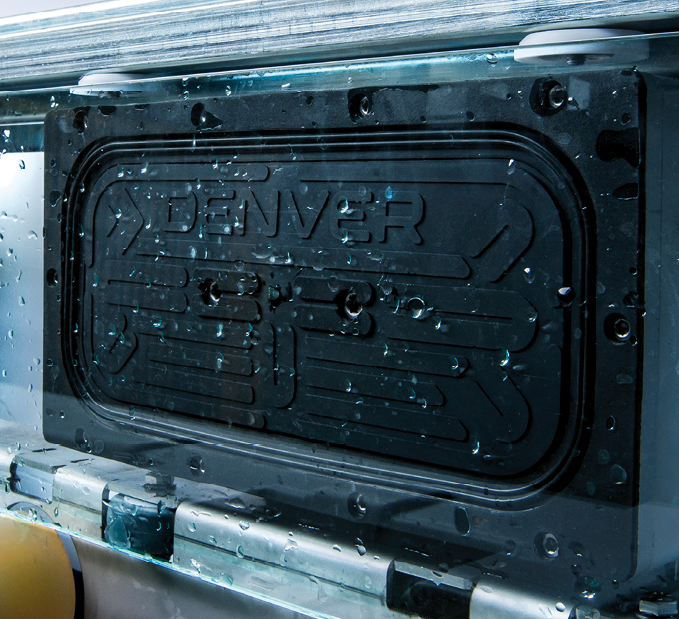

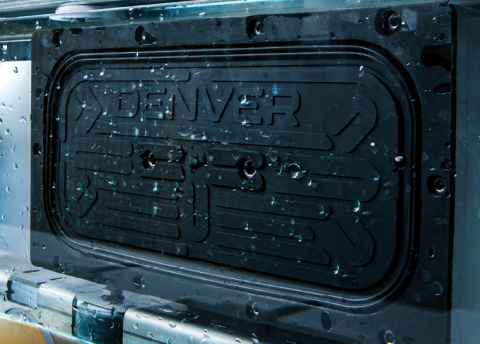

DMV Vacuum Cup

For glass holding during milling processing and glass holding/handling (within 650mm/25,5” travel) when the clip is not engaged.

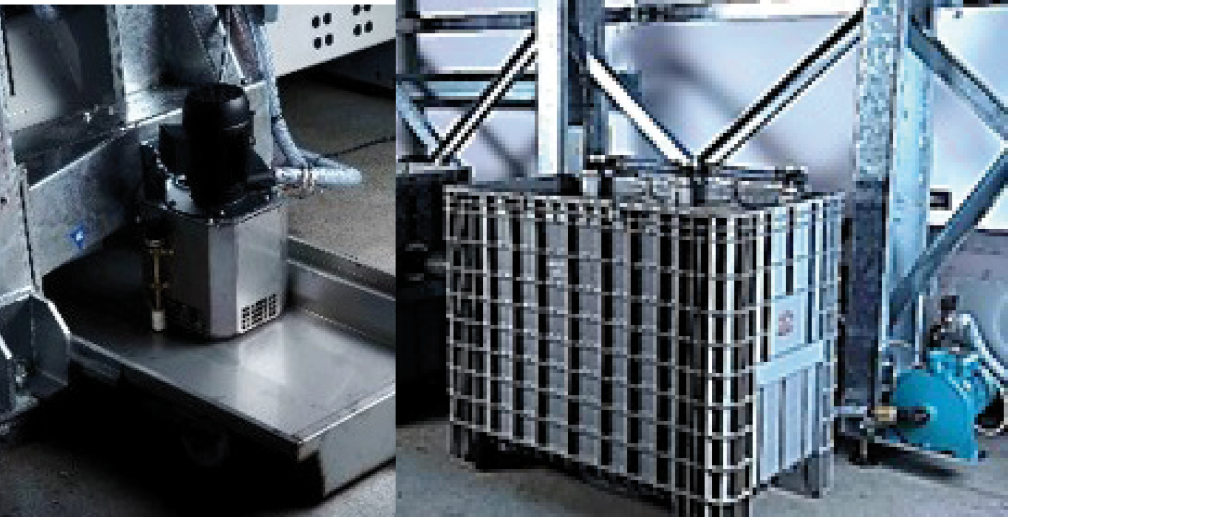

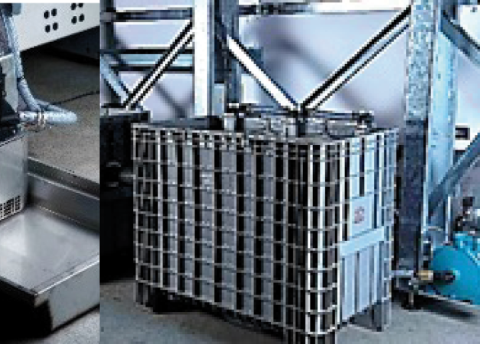

Circuit Tools Lubrification Water

Collection through lower stainless steel tank. Recovery and decantation through one rear tank, with recirculation pump.

SKEMA

Processing

What you can do with this machine

Ask for more

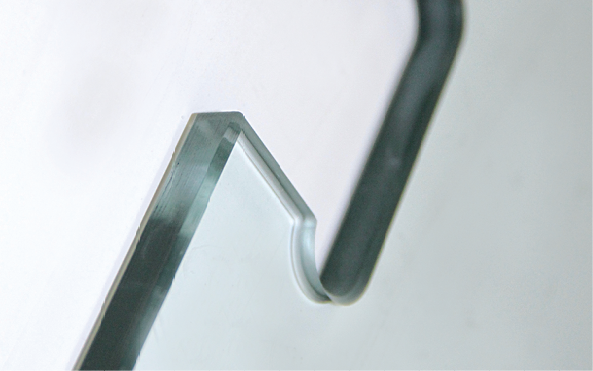

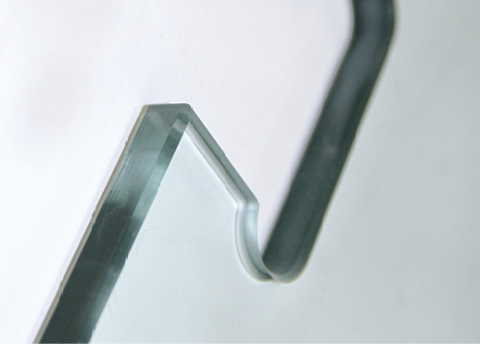

Milling

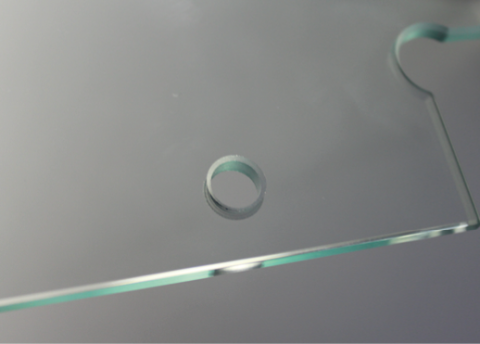

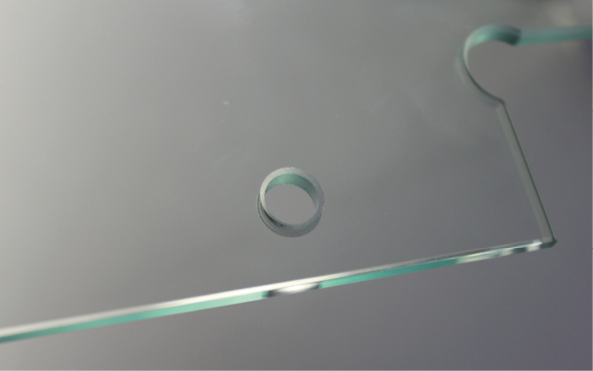

Drilling and Countersinking with Twin Counter-Heads

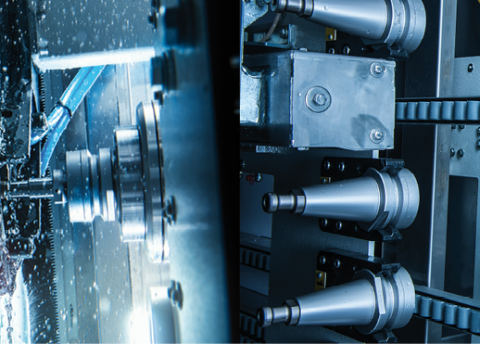

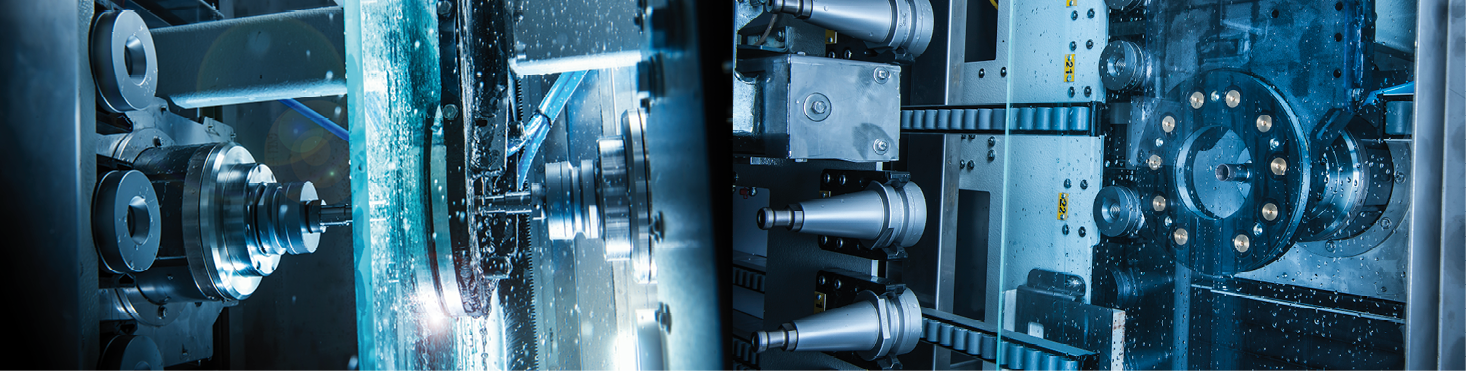

Front and Rear Holders with Optimised Cooling System

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

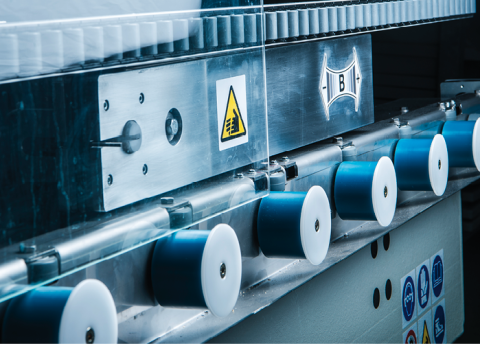

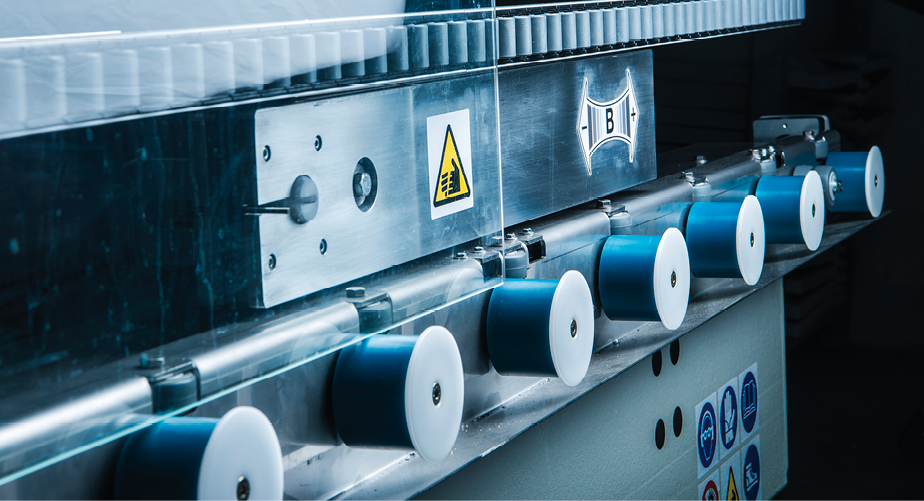

Retractable Clamp

Pneumatically driven, for max versatility and no interferences for through-feed glass loading and unloading movements. Also allowing the load and…

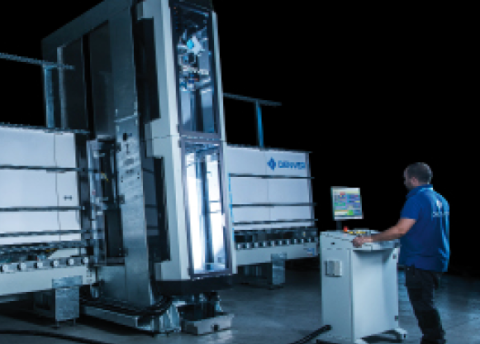

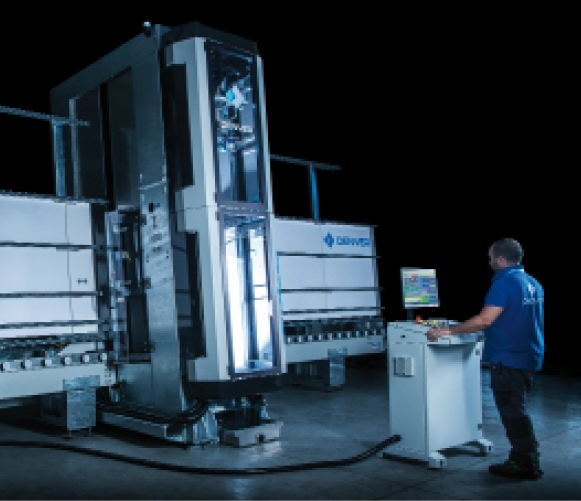

Premium Version

Featuring fully enclosed working area and including working dimensions up to 3000x2200mm / 118” x 86”.

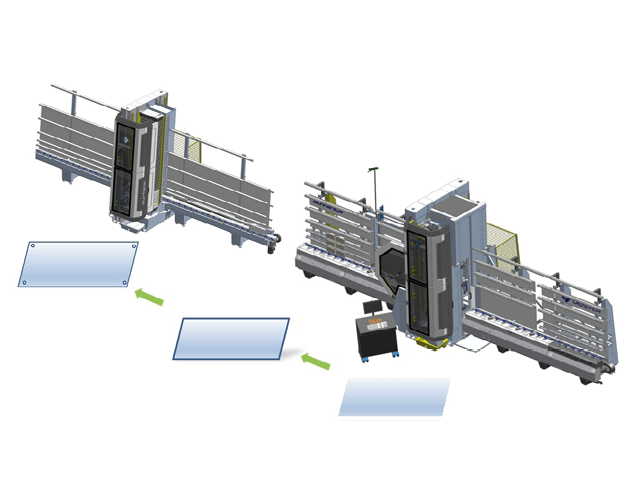

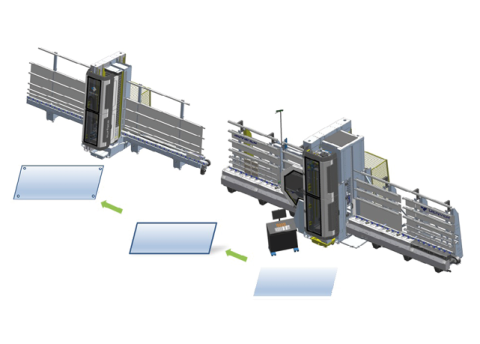

Flexible and Productive for Both Large and Small Batches

Thanks to the possible in-line combination for feeding pieces with edge processing machine, and/or for removing pieces with vertical washing…

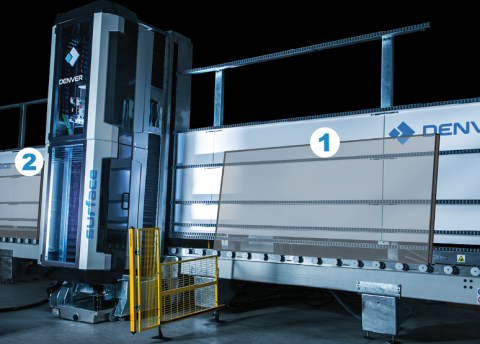

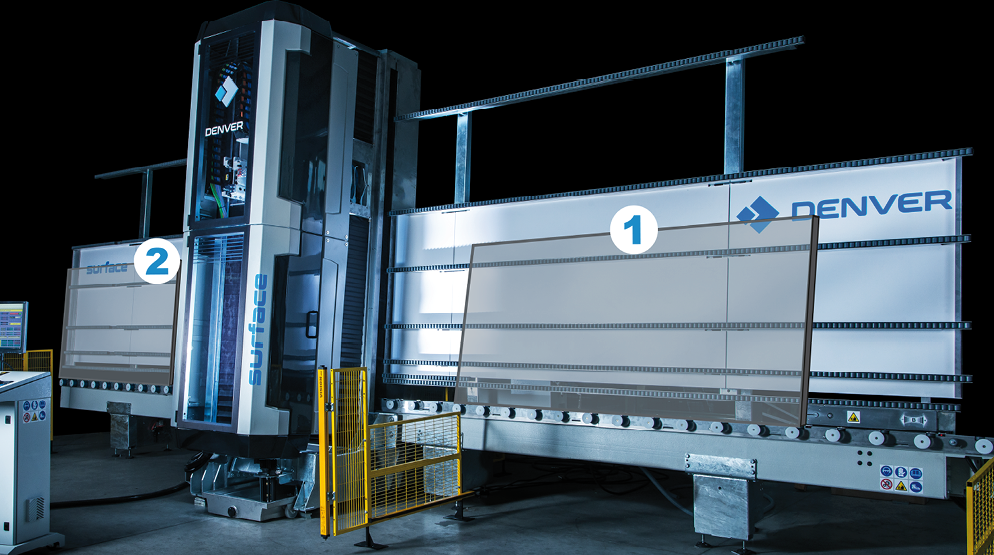

High Speed Package

Featuring pre-wiring for washing machine, powered outfeed roller conveyor and retractable clamp. Loading area safely accessible for positioning the new…

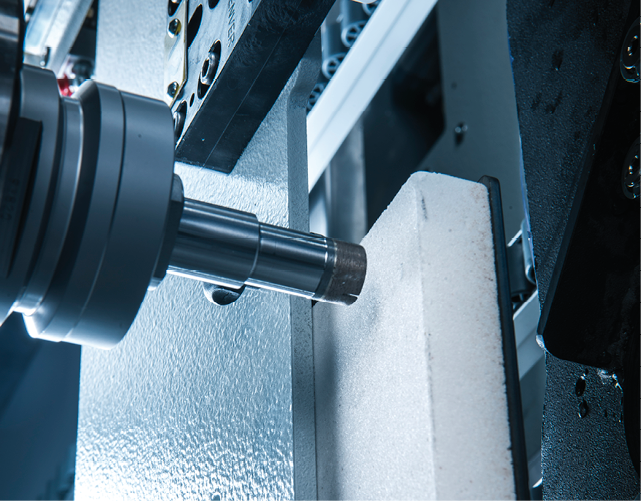

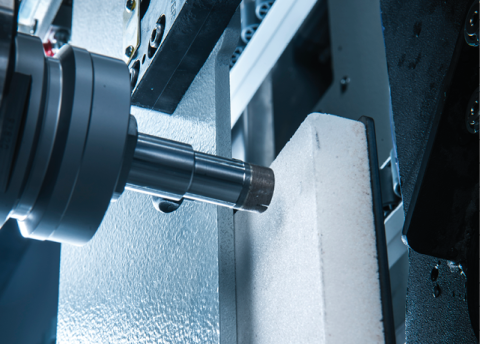

Core Drills Auto Redresser Presetter

On-board system to offer fast and continuously precise holes drilling.

Frequently asked questions

Find quick answers about configuration, installation and production use.


Dove posso trovare le schede tecniche complete dei prodotti?

Le schede tecniche di tutti i modelli sono disponibili nella sezione Prodotti del sito. Per documentazione dettagliata o disegni tecnici puoi anche contattare il nostro ufficio commerciale.


I software CAD-CAM sono inclusi nella fornitura della macchina?

Sì, le macchine Denver sono fornite con il software CAD-CAM dedicato già configurato. La licenza, la formazione all’uso e gli aggiornamenti sono inclusi nel pacchetto di fornitura standard.
