Stone line

Arteka

5 AXES X:4400 Y:3800 Z:1300

Interested? Let’s talk

THE STATS

Artekamain data of the machine

Work Area

X 3600 mm – 141,7"
Y 3800 mm – 323"
Z 1300 mm – 28,3"

A axis

-20° + 90° (for tools)
0° – 90° (for discs)

C axis

-3° + 363°

Motor power

ISO40 Kw 28 – Hp 37,5 (S6)
0 ÷ 10000 rpm
opt. ISO50 Kw 40 – Hp 53,6 (S6)
0 ÷ 8000 rpm

Disc diameter

400 ÷ 625 mm
16 ÷ 24"
Opt. Ø 825 – 1000 mm
32" – 39"

Weight

6200 kg
14000 lbs

Automatic Tool Change

12 pos.
(opt. 12 pos.)

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

Read all the news

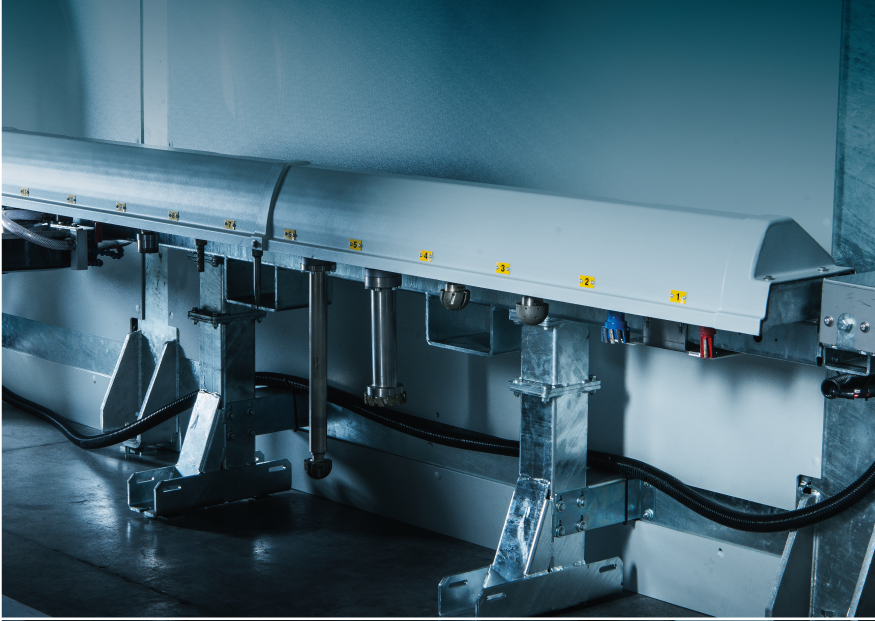

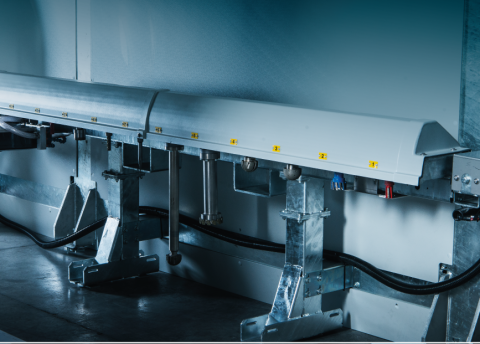

Tool Rack

12-positions lateral linear magazine

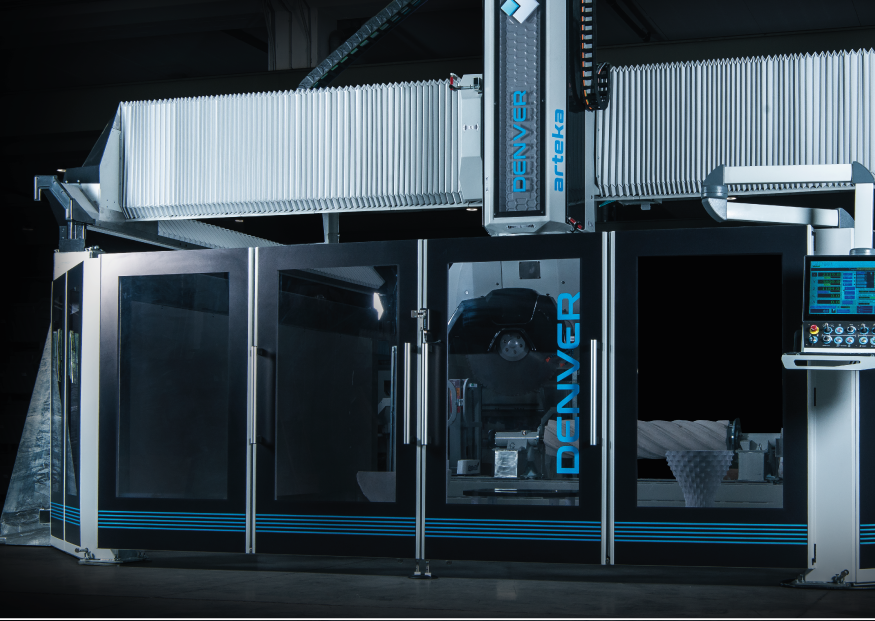

Safety Equipment

Ergonomic front safety doors offering compact footprint.

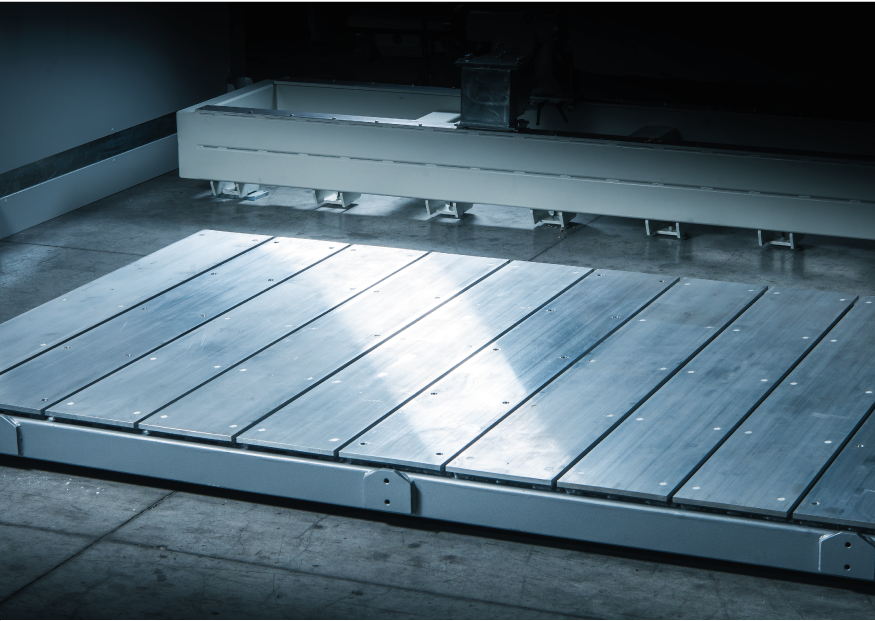

Lowered Table with Aluminum Slats

Ensures easy and precise clamping of pieces.

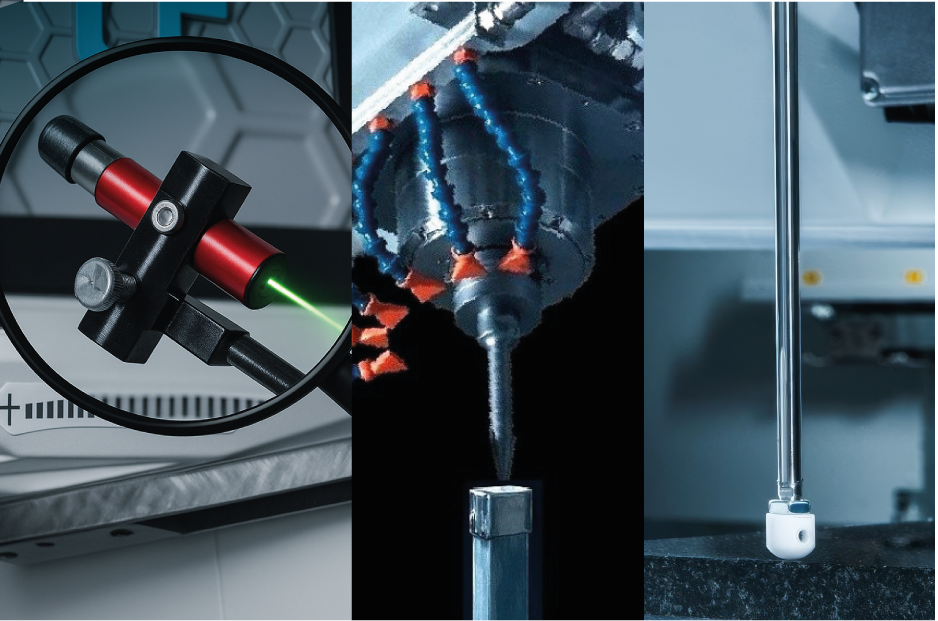

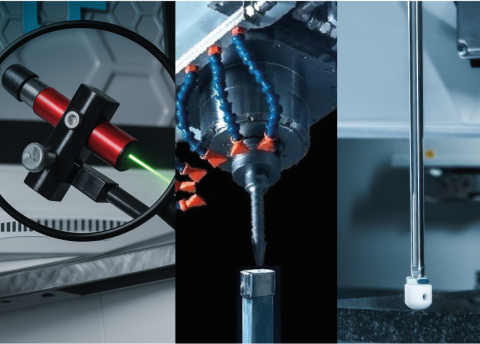

Line Laser Cross Laser and Touch Probes

Line Laser Cross Laser Touch Probes – for piece thickness and tool lenght / disc diameter

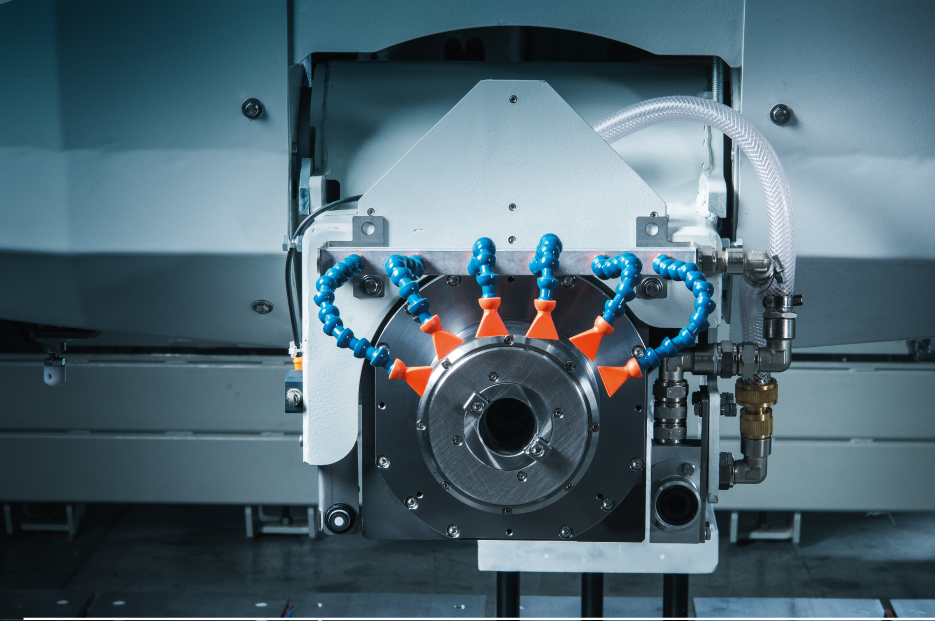

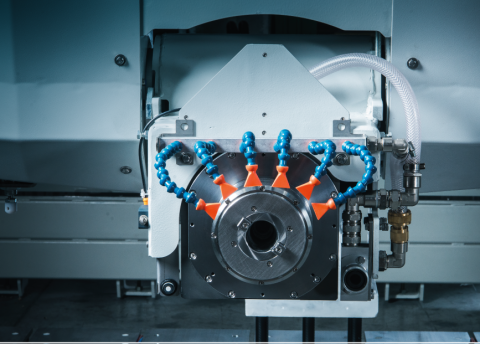

Hp 37.5 Main Spindle Motor

ISO40 electrospindle, Kw.28 (S6), liquid-cooled, with adjustable speed up to 10,000 rpm.

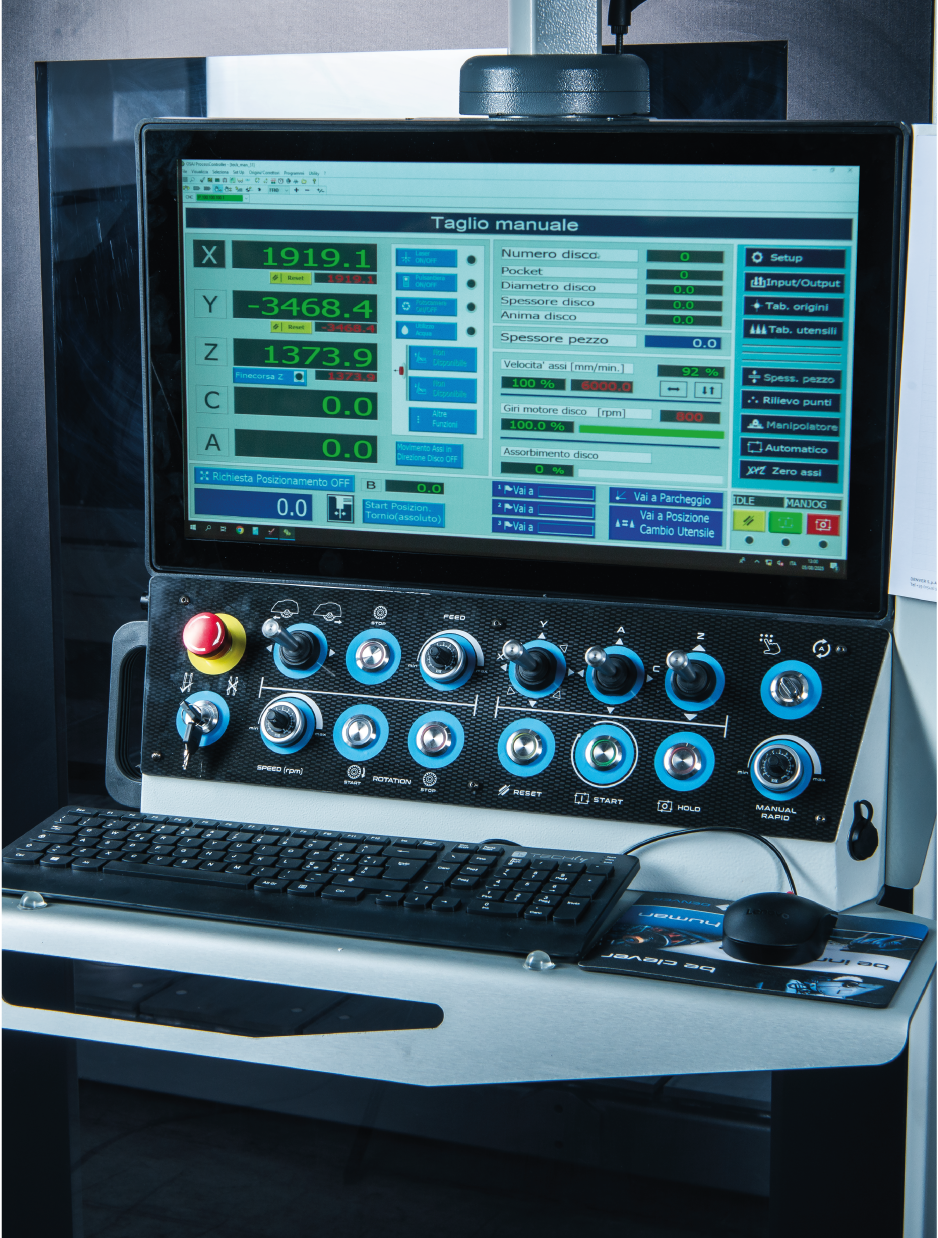

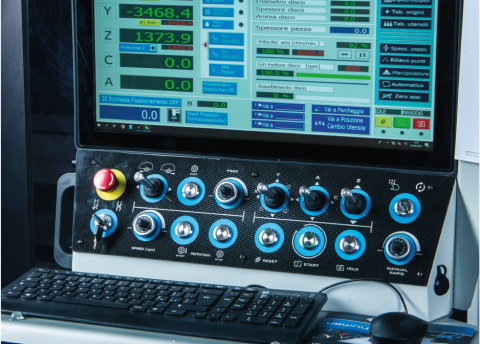

Control Instruments

Control panel on articulated arm.

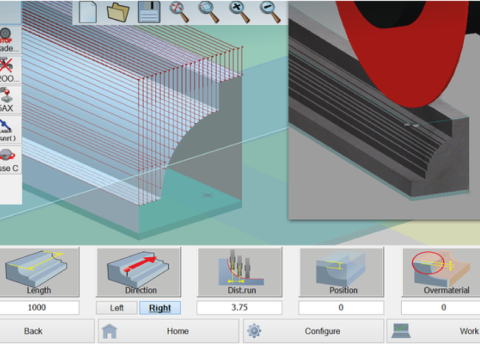

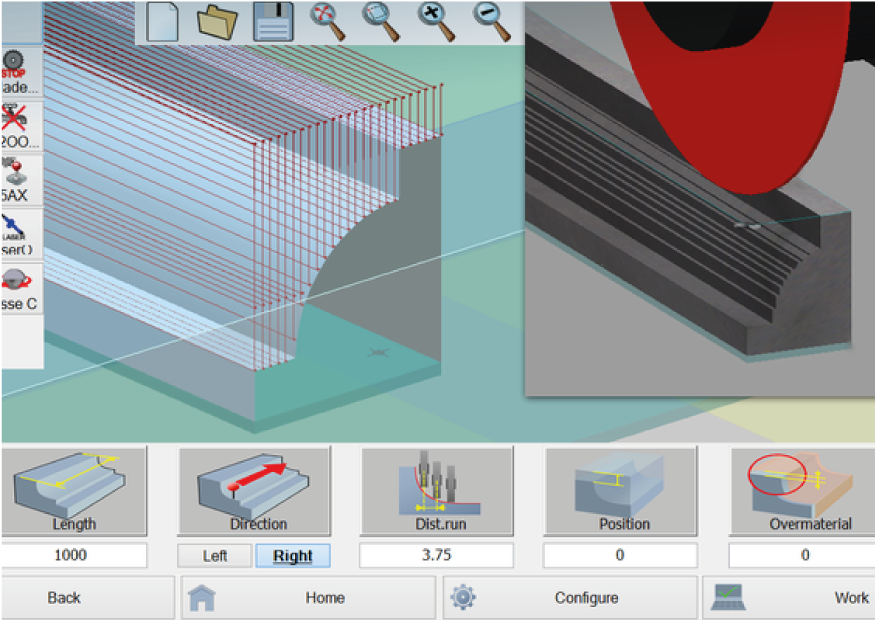

Advanced 5-axis Performer Software Powered by DDX

A single work environment capable of managing every phase of production: from 3D design to part layout to machine program…

SKEMA

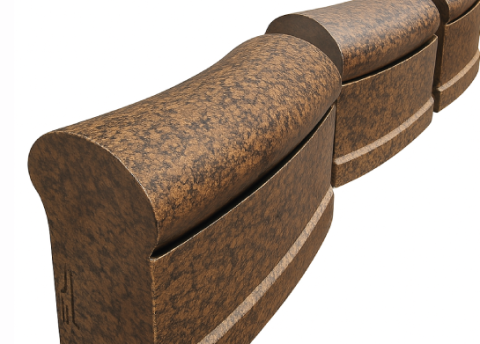

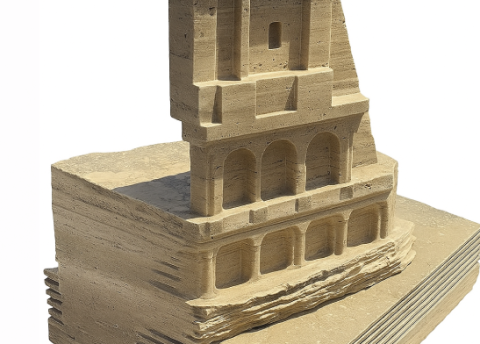

Processing

What you can do with this machine

Ask for more

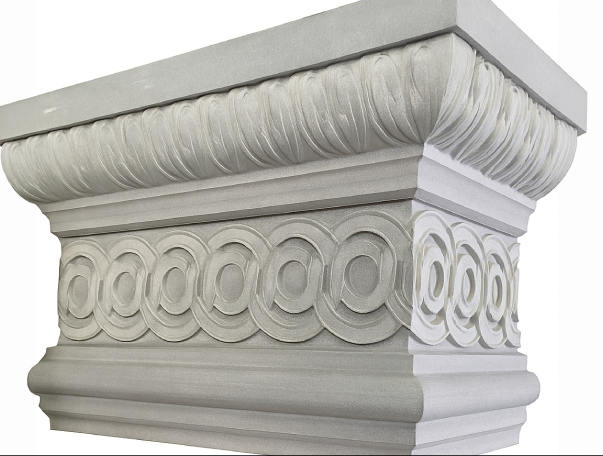

Process 08

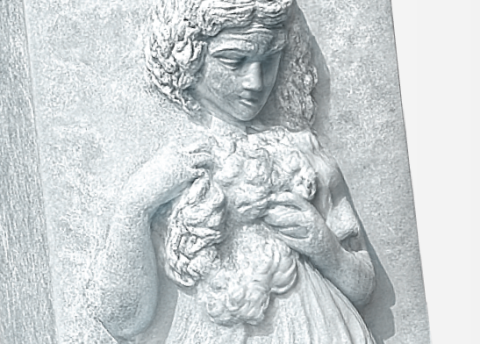

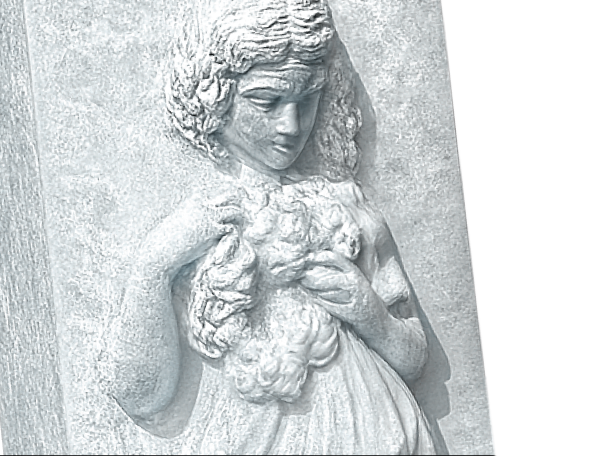

Process 06

Process 07

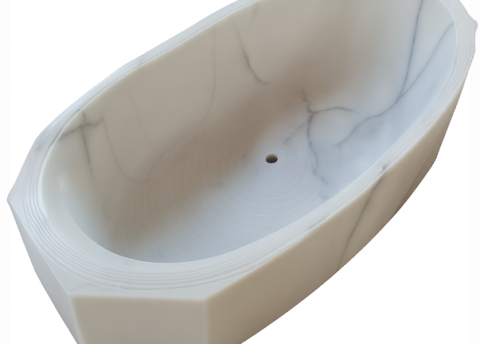

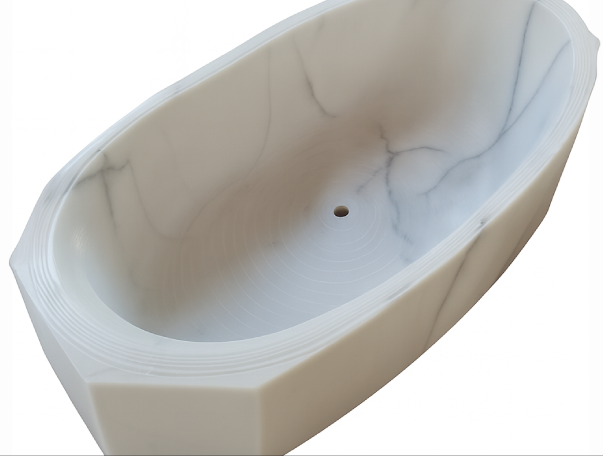

Process 04

Process 05

Process 02

Process 03

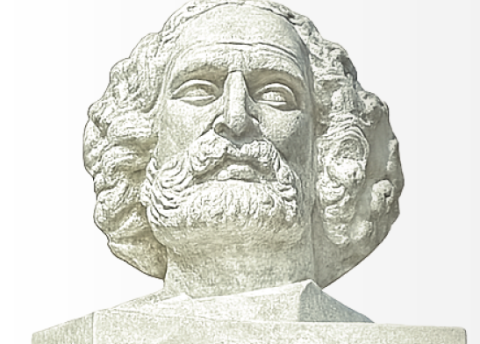

Process 01

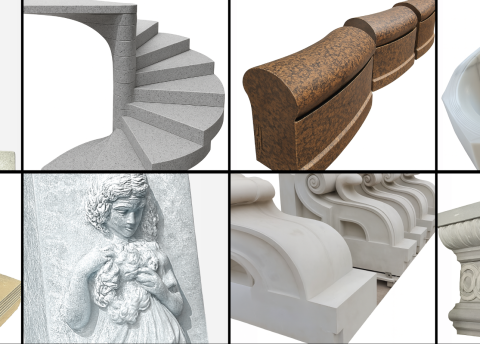

What you can do with this machine

The solidity of the structure, the advanced software, the rotation and inclination of the head combined with the 5 interpolated…

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

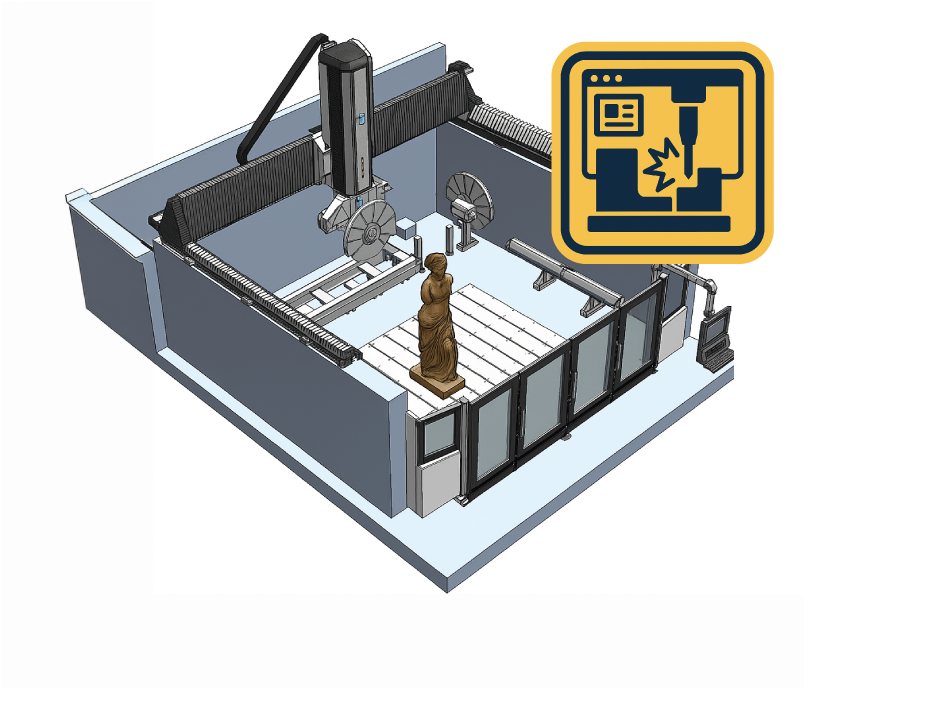

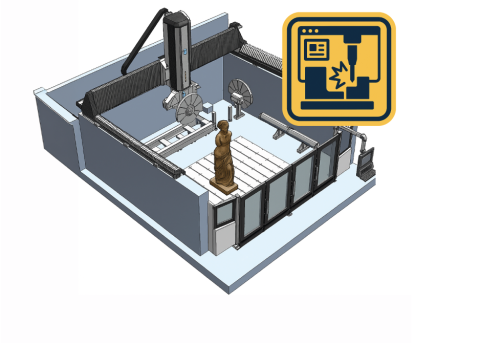

Software Module for Collision Control

Advanced 3D engine that accurately simulates every stage of the machining process, allowing to check toolpaths in advance and prevent…

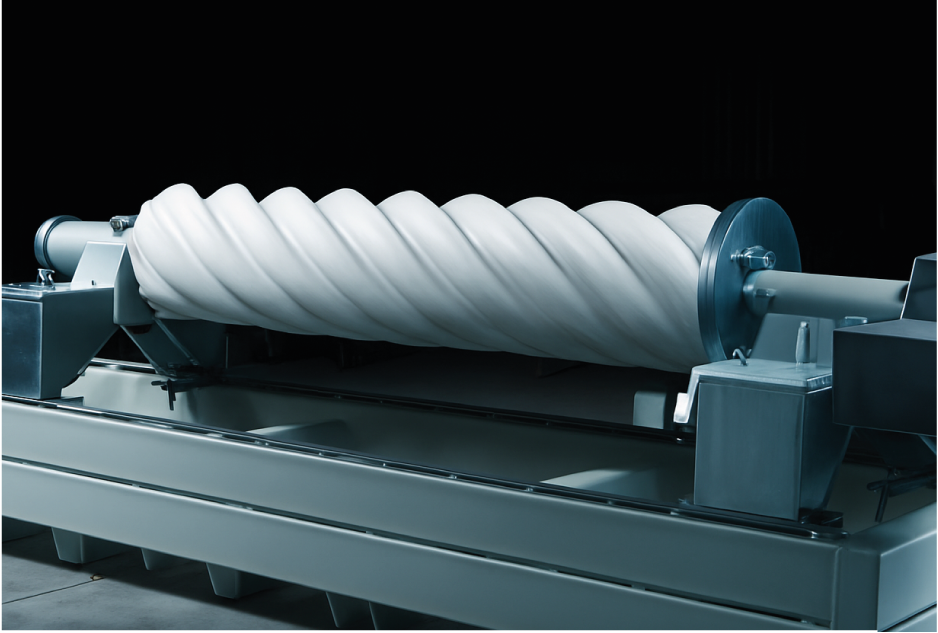

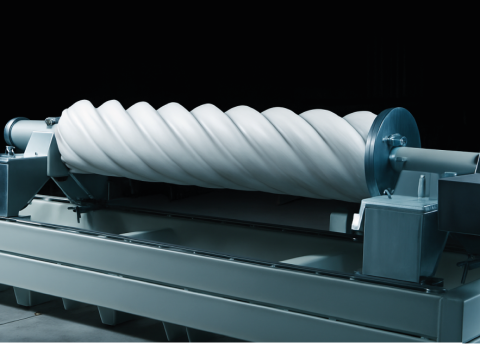

Interpolated Lathe 6th axis

For complex multi-shaped statues and columns.

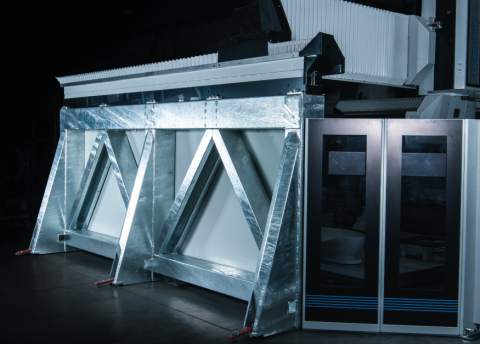

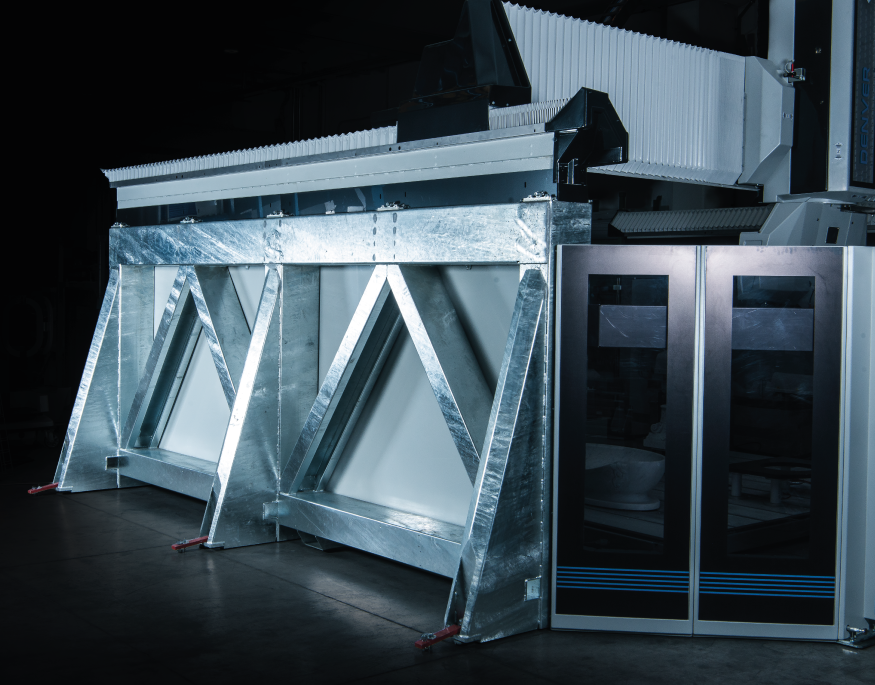

Heavy Duty Hot-dip Galvanized Metal Supports

as an alternative to reinforced concrete walls.

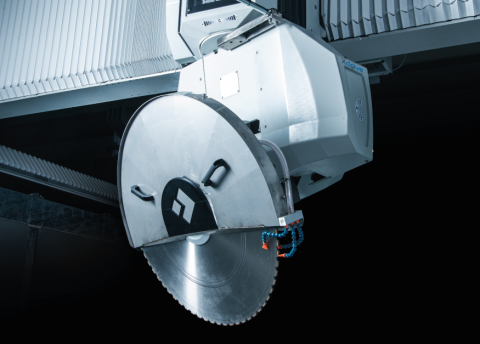

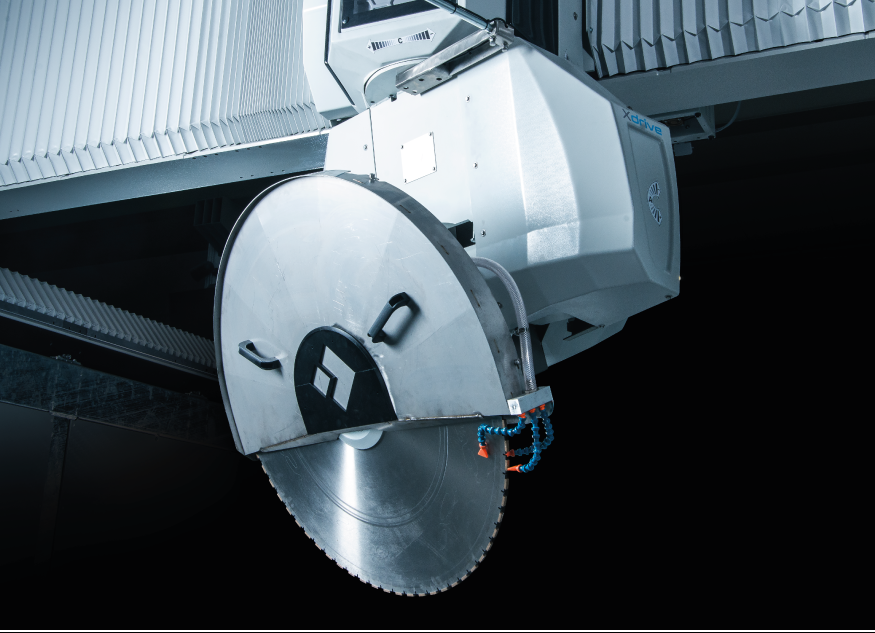

54 Hp Eletrospindle ISO 50

40 Kw (S6), 273 Nm torque, liquid cooled, with adjustable spindle speed up to 8,000 rpm.

SKEMA

Technologies

What you can do with this machine

Ask for more

DEN Speed

Smart technology that automatically ensures the actual disc diameter never exceeds the value set in the program, protecting the machine,…

DEN-AROUND maximum machine utilization

The system automatically guides the head around the workpiece, optimizing movements and making full use of the available working area.

TCP Tool Center Point

Numerically controls tool movements, keeping the tool or blade perpendicular to the work point.

X-Drive Denver Technology for 5-Axis Head

The X-Drive system features high-rigidity fork support for the motors combined with precision zero-backlash gearboxes.

Frequently asked questions

Find quick answers about configuration, installation and production use.


Dove posso trovare le schede tecniche complete dei prodotti?

Le schede tecniche di tutti i modelli sono disponibili nella sezione Prodotti del sito. Per documentazione dettagliata o disegni tecnici puoi anche contattare il nostro ufficio commerciale.


I software CAD-CAM sono inclusi nella fornitura della macchina?

Sì, le macchine Denver sono fornite con il software CAD-CAM dedicato già configurato. La licenza, la formazione all’uso e gli aggiornamenti sono inclusi nel pacchetto di fornitura standard.

Get in touch

Tell us what you need to process and we will help you configure the right Skema solution.
