Stone line

Tecnika EVO

5 AXES X:3700 Y:2650 Z:370

THE STATS

Tecnika EVOmain data of the machine

Work Area

X 3700 mm – 145,7"
Y 1900 mm – 104,3"
Z 370 mm – 14,5"

A axis

0° – 90°

C axis

0° – 360°

Motor power

Kw 13 – Hp 17,5 (S6)
800 ÷ 6000 rpm
with right-hand threaded 1/2" gas connection
con attacco 1/2" gas filettato destro

Disc diameter

350 ÷ 625 mm
13 ÷ 24"

Weight

3800 kg
8400 lbs

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

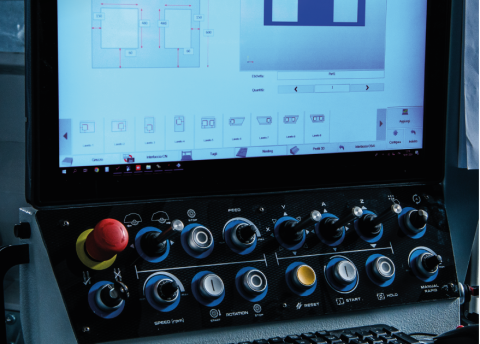

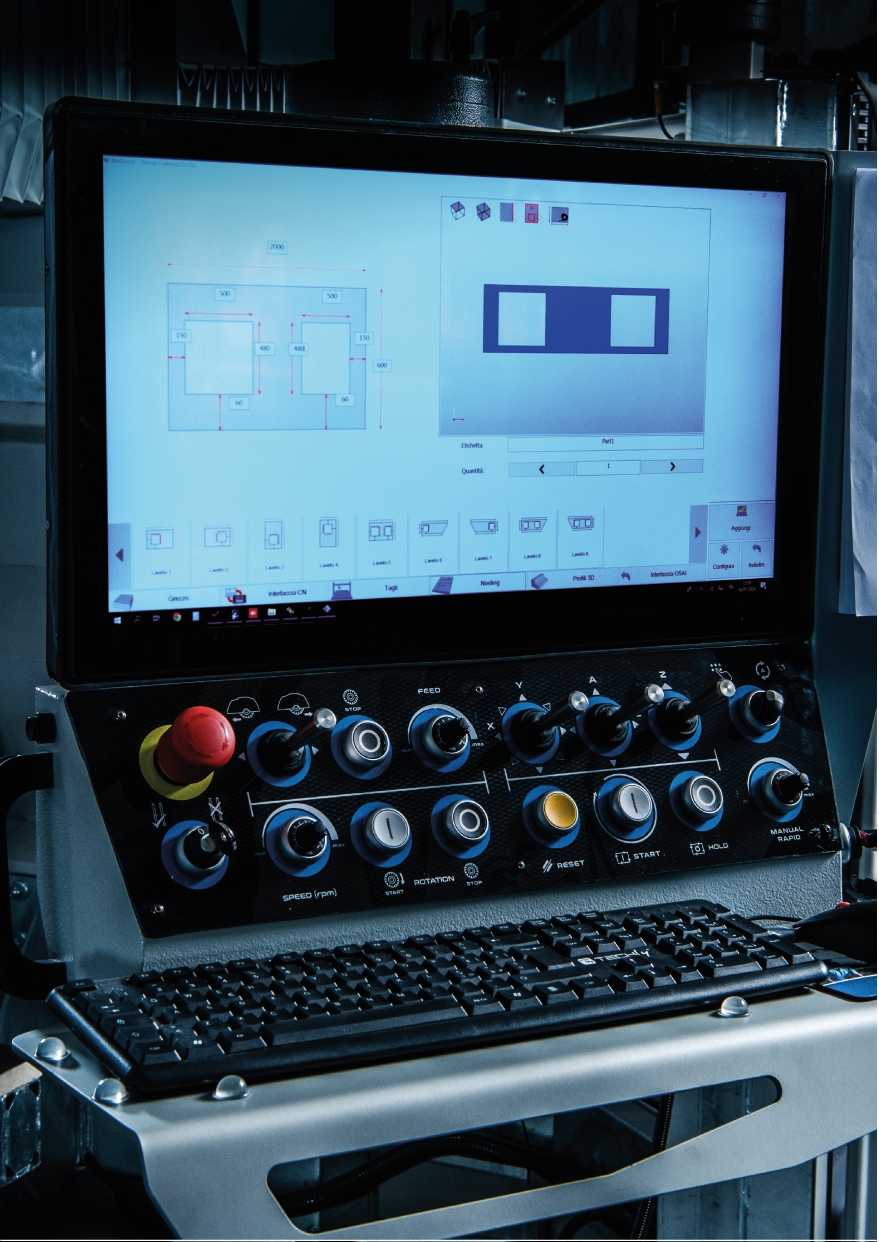

Pendant control panel

Pendant control panel offering wide visibility and ease of use.

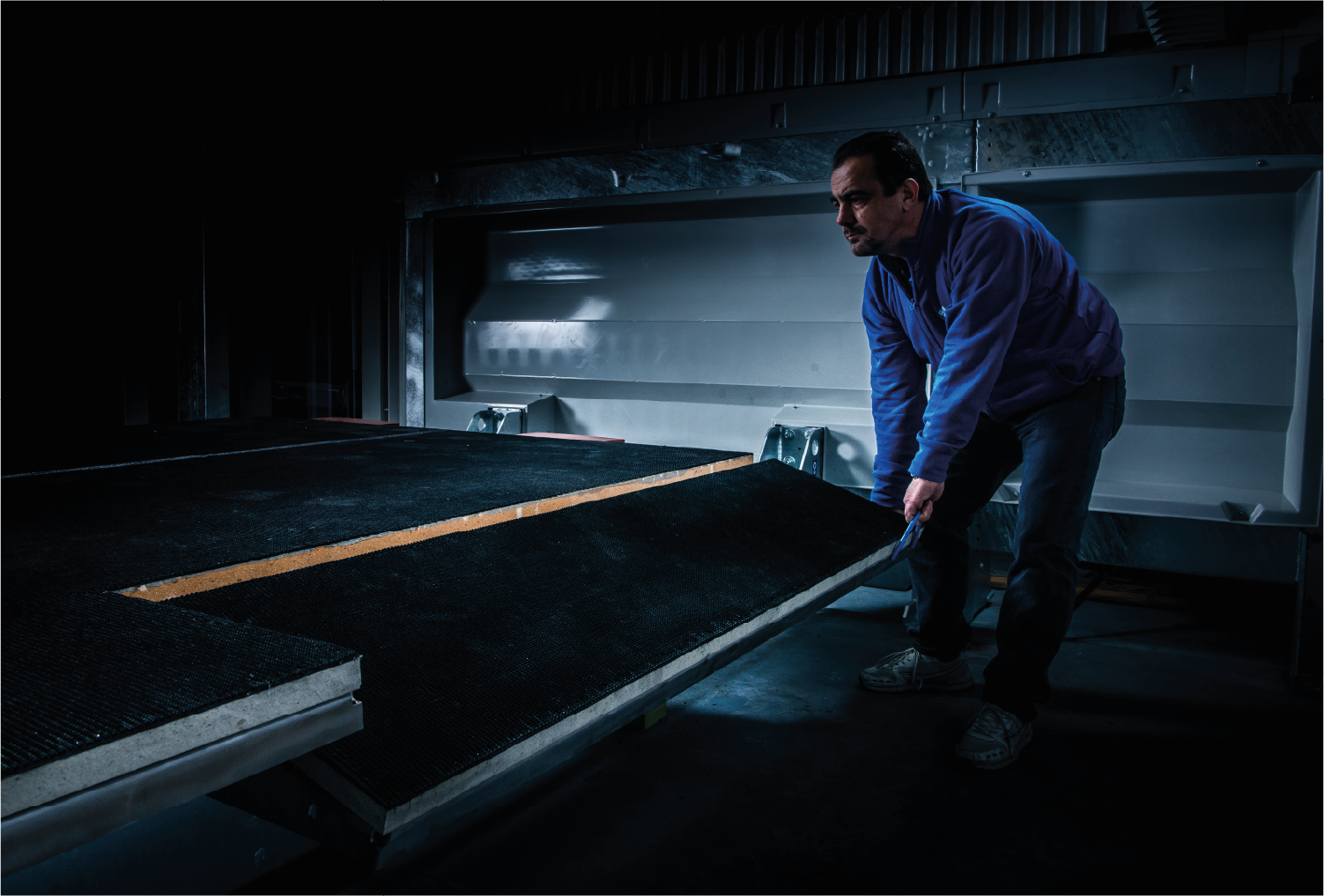

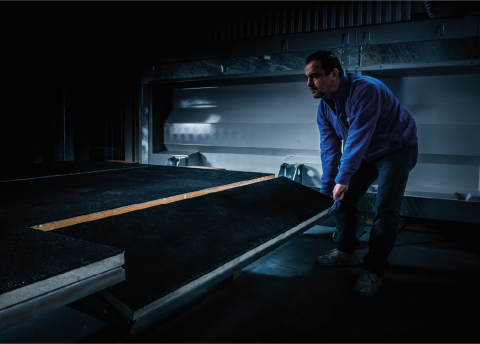

TFS Table Folding System

The bench can be quickly manually adjusted still allowing the tilting of slabs and cutting operations, allows processings directly on…

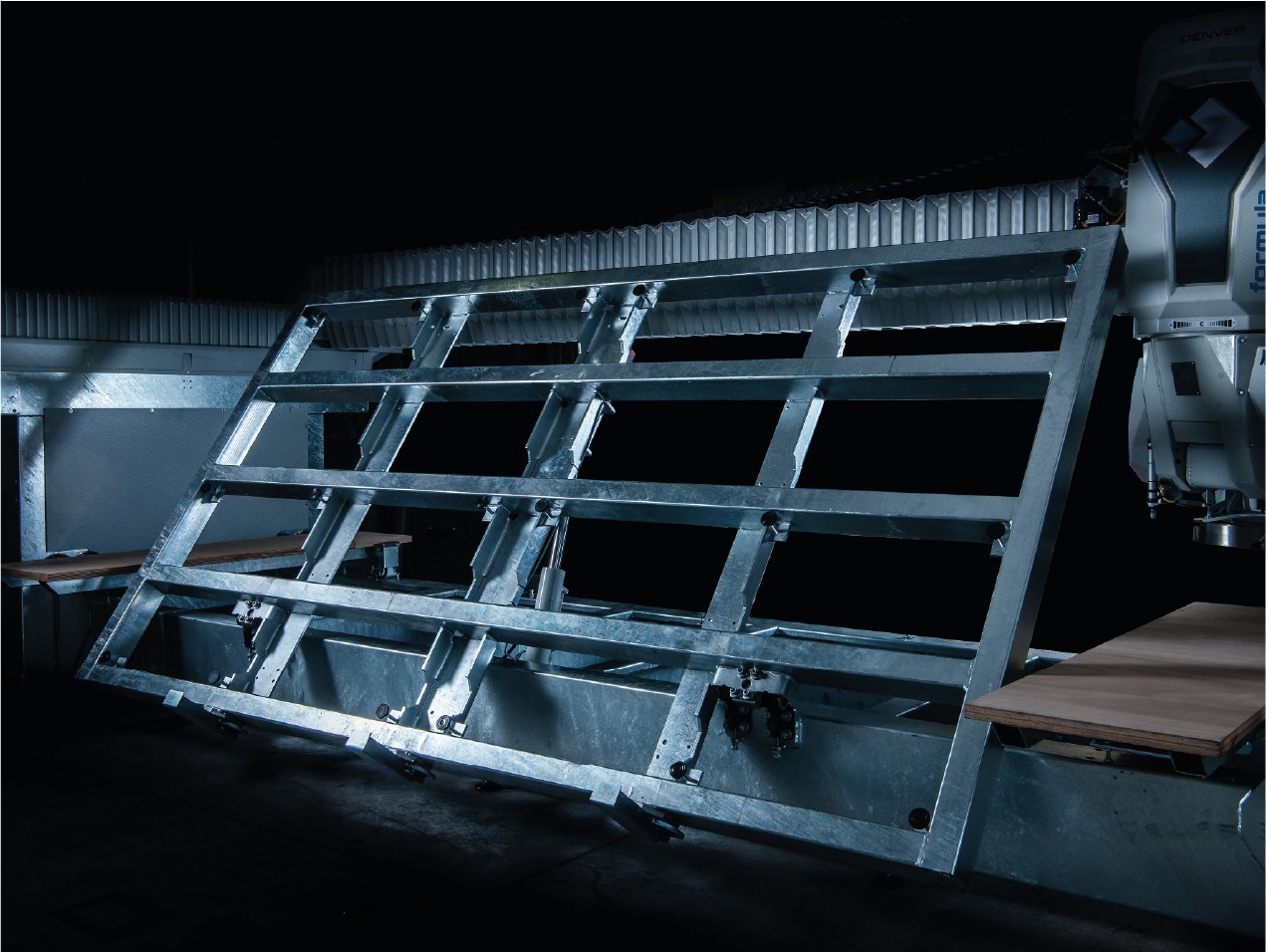

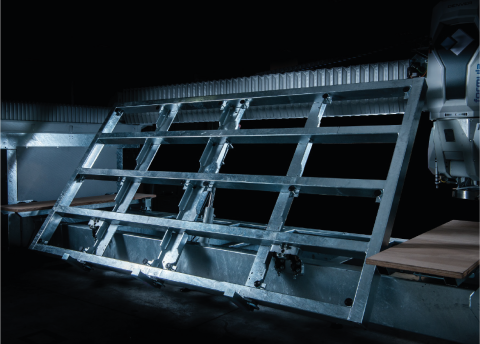

Tilting table

Hydraulically driven, for safe and easy loading of the slab. Tilt capacity 2500 kg /5500 lbs.

Logitouch software

To run semi- and fully automatic cut cycles and profiling, including DXF importability.

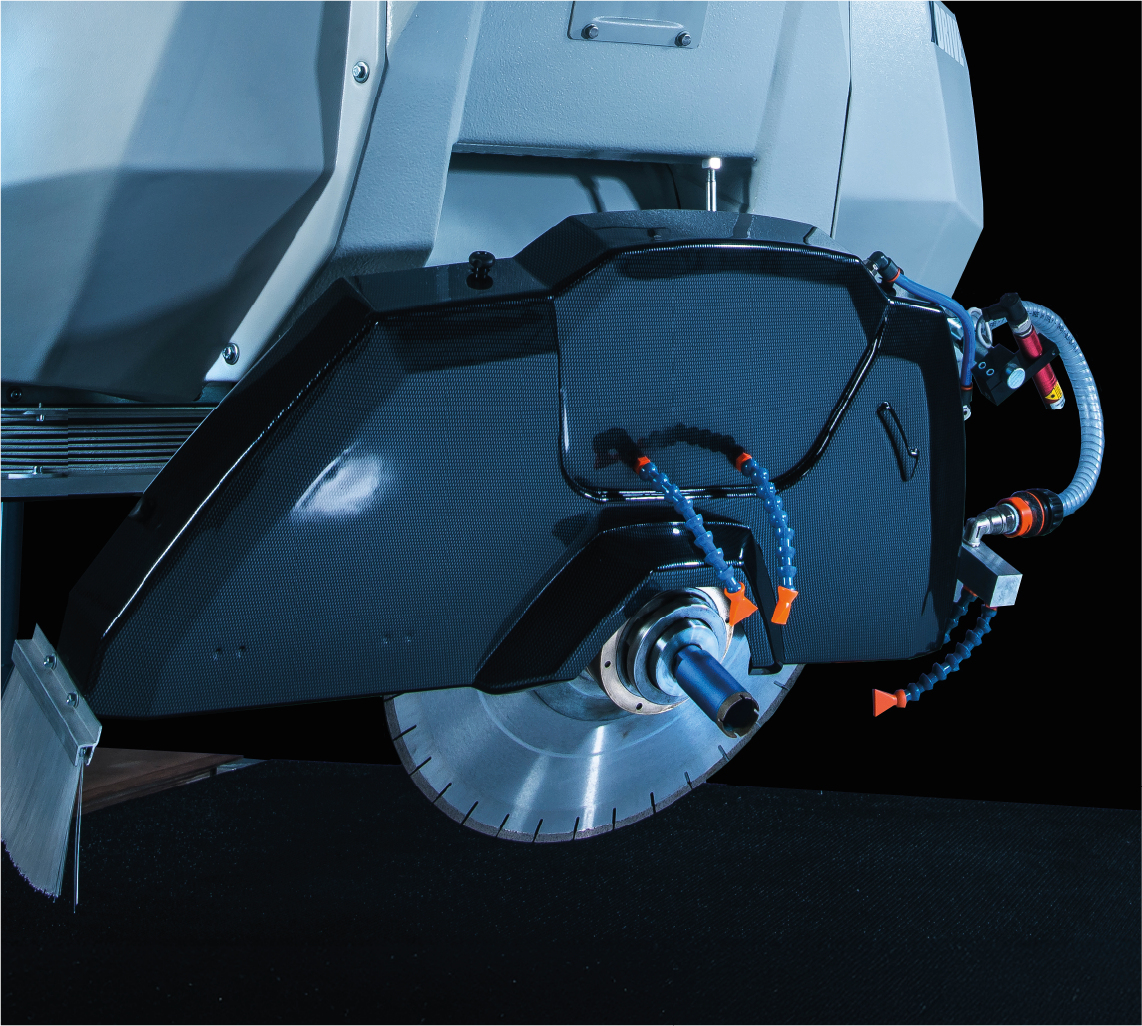

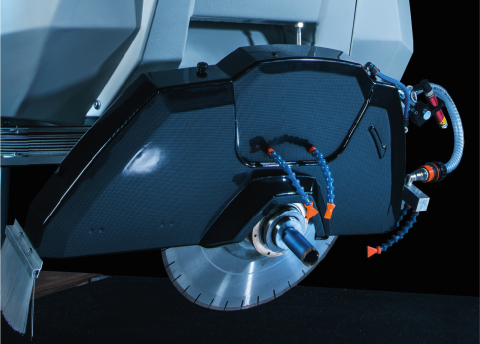

Interpolated auto head rotation

Interpolated auto head rotation for straight, diagonal and radius cuts.

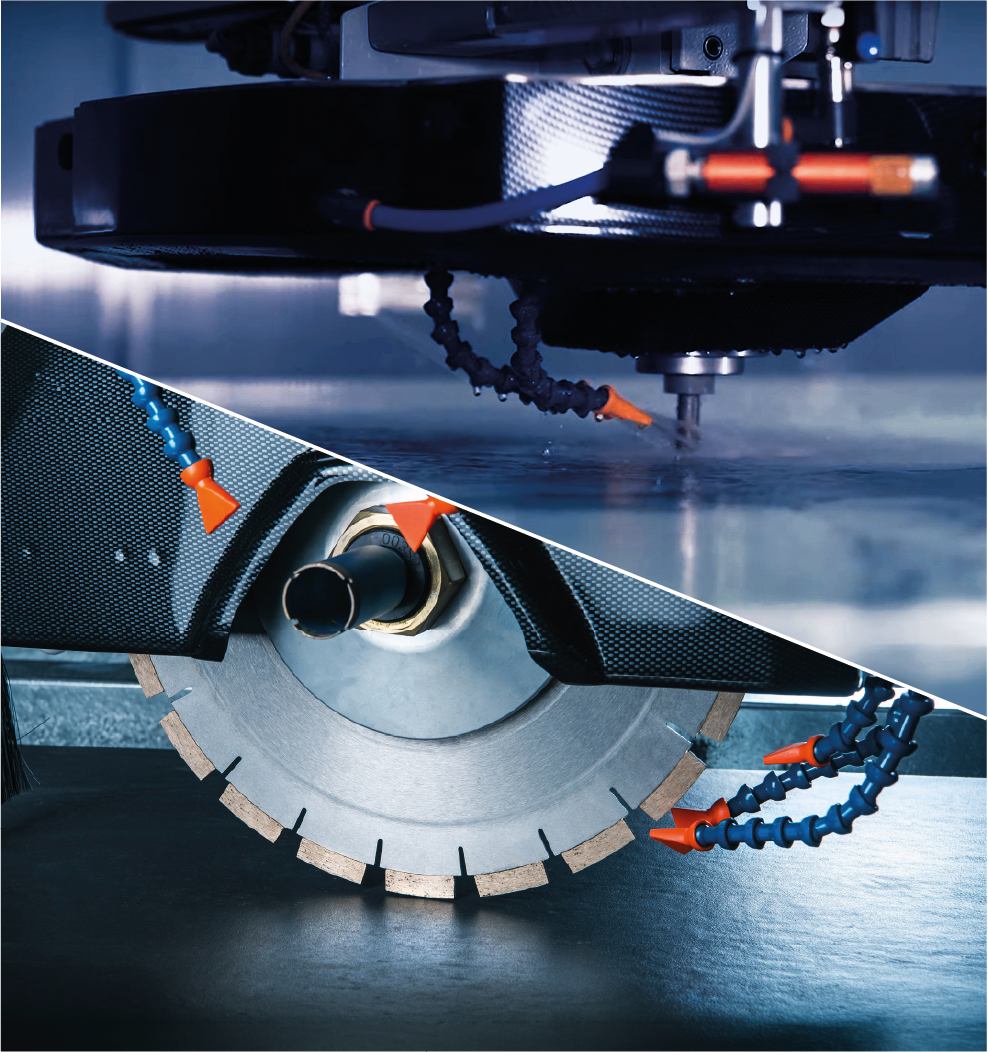

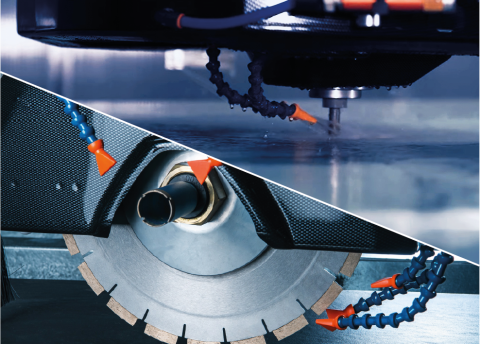

Kw 13 main spindle motor

With adjustable speed till 6000 rpm’s, complete with interchangeable Easyspin insert with 1/2 gas right thread. It allows the fitting…

Interpolated auto head inclination

Interpolated auto head inclination for perfect miter and tilted cuts.

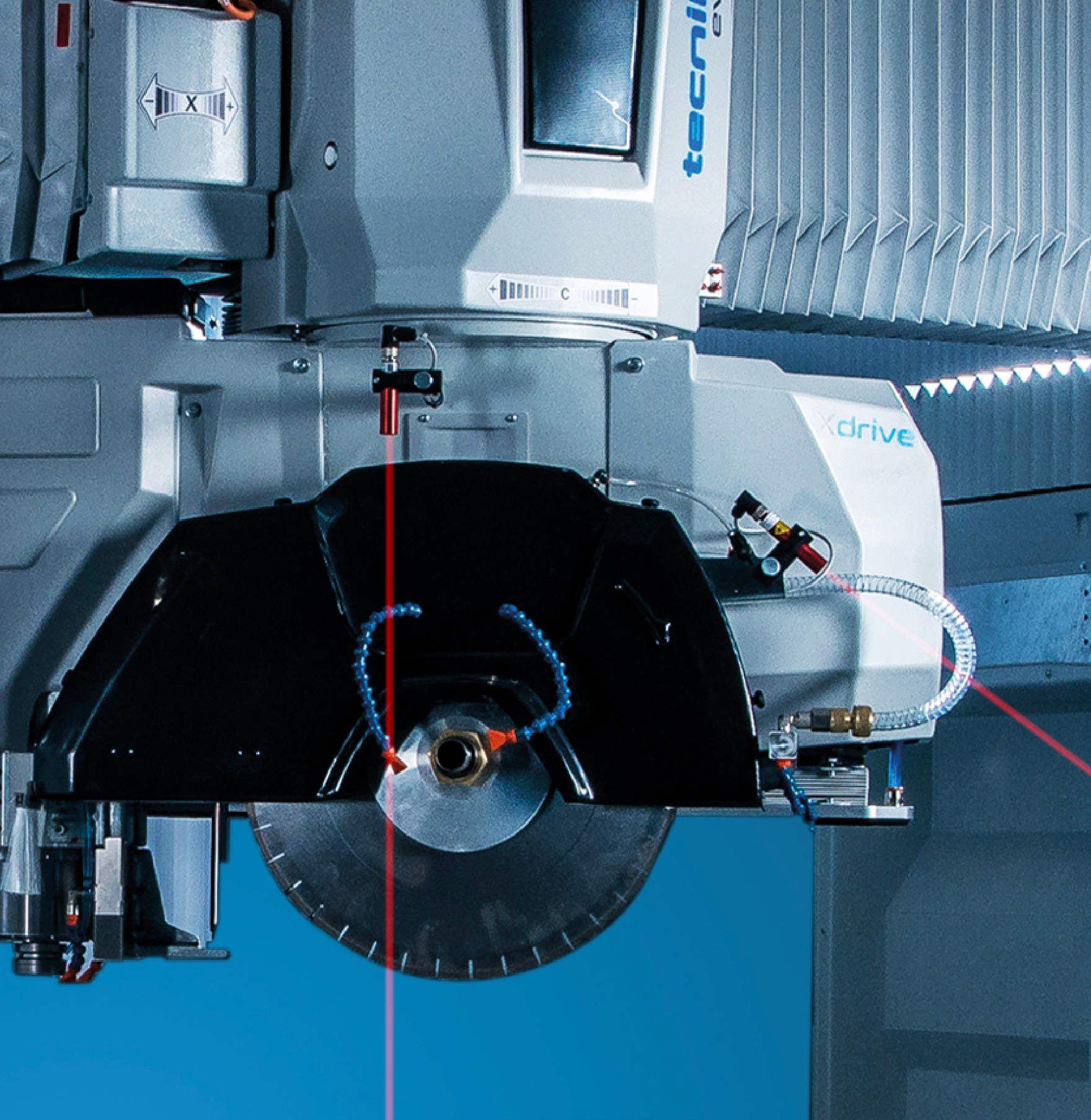

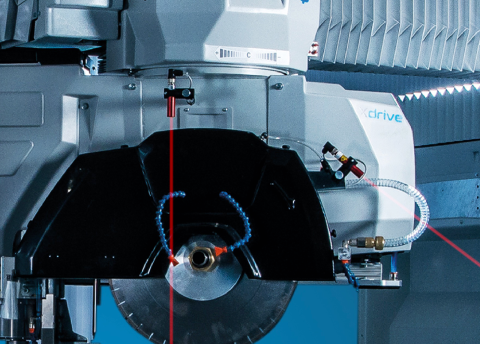

Cross laser

To ease the location and storage of the origin position and of the work piece dimensions and position, as well…

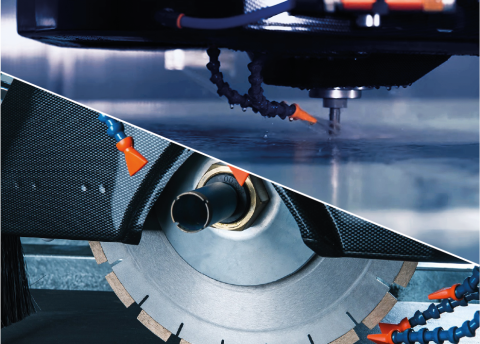

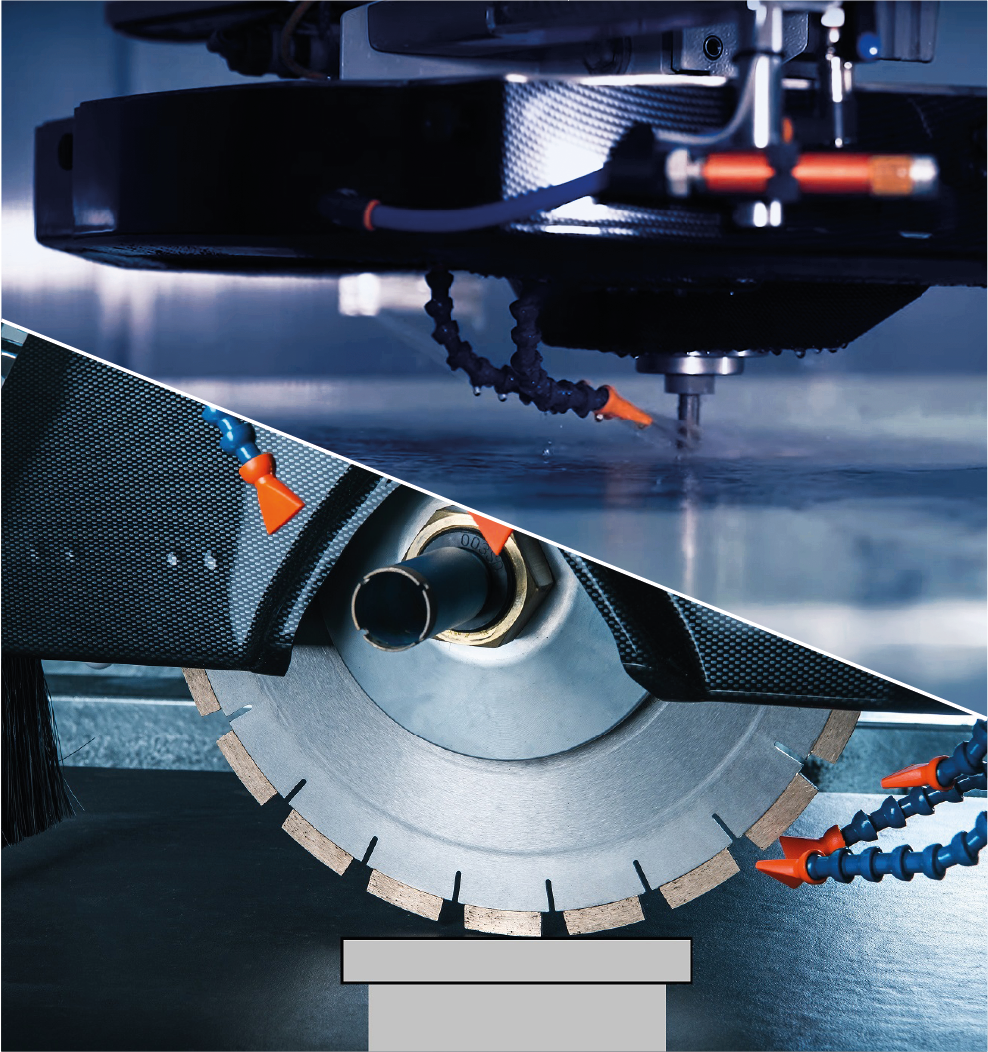

Auto touch probes

For slab thickness detection. For measuring disc diameter and tool lenght.

SKEMA

Processing

What you can do with this machine

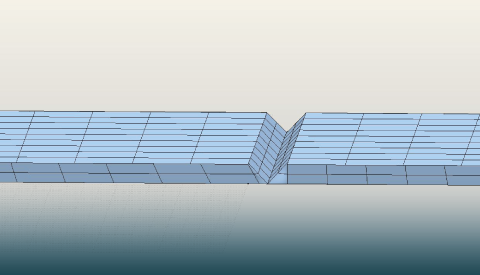

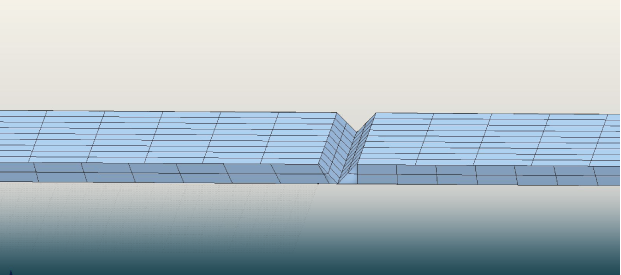

Tilted Cuts 45

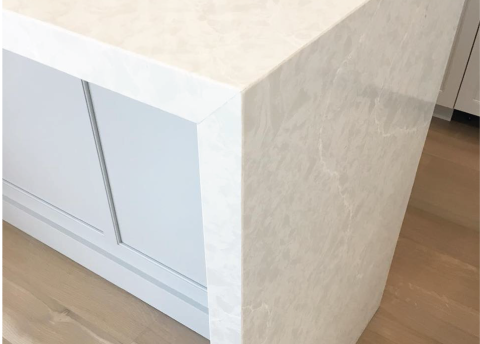

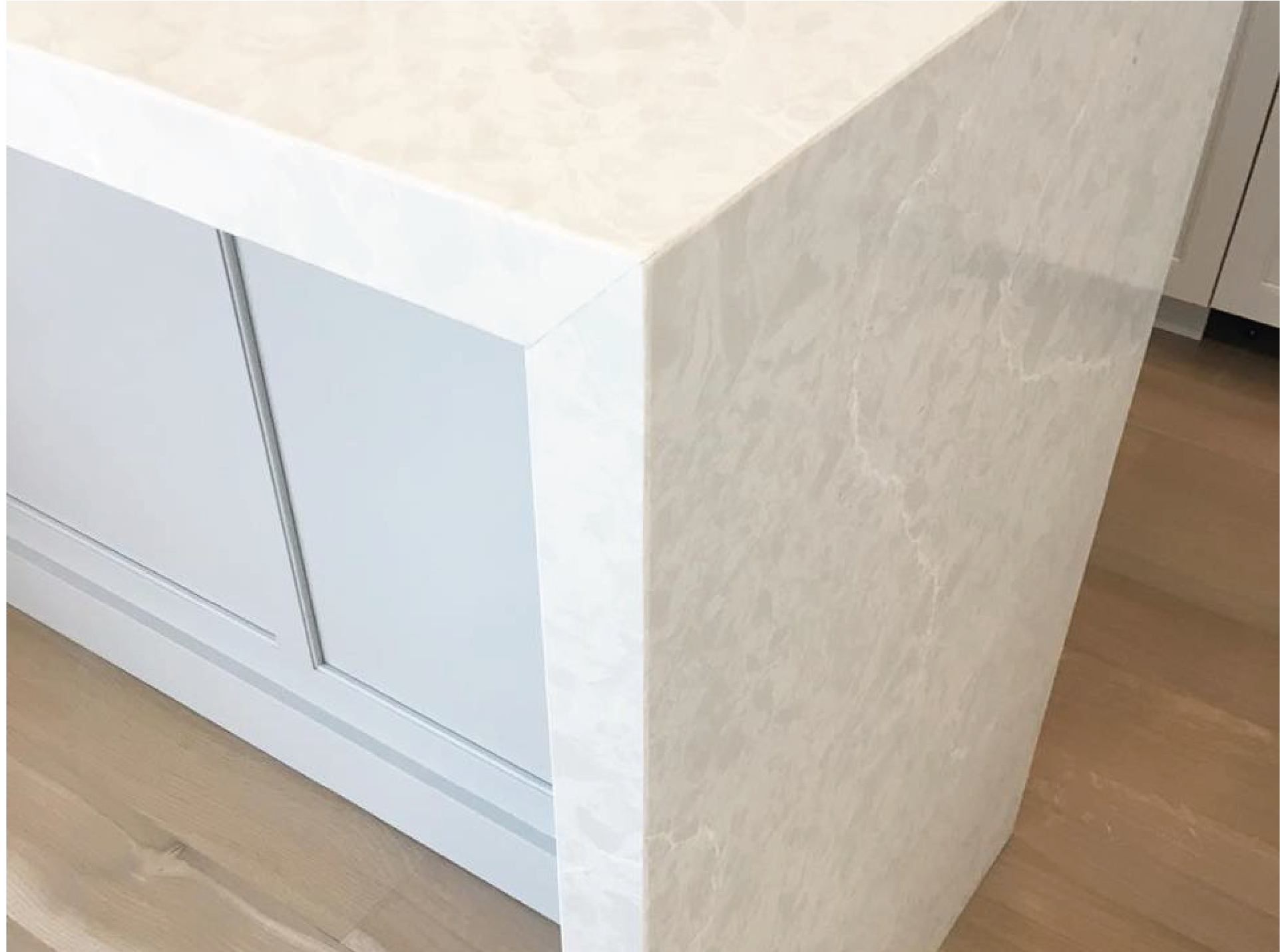

Vein Matching

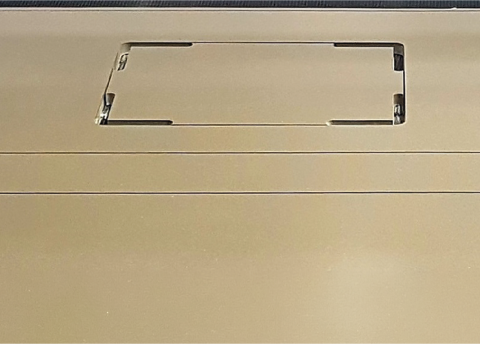

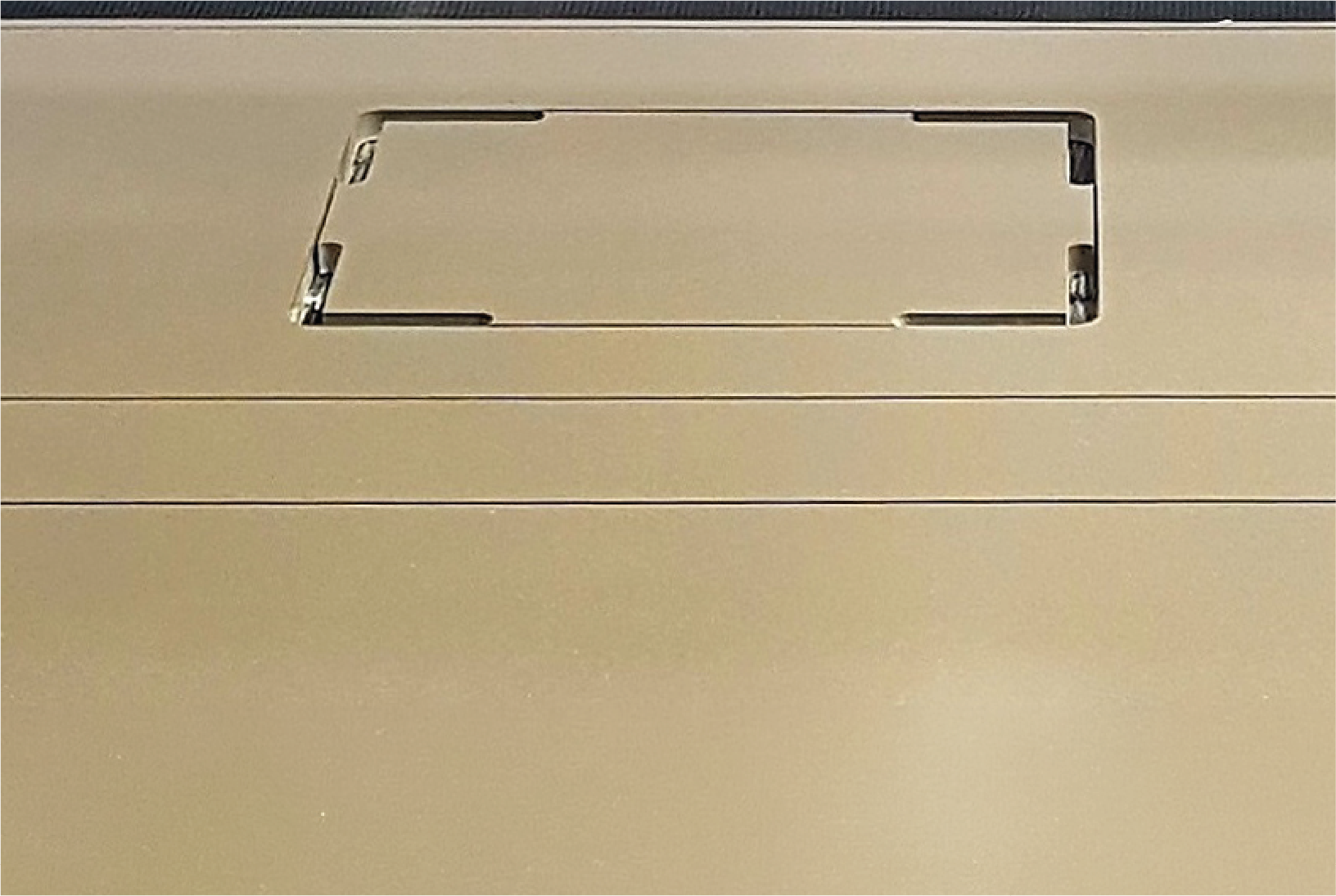

Sink and Corner Cut-outs

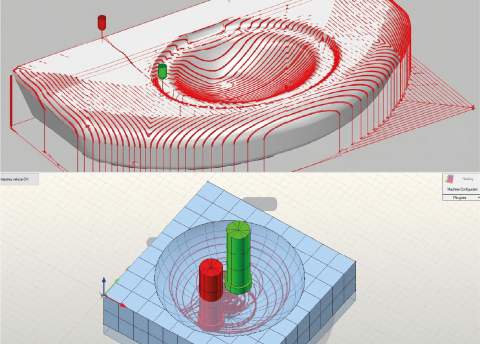

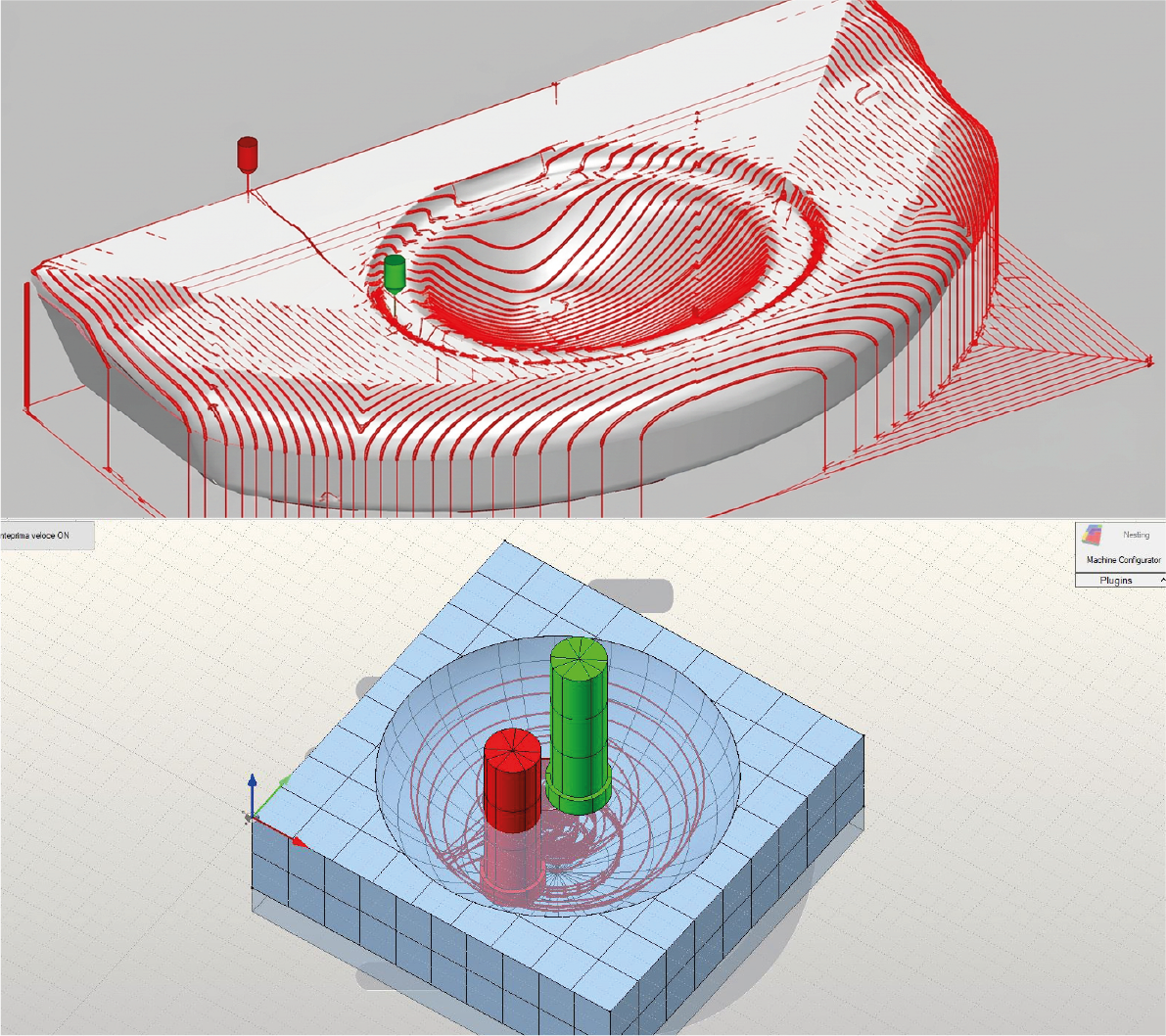

Solid Blocks

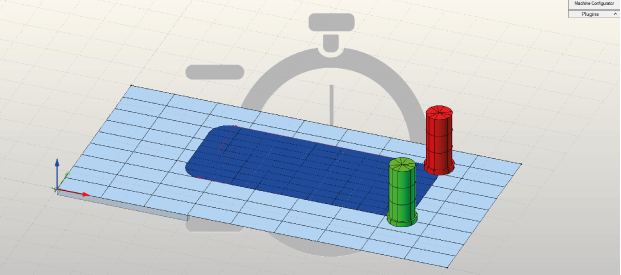

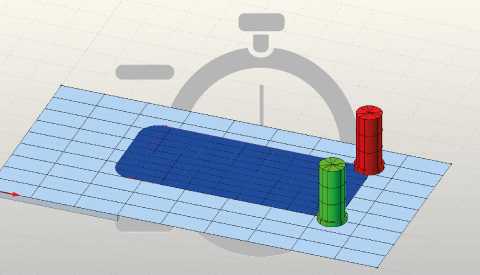

Surface Finishings

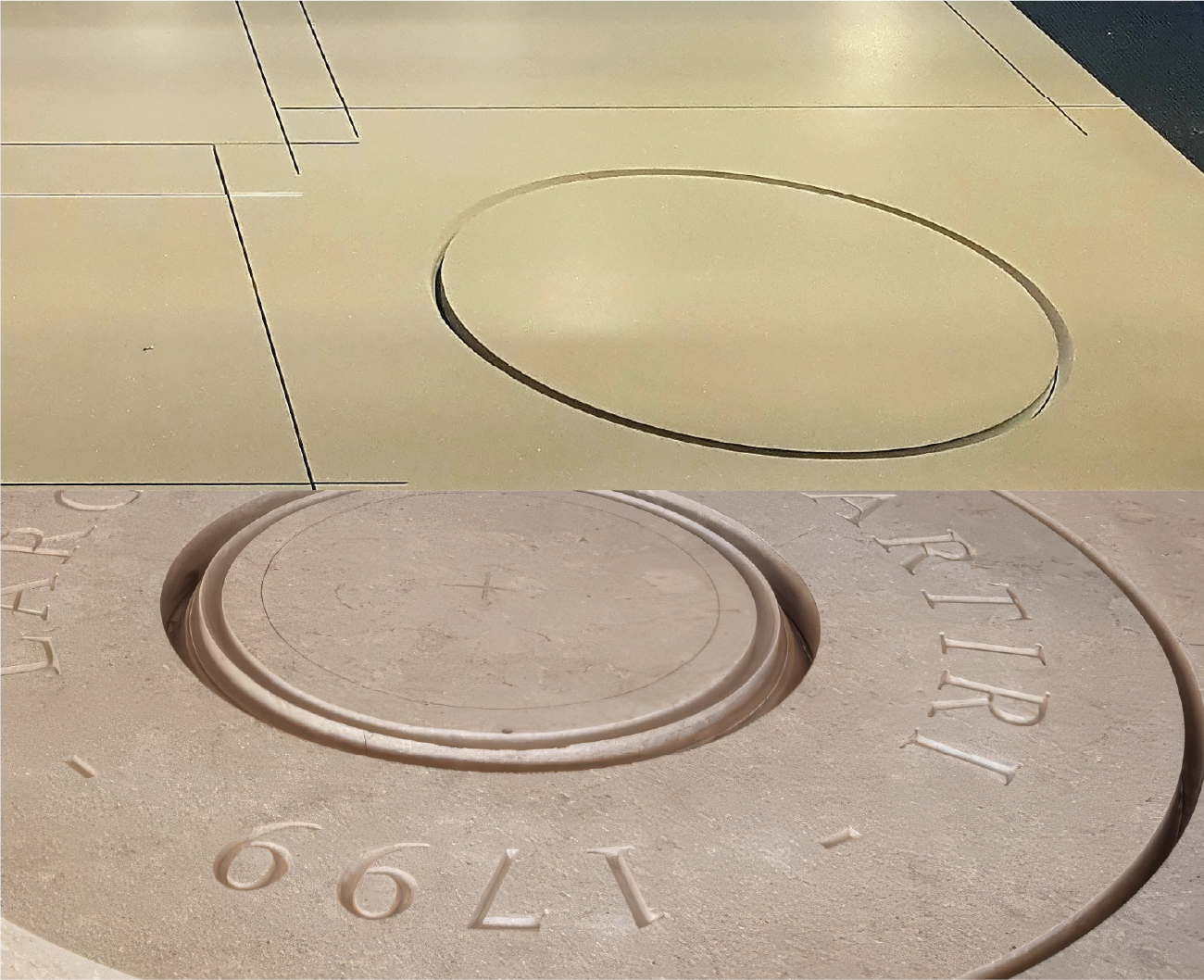

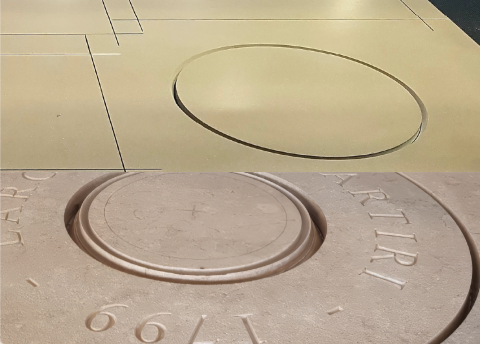

Radius Cuts Examples

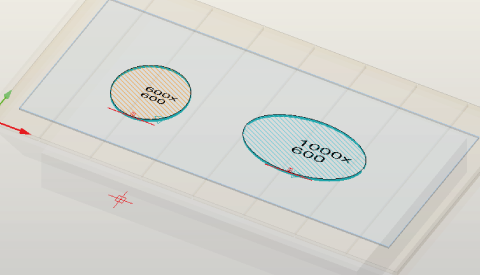

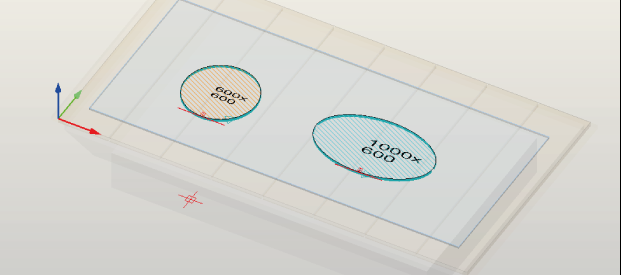

Radius and Circle Cuts

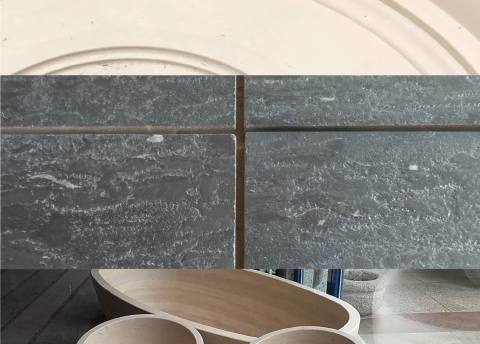

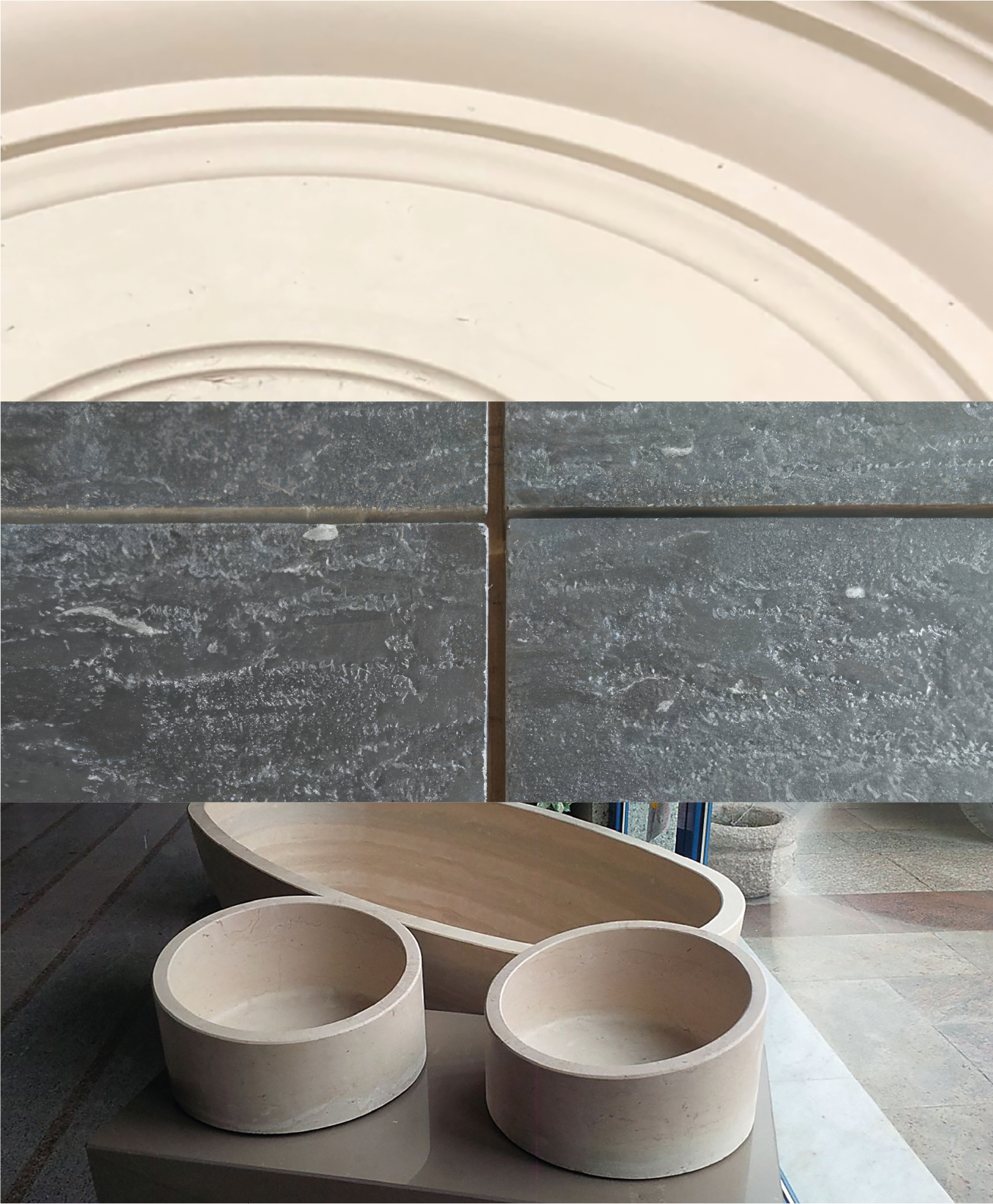

Linear Shaping

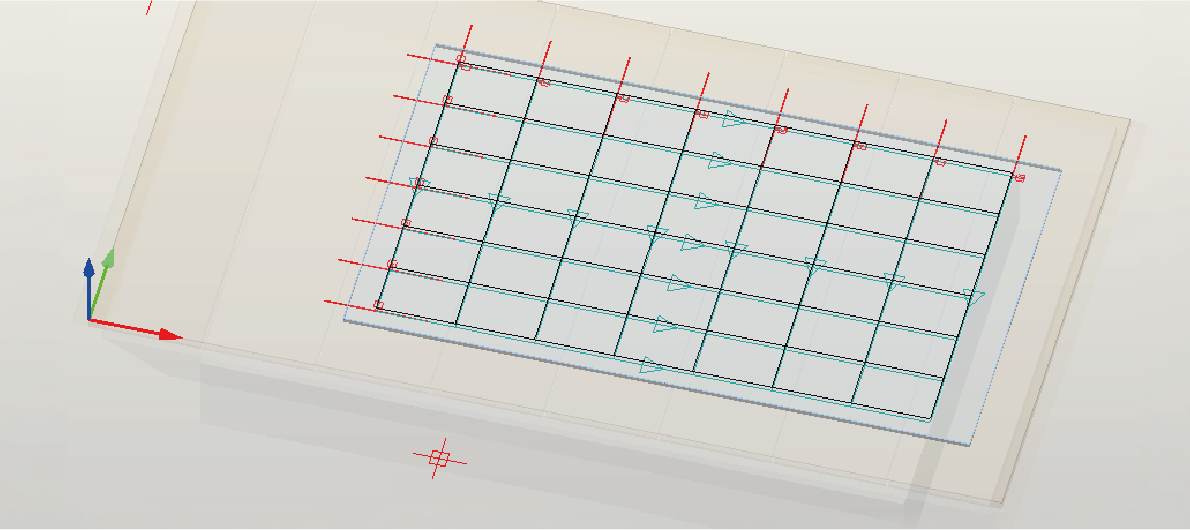

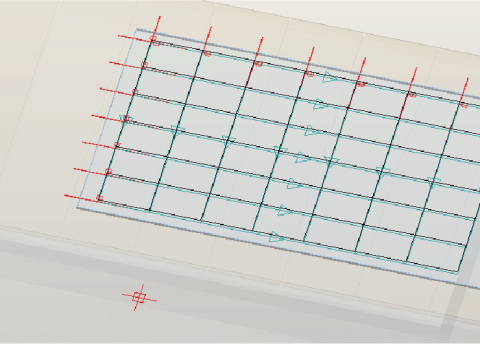

Manual Cuts

Right-angled cuts; diagonal cuts.

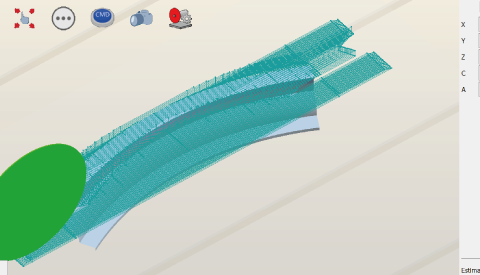

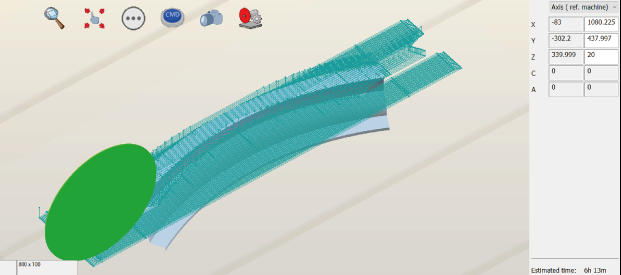

Moulding

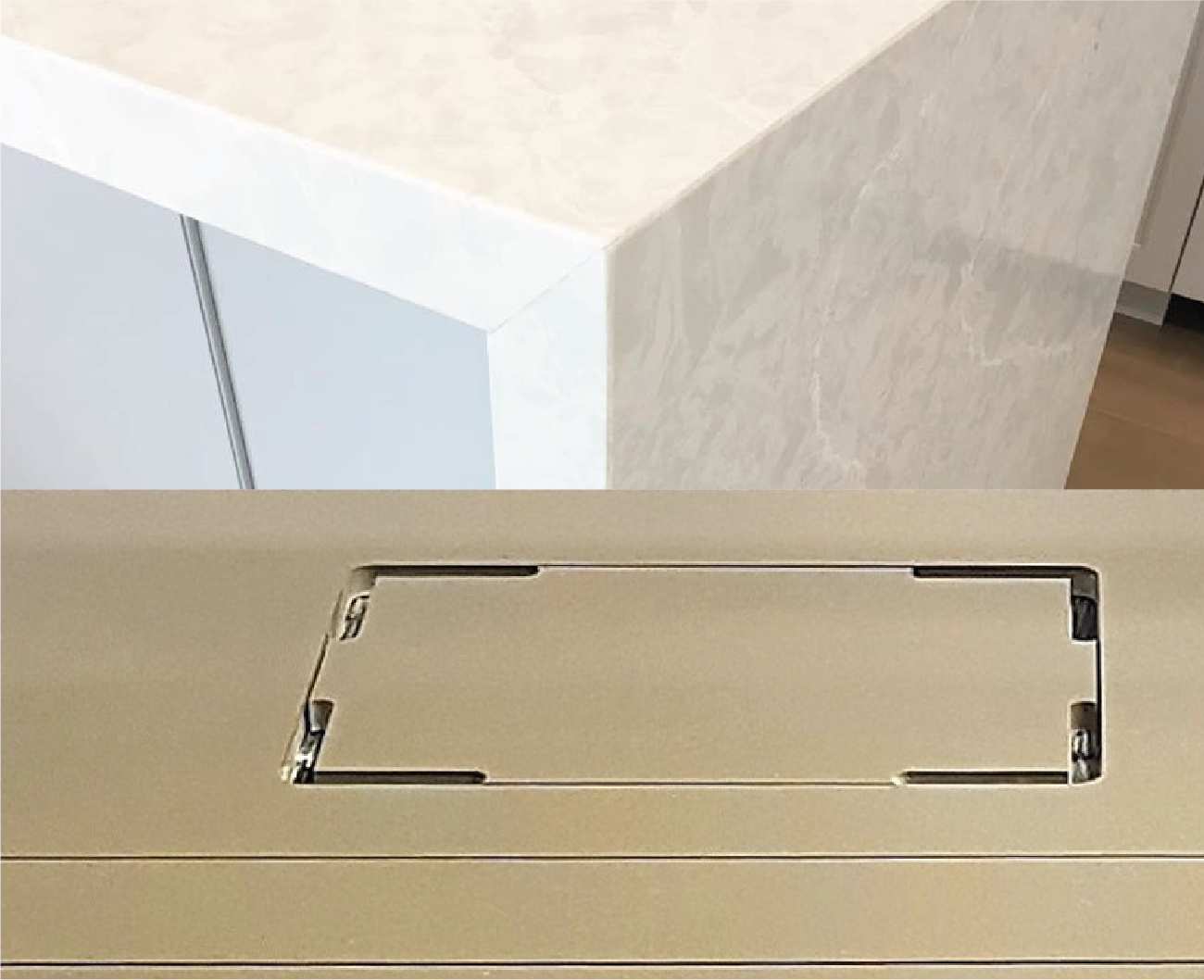

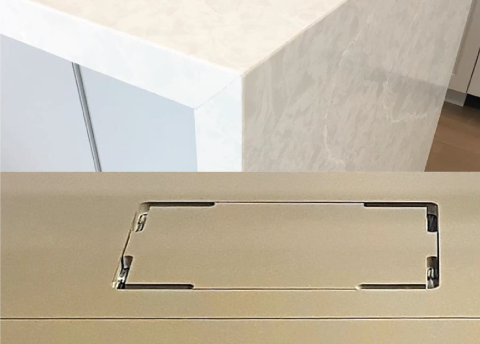

Automatic Sink Cut-outs

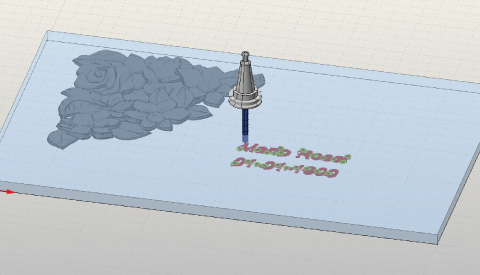

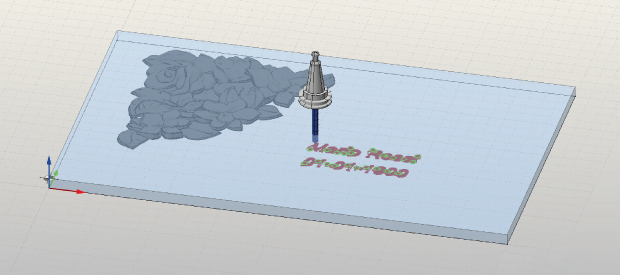

Engraving

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

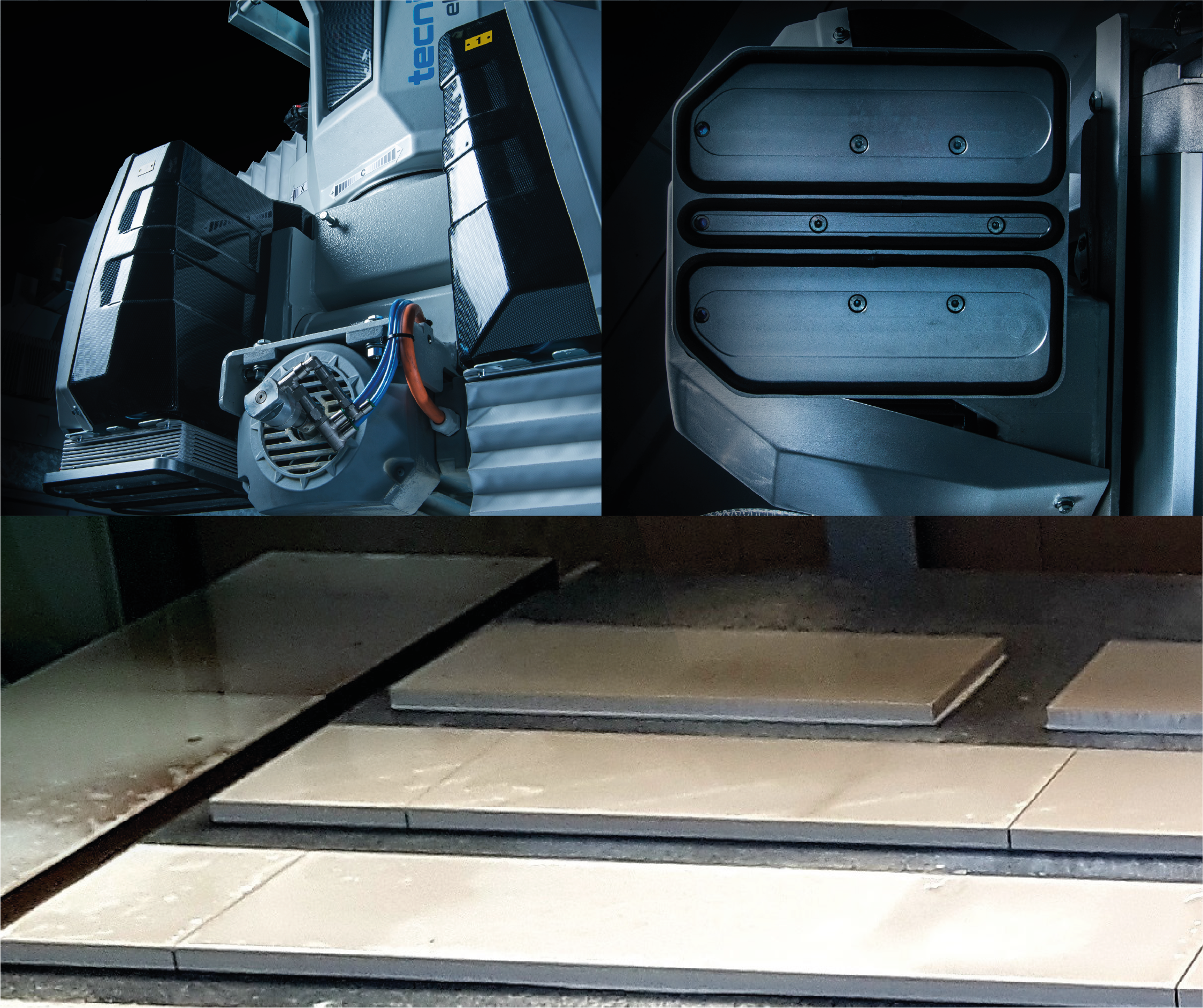

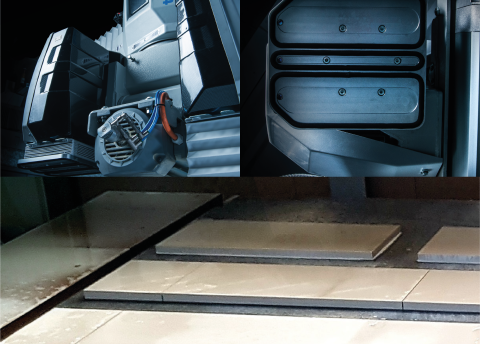

X-Motion System

Vacuum system with 2 independent cups, for cut cycle optimization through automatic placement of the pieces.

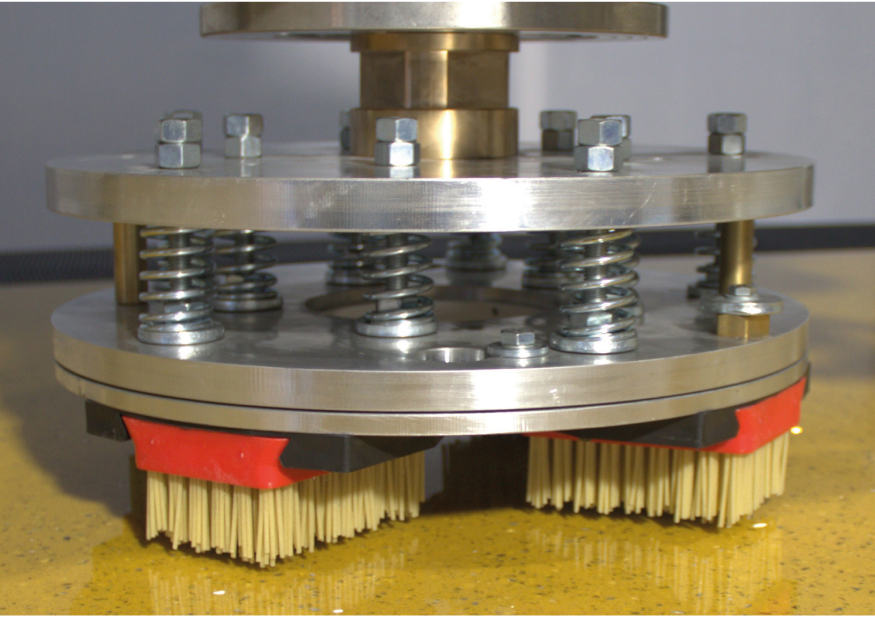

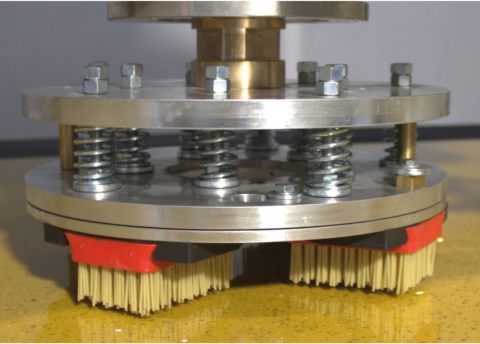

Spring-Loaded Head

Spring-Loaded head for surfaces honing and leathering.

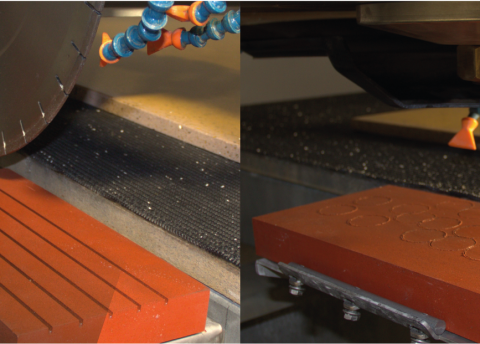

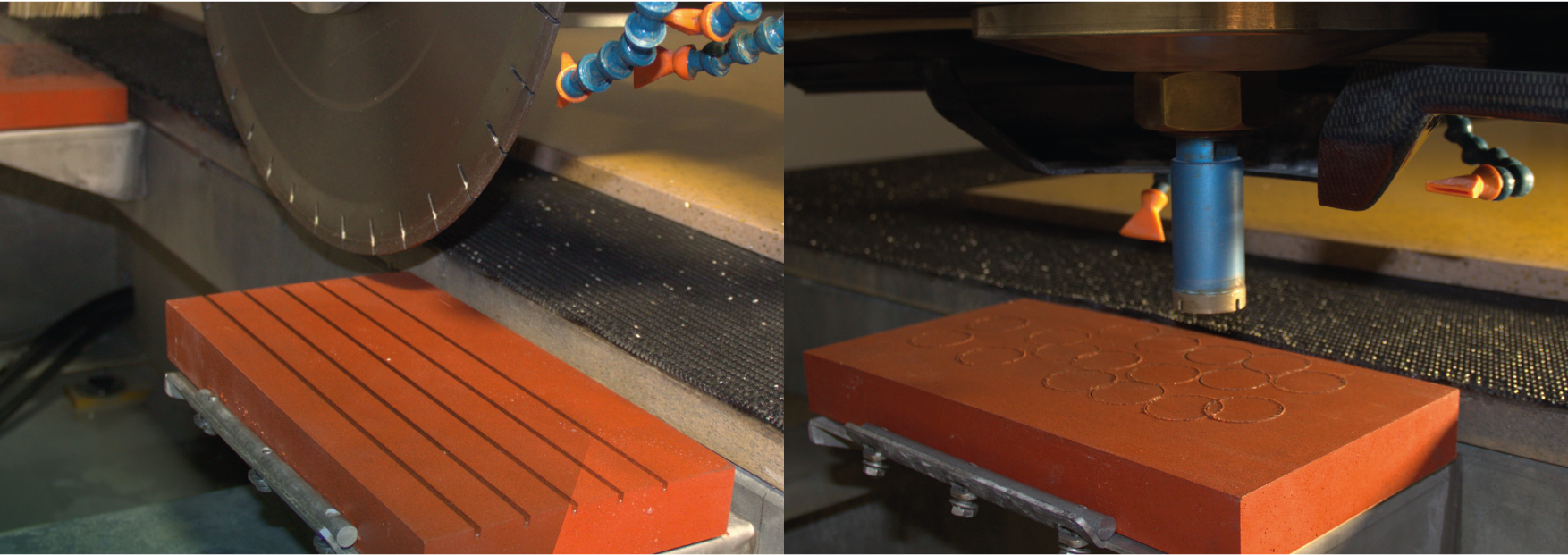

Redressing Devices for Disc and Core Drill

Redressing Devices for Disc and Core Drill including Automatic Management Software.

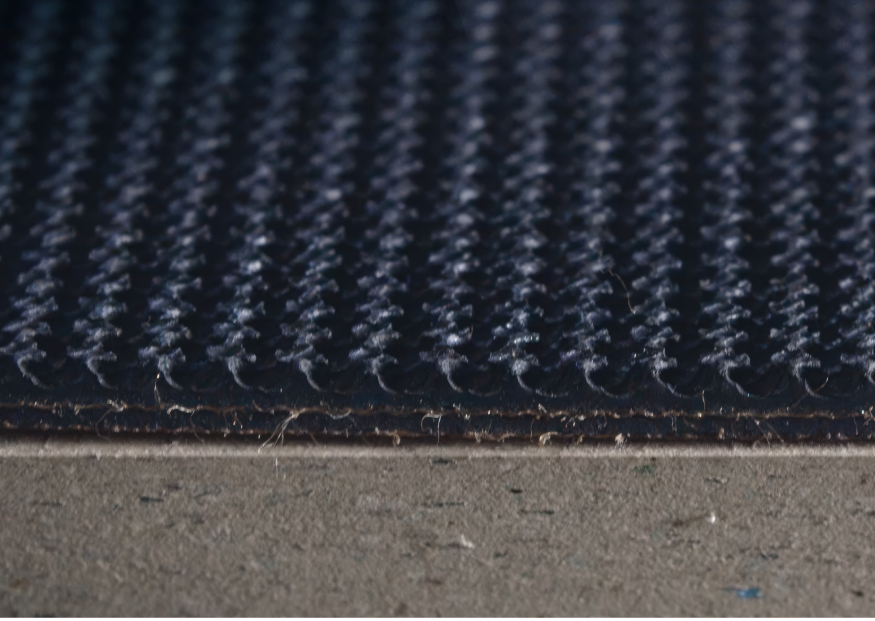

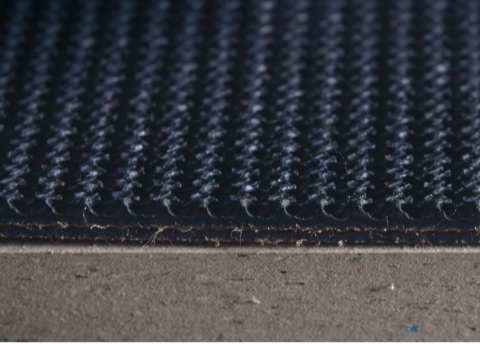

D-Grip Table Cover

Polyurethane table covered by rubber mat. High density. Not sensitive to moisture. Not decomposable. Mold resistant. Milled to ensure flatness…

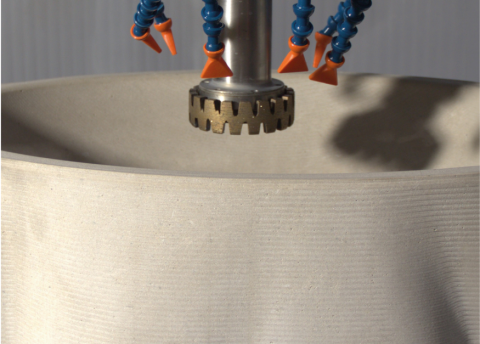

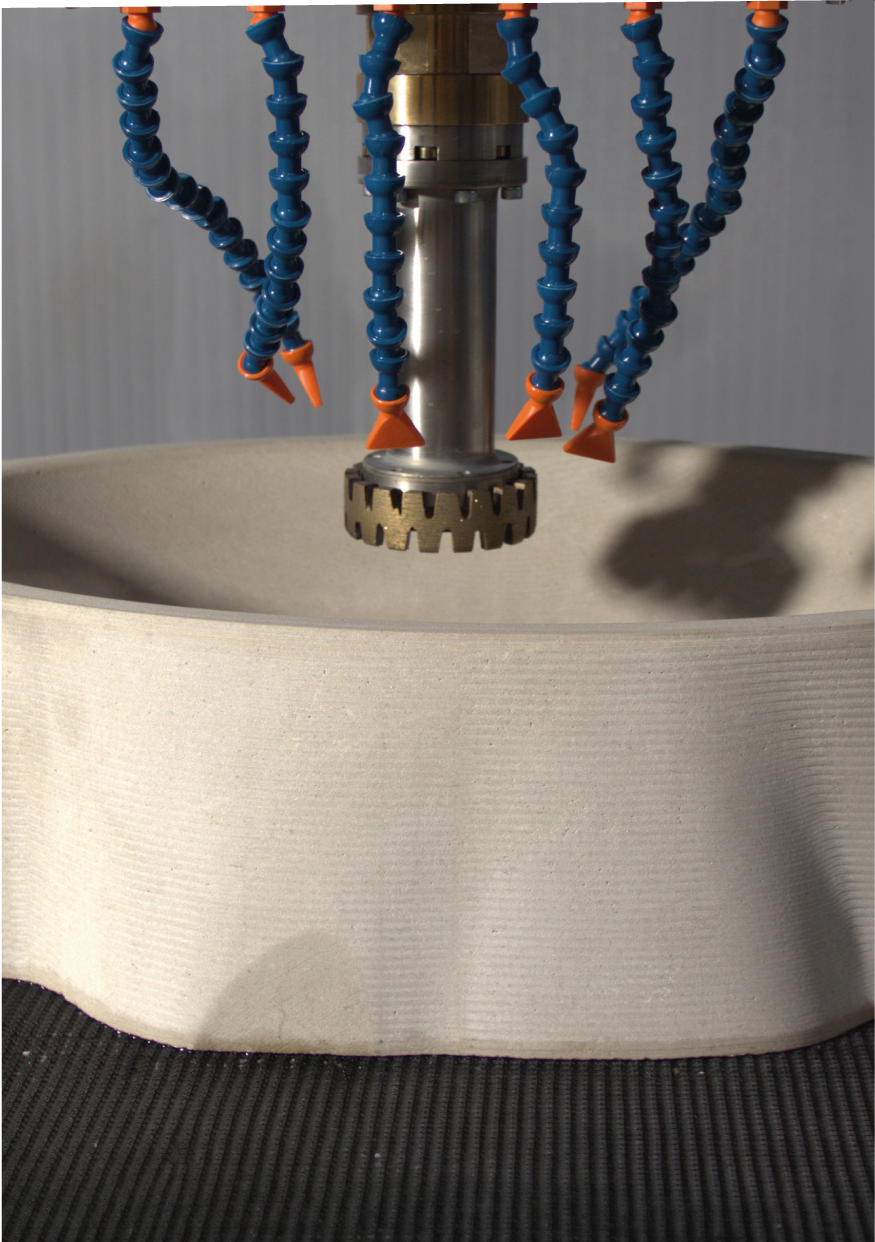

Adapter Device for Heavy-duty Tools

Adapter device for mounting heavy-duty tools.

SKEMA

Technologies

What you can do with this machine

Pro Tech Cad-Cam Software

For multi-tasking programming of the fully automatic working cycles, both from the machine control panel or from a separate PC.

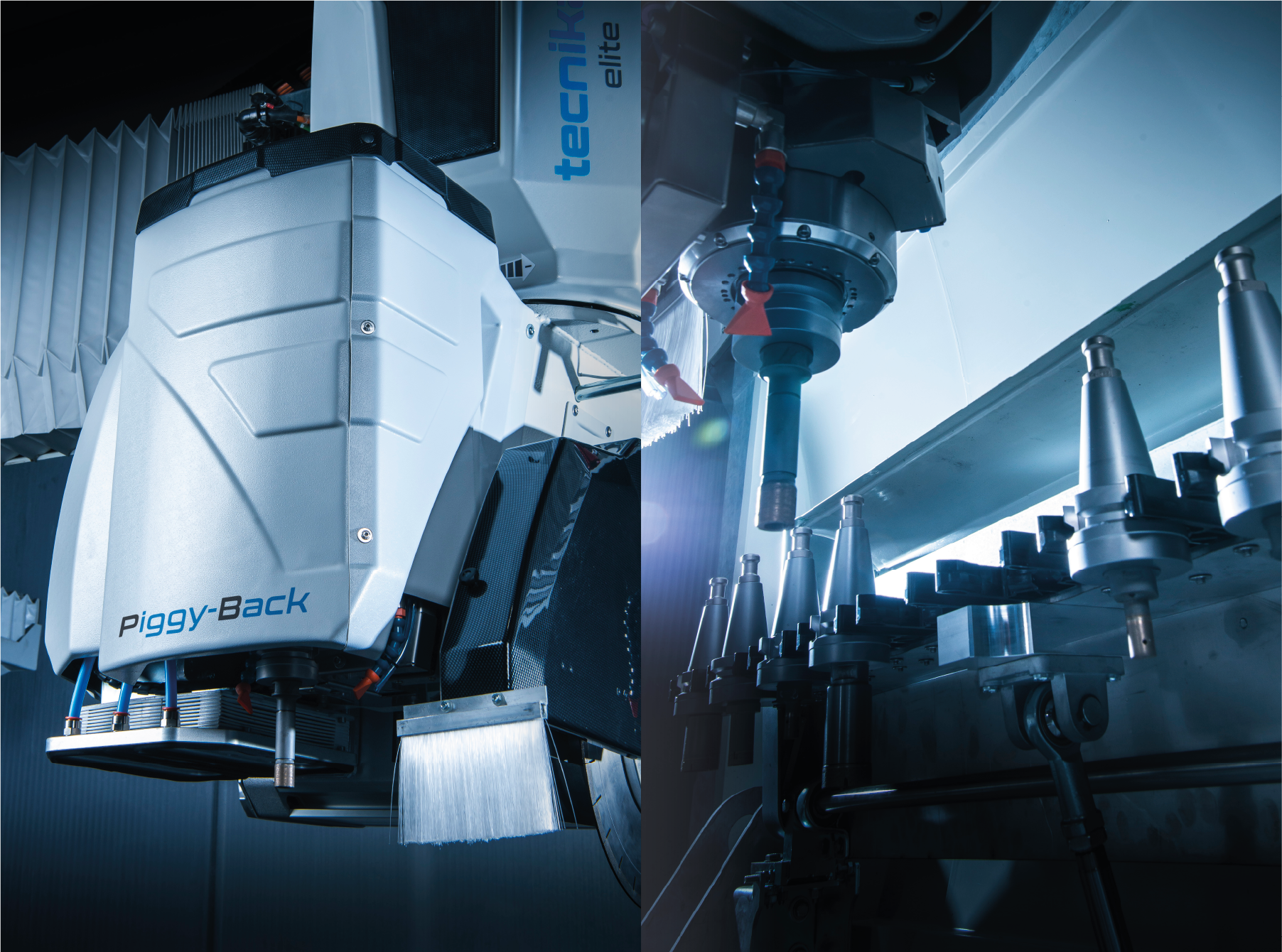

Pigg Back

Piggy-Back allows you to carry out typical CNC operations on your Denver bridge saw. Piggy-Back is an integrated system for…

Logitouch On Board Photo Software

For auto workpiece contouring, measuring and vein matching.

Performer Cad-Cam Software

DEN-AROUND

The system automatically guides the head around the workpiece, optimizing movements and making full use of the available working area.

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Dove posso trovare le schede tecniche complete dei prodotti?

Le schede tecniche di tutti i modelli sono disponibili nella sezione Prodotti del sito. Per documentazione dettagliata o disegni tecnici puoi anche contattare il nostro ufficio commerciale.


I software CAD-CAM sono inclusi nella fornitura della macchina?

Sì, le macchine Denver sono fornite con il software CAD-CAM dedicato già configurato. La licenza, la formazione all’uso e gli aggiornamenti sono inclusi nel pacchetto di fornitura standard.
